homebuildy.com A sill pan is a waterproof barrier installed beneath windows and doors to prevent water infiltration, directing moisture away from structural components. A drip edge, typically made of metal, is installed along the roof edge to guide water away from the fascia and protect the underlying wood from rot. Both components are essential for effective water management but serve different purposes in building envelope protection.
Table of Comparison
| Feature | Sill Pan | Drip Edge |
|---|---|---|
| Purpose | Prevents water infiltration at window and door sills | Directs water away from roof edges |
| Material | Aluminum, PVC, or metal flashing | Metal, typically aluminum or galvanized steel |
| Installation Area | Below window/door sills | Along roof edges and eaves |
| Primary Function | Protects building envelope from water damage at openings | Prevents roof water damage by channeling water off roof |
| Water Management | Channels water out from window/door openings | Guides water away from fascia and soffits |
| Integration | Used with flashing and sealants around openings | Installed beneath shingles and roofing materials |
| Cost | Moderate, varies by material and size | Low to moderate, depends on metal type and length |
| Importance | Critical for preventing leaks at window/door sills | Essential for protecting roof edges and maintaining longevity |
Sill Pan vs Drip Edge: Key Differences Explained
Sill pans are waterproof barriers installed beneath window sills to direct water away from the building's interior, preventing leaks and structural damage. Drip edges are metal flashing components attached to roof edges that guide rainwater away from the fascia and into the gutter system, protecting roof decking and preventing water damage. The key difference lies in their application and function: sill pans focus on window openings while drip edges manage roof drainage.
What Is a Sill Pan? Purpose and Benefits
A sill pan is a waterproof barrier installed beneath windows or doors to prevent water infiltration and direct moisture away from the building structure, protecting the subfloor and framing from rot and mold. Unlike a drip edge, which is primarily designed to control water runoff on roofs by directing rainwater away from fascia and soffits, sill pans provide critical protection at the window and door openings by creating a drainage plane. The benefits of sill pans include enhanced durability of building envelopes, reduced risk of water damage, and improved energy efficiency by maintaining a dry, sealed barrier against outdoor elements.
Understanding Drip Edges in Building Construction
Drip edges are metal flashings installed at the roof's edge to direct water away from the fascia and prevent water damage to the underlying structure, contrasting with sill pans that are installed beneath window and door sills to manage water infiltration at wall penetrations. Drip edges extend beyond the roofing material, facilitating proper drainage, while sill pans act as a secondary barrier to divert water that bypasses the exterior cladding. Correct installation of both components is critical for effective water management and building envelope protection in construction projects.
Moisture Protection: Sill Pan vs Drip Edge
Sill pans provide a critical moisture barrier by channeling water away from window and door openings, preventing water infiltration and damage beneath the frames. Drip edges primarily protect roof edges by directing water off shingles and away from fascia, but they do not offer direct moisture protection at window or door sills. For effective moisture protection at openings, sill pans excel by creating a continuous, watertight seal, whereas drip edges serve a complementary roofing function without addressing sill-specific water intrusion.
Installation Process: Sill Pan Compared to Drip Edge
The sill pan installation involves creating a waterproof barrier beneath the window or door frame to prevent water intrusion by directing moisture outside, typically requiring precise measurements and sealing with flashing tape or liquid sealant. In contrast, drip edge installation focuses on attaching metal flashing along the roof edges to channel water away from fascia and underlying roofing components, usually fastened with nails and requiring consistent alignment. Sill pans demand thorough integration with the building envelope for effective water drainage, whereas drip edges primarily protect roof edges from water damage and wind uplift.
Materials Used: Sill Pan vs Drip Edge Options
Sill pans are typically constructed from materials like PVC, aluminum, or stainless steel due to their durability and resistance to water infiltration around window and door openings. In contrast, drip edges are primarily made from galvanized steel, aluminum, or copper to provide effective water runoff protection at roof edges. Both components utilize corrosion-resistant metals, but sill pans prioritize waterproof barrier properties while drip edges focus on directing water away from the structure.
Cost Analysis: Sill Pan vs Drip Edge
A sill pan generally involves higher upfront costs compared to a drip edge due to its complex installation and materials designed for enhanced water management around window and door openings. Drip edges are more cost-effective, offering basic protection by directing water away from the roof edges and are simpler to install. For residential projects prioritizing budget constraints, drip edges provide a lower initial investment, while sill pans deliver superior long-term water resistance that may reduce future repair expenses.
Common Applications: Where to Use Each Product
Sill pans are primarily installed beneath exterior window and door frames to prevent water infiltration and direct moisture away from the structural framing. Drip edges are typically used along roof edges and eaves to guide water away from fascia and protect underlying roofing components. Use sill pans in wall openings requiring waterproofing and drip edges on roof perimeters for effective water management.
Pros and Cons: Sill Pan vs Drip Edge
Sill pans provide a watertight barrier beneath window and door openings, effectively preventing water infiltration and damage to framing materials, making them ideal for critical moisture control in wall assemblies. Drip edges, installed at roof edges, primarily direct water away from fascia and prevent water damage to roof sheathing, but they do not offer the same level of protection in wall openings as sill pans. While sill pans are essential for window and door rough openings to manage leakage, drip edges are crucial for roofing systems but lack the sealing capabilities needed for wall penetration points.
Which Is Better for Your Project: Sill Pan or Drip Edge?
Sill pans provide superior water management by directing moisture away from window and door openings, making them essential for preventing water intrusion in framed wall systems. Drip edges, commonly used on roofs, protect eaves and fascia by channeling rainwater away to prevent wood rot but offer limited protection around openings. For window and door installations, sill pans are generally better suited due to their tailored design for sealing and drainage, while drip edges serve best as roofing accessories.

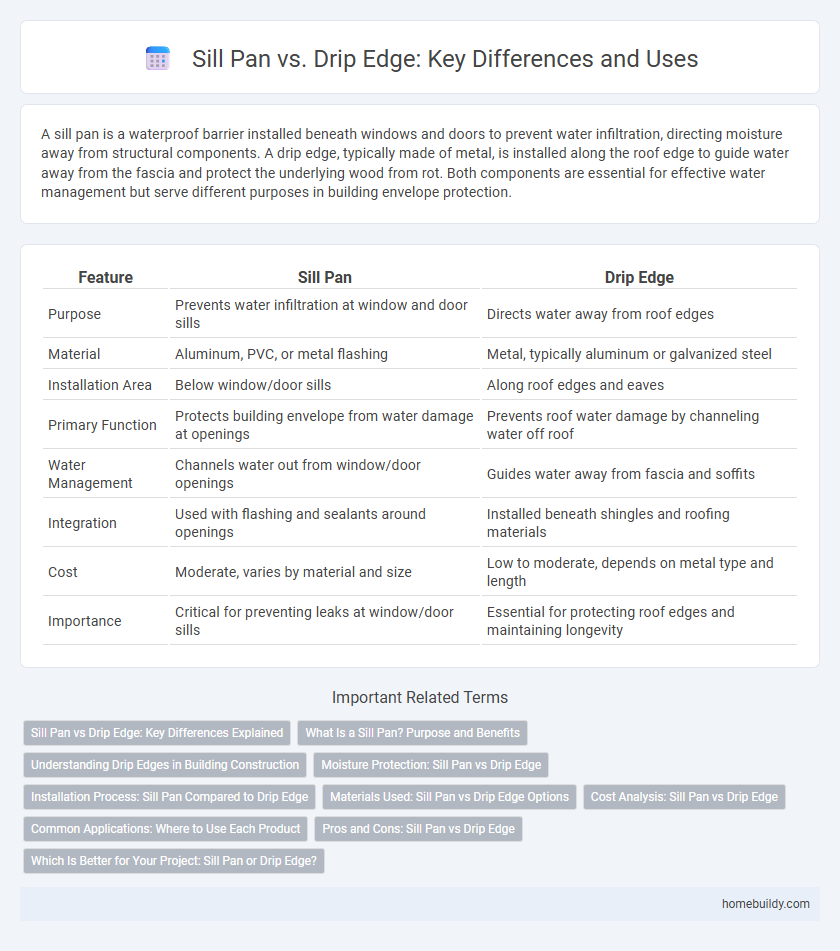

sill pan vs drip edge Infographic
