homebuildy.com A sill pan is a protective flashing installed at the base of window or door openings to direct water away and prevent moisture intrusion, while a vapor barrier is a material applied to walls, floors, or ceilings to control moisture diffusion within building assemblies. The sill pan focuses on liquid water management at specific penetration points in the building envelope, whereas the vapor barrier manages vapor transmission throughout structural components. Both are essential in moisture control strategies but serve distinct roles in maintaining a building's durability and indoor air quality.
Table of Comparison
| Feature | Sill Pan | Vapor Barrier |
|---|---|---|
| Primary Function | Prevents water intrusion at window and door openings | Stops moisture vapor from penetrating walls or floors |
| Material | Rigid plastic, metal, or waterproof membranes | Plastic sheets, typically polyethylene |
| Installation Location | Under windows, doors, and sill plates | Inside walls, floors, or ceilings behind drywall or insulation |
| Water Resistance | High - directs water out | Moderate - blocks vapor, not liquid water |
| Purpose | Moisture management and structural protection | Moisture control to reduce mold and decay |
| Essential For | Windows, doors, framed openings | Basements, crawl spaces, exterior walls |
Understanding Sill Pans and Vapor Barriers
Sill pans are specialized flashing components installed beneath door and window frames to direct water away from the structure, preventing water intrusion and rotting. Vapor barriers, typically polyethylene sheets, are designed to control moisture diffusion through building assemblies, reducing condensation and mold growth. Differentiating between sill pans and vapor barriers is critical for effective moisture management, as sill pans handle bulk water drainage while vapor barriers manage vapor transmission.
Key Functions: Sill Pan vs Vapor Barrier
Sill pans act as a critical drainage system that prevents water infiltration at the base of window and door openings, directing moisture away from the building structure. Vapor barriers primarily restrict the movement of moisture vapor through walls, floors, and ceilings to control condensation and improve energy efficiency. While sill pans manage liquid water intrusion, vapor barriers focus on controlling vapor diffusion, making both essential but functionally distinct components in building envelope moisture management.
Material Differences Between Sill Pans and Vapor Barriers
Sill pans are typically constructed from rigid materials such as PVC, aluminum, or stainless steel designed to direct water away from window and door openings, while vapor barriers are made from flexible plastic films like polyethylene to prevent moisture diffusion through walls or floors. The rigidity of sill pans ensures structural support and effective water drainage, whereas vapor barriers prioritize moisture control without providing physical reinforcement. These material differences are critical for their distinct functions in building envelope systems.
Installation Procedures: Sill Pan Compared to Vapor Barrier
Sill pan installation involves precise fitting and sealing to direct water away from the sill and prevent moisture intrusion, typically requiring flashing tape or sealant applied over the rough opening before window or door installation. Vapor barrier installation, by contrast, focuses on creating a continuous membrane to prevent vapor diffusion through walls, usually positioned on the warm side of the insulation and sealed at seams and penetrations. While sill pans prioritize liquid water management at openings, vapor barriers are designed to control moisture vapor within wall assemblies, resulting in distinct placement and sealing techniques during construction.
Moisture Management: Sill Pan Versus Vapor Barrier Performance
A sill pan provides superior moisture management by directing water away from the window or door opening, preventing water intrusion and protecting structural components. In contrast, a vapor barrier primarily controls vapor diffusion to reduce condensation but does not offer protection against bulk water infiltration. Effective moisture management requires installing a sill pan to block liquid water while complementing it with a vapor barrier to control vapor transmission.
Energy Efficiency: Sill Pans and Vapor Barriers in Building Envelopes
Sill pans enhance energy efficiency by preventing water infiltration at window and door openings, thereby reducing the risk of mold and air leaks that compromise insulation performance. Vapor barriers control moisture vapor transmission within walls, maintaining the integrity of insulation and preventing condensation-related energy loss. Together, sill pans and vapor barriers contribute to a tighter building envelope, optimizing thermal performance and reducing heating and cooling costs.
Durability and Longevity: Sill Pan vs Vapor Barrier
Sill pans offer superior durability and longevity compared to vapor barriers by providing a rigid, waterproof shield that protects window and door openings from water intrusion and structural damage over time. Unlike vapor barriers, which primarily control moisture diffusion and can degrade or puncture, sill pans maintain their integrity under pressure and environmental stress, ensuring lasting protection against leaks. This enhanced durability significantly extends the lifespan of building components by preventing rot, mold, and deterioration around vulnerable sill areas.
Cost Analysis: Sill Pan and Vapor Barrier Solutions
Sill pans generally incur higher upfront installation costs compared to vapor barriers due to their durable materials and structural benefits in preventing water intrusion. Vapor barriers, while more cost-effective initially, primarily address moisture control without providing the same level of protection against water damage at window sills. Evaluating long-term expenses reveals sill pans reduce potential repair costs linked to water damage, making them a cost-efficient solution for moisture management in building envelopes.
Common Applications: Choosing Sill Pan or Vapor Barrier
Sill pans are commonly used in window and door installations to prevent water infiltration and direct moisture away from structural components, ensuring long-term durability in basements, crawl spaces, and exterior walls. Vapor barriers primarily control moisture vapor diffusion through walls and floors, making them essential in humid climates to reduce condensation and mold growth inside building envelopes. Choosing between a sill pan and a vapor barrier depends on whether the primary concern is liquid water intrusion (sill pan) or vapor moisture control (vapor barrier) in residential or commercial construction projects.
Best Practices: When to Use Sill Pans vs Vapor Barriers
Sill pans serve as a critical waterproofing component installed beneath window and door frames to direct water away from the structure, preventing moisture intrusion at vulnerable openings. Vapor barriers, typically plastic sheets, control moisture migration through walls and floors, reducing the risk of condensation and mold growth within building assemblies. Best practices dictate using sill pans in areas prone to water infiltration around openings, while vapor barriers are essential in controlling overall moisture vapor diffusion in walls and floors, ensuring optimal building envelope performance.

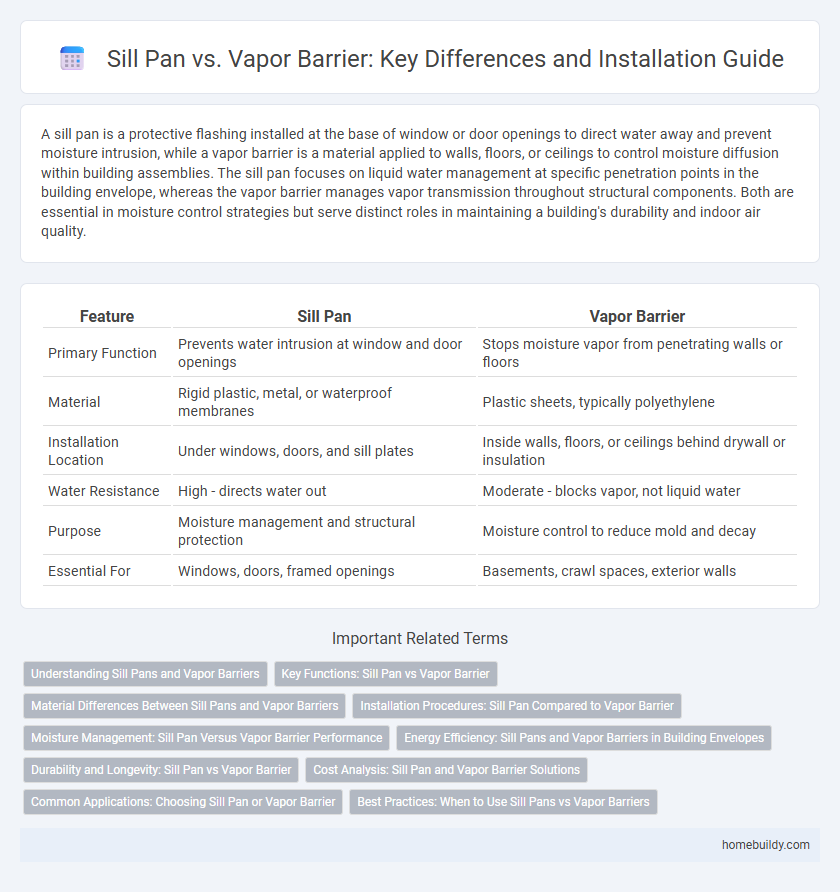

sill pan vs vapor barrier Infographic
