homebuildy.com A sill pan is a waterproof barrier installed beneath window sills to prevent water infiltration and direct moisture away from the wall structure, enhancing the durability of the window assembly. Metal flashing, typically made from aluminum or galvanized steel, serves as a protective barrier installed around openings like windows and doors to divert water away and prevent leaks. While both components manage water intrusion, sill pans focus on the horizontal surface beneath windows, whereas metal flashing is applied to various edges and joints for comprehensive water resistance.
Table of Comparison
| Feature | Sill Pan | Metal Flashing |
|---|---|---|
| Purpose | Waterproof barrier beneath window/door sills | Diverts water away from joints and gaps |
| Material | Plastic, PVC, or flexible membranes | Aluminum, copper, galvanized steel |
| Installation | Directly under sill, integrated in rough opening | Applied over or under exterior cladding or joints |
| Water Resistance | Seals sill area to prevent water infiltration | Channels water off surfaces, prevents penetration |
| Flexibility | Flexible, molds to varied surfaces | Rigid, requires bending and cutting |
| Longevity | Durable, resists rot and corrosion | Long-lasting but may corrode depending on metal |
| Cost | Moderate price, easy to install | Varies by metal type, generally higher cost |
Introduction to Sill Pans and Metal Flashing
Sill pans are waterproof barriers installed beneath window sills to prevent water infiltration by directing moisture away from the wall assembly. Metal flashing, commonly made from aluminum or galvanized steel, serves a similar purpose by creating a protective shield that diverts water from roof edges, windows, and doors. While both sill pans and metal flashing enhance building envelope durability, sill pans specifically address the crucial transition point at window sills, improving moisture management and preventing structural damage.
Purpose and Functions of Sill Pans
Sill pans serve as a critical waterproofing component installed beneath windows and doors, directing water away from the structure to prevent water infiltration and damage. Unlike metal flashing, which primarily acts as a barrier to divert water, sill pans provide an integrated drainage system that captures and channels water out of the rough opening. Their purpose focuses on ensuring long-term moisture control and structural integrity by protecting vulnerable areas at window and door sills from leaks and rot.
Purpose and Functions of Metal Flashing
Metal flashing serves as a critical waterproofing component designed to prevent water infiltration at joints and seams, effectively directing moisture away from vulnerable areas in building envelopes. Unlike sill pans that act as a drainage plane specifically beneath window sills, metal flashing provides a continuous barrier protecting roof edges, wall intersections, and window perimeters from water intrusion. Its primary function includes enhancing the durability of structures by sealing gaps and ensuring long-term resistance to weather elements.
Comparing Material Types and Durability
Sill pans are typically made from flexible materials like PVC, rubberized membranes, or composite plastics, offering excellent water resistance and ease of installation, whereas metal flashing is often fabricated from aluminum, copper, or galvanized steel, providing superior durability and strength against physical damage. Metal flashing can withstand extreme temperatures and UV exposure longer than most sill pan materials, which may degrade or warp over time when exposed to harsh environmental conditions. Choosing between sill pan and metal flashing requires evaluating the specific demands of the building envelope, including moisture management, longevity, and maintenance considerations.
Installation Process: Sill Pan vs. Metal Flashing
The installation process of a sill pan involves placing a pre-formed or custom-fabricated waterproof membrane beneath the window or door frame to channel water away from the structure, ensuring a tight seal and reducing the risk of leaks. Metal flashing installation requires cutting and bending sheets of metal, typically aluminum or galvanized steel, to fit around window or door openings, which involves precise measurements and secure fastening to create a continuous barrier against water intrusion. Sill pan installation is generally quicker and less labor-intensive compared to metal flashing, which demands meticulous handling to prevent damage and ensure long-term durability.
Cost Considerations for Each Option
Sill pans generally offer a lower upfront cost compared to metal flashing, making them a budget-friendly choice for many construction projects. Metal flashing, while more expensive initially, provides enhanced durability and long-term protection that can reduce maintenance expenses over time. Evaluating the total cost of ownership, including installation and lifespan, can help determine the more cost-effective option for specific building needs.
Moisture Protection and Performance
Sill pans provide superior moisture protection by creating a continuous barrier that directs water away from window and door openings, preventing leaks and water damage. Unlike metal flashing, sill pans offer enhanced performance with built-in drainage channels and flexible materials that accommodate building movement without compromising the seal. Their effective integration into wall assemblies improves long-term durability and reduces the risk of mold and structural deterioration.
Energy Efficiency: Sill Pan vs. Metal Flashing
Sill pans provide superior energy efficiency compared to metal flashing by creating a continuous barrier that prevents air and water infiltration around window and door openings. The durable, non-metallic materials used in sill pans offer better insulation properties, reducing thermal bridging and minimizing heat loss. Metal flashing, while effective at water diversion, often lacks insulating capabilities, potentially compromising overall energy performance in building envelopes.
Common Applications and Best Use Cases
Sill pans are commonly used in residential construction to provide a waterproof barrier beneath windows and doors, preventing water infiltration at the sill. Metal flashing is often preferred for commercial and high-traffic applications due to its durability and resistance to corrosion. For best results, sill pans excel in wood-frame buildings and retrofit projects, while metal flashing suits metal-framed structures and areas exposed to harsh weather conditions.
Which Is Better: Sill Pan or Metal Flashing?
Sill pans are typically preferred over metal flashing for their superior water drainage design and ease of installation, especially in preventing window leaks. Metal flashing excels in durability and corrosion resistance, but may require more precise installation to avoid gaps that cause water intrusion. Choosing between sill pan and metal flashing depends on factors like climate, building type, and maintenance preferences.

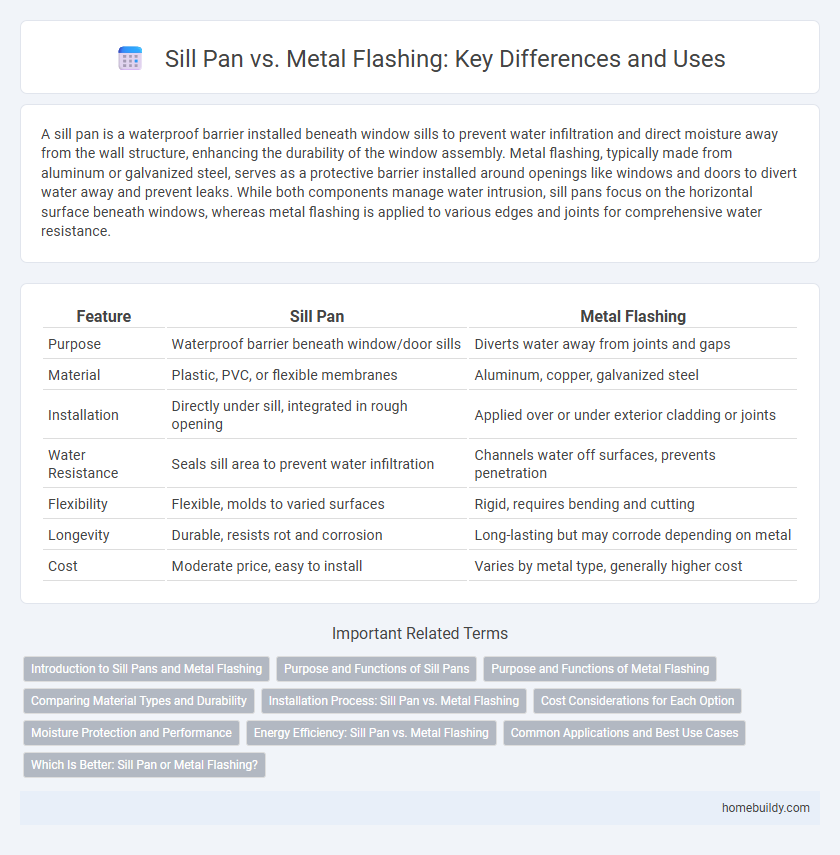

sill pan vs metal flashing Infographic
