homebuildy.com A sill pan is a protective metal or plastic flashing installed beneath a window sill to prevent water intrusion and direct moisture away from the wall assembly. A sloped sill features an inclined surface that facilitates water runoff while also aiding in water drainage away from the window opening. Both methods enhance window durability by managing water effectively, but sill pans provide a more comprehensive waterproof barrier compared to the natural drainage created by sloped sills.
Table of Comparison
| Feature | Sill Pan | Sloped Sill |
|---|---|---|
| Definition | Waterproof barrier installed beneath window or door sill to prevent water infiltration. | Inclined surface directing water away from the window or door opening. |
| Function | Collects and redirects water out of the wall assembly. | Uses gravity to shed water away from the structural opening. |
| Material | Typically metal, plastic, or waterproof membrane. | Usually wood or concrete with a slope angle between 5deg and 15deg. |
| Installation | Installed under sill during rough framing or window installation. | Formed during construction with framing or masonry work. |
| Water Management Efficiency | Highly effective at sealing and directing water out. | Relies on slope; less effective if slope is insufficient or degrades. |
| Common Usage | Modern construction and retrofits for enhanced waterproofing. | Traditional construction methods. |
| Cost | Moderate, dependent on material choice and labor. | Generally lower, but may require additional maintenance. |
Understanding Sill Pans and Sloped Sills
Sill pans provide a waterproof barrier at window and door openings, preventing water intrusion and protecting structural elements from moisture damage. Sloped sills, designed with an angled surface, facilitate water drainage away from the opening, reducing the risk of water pooling and infiltration. Understanding the function of both sill pans and sloped sills is essential for effective waterproofing and enhancing the durability of exterior building envelopes.
Purpose and Function of Sill Pans
Sill pans serve as waterproof barriers installed at the base of window or door openings to prevent water intrusion and direct moisture away from the building structure. Unlike sloped sills that rely on angled surfaces to shed water, sill pans provide a continuous, sealed membrane protecting vulnerable framing components from water damage and mold growth. Their primary function is to enhance building envelope durability by effectively managing water infiltration at critical junctions.
Benefits of Using a Sill Pan
A sill pan provides superior water management by creating a waterproof barrier that prevents water infiltration at window and door sills, significantly reducing the risk of rot and mold damage. Unlike sloped sills, sill pans offer a more reliable and durable solution by directing water away from the building envelope with integrated drainage features. Enhanced protection and ease of installation make sill pans an essential component in ensuring long-term structural integrity and energy efficiency.
Advantages of Sloped Sills
Sloped sills offer superior water drainage by directing runoff away from the building foundation, reducing the risk of water infiltration and potential structural damage. Their design enhances durability by minimizing pooling and moisture retention compared to traditional sill pans. This improved water management extends the lifespan of window and door installations, ensuring better protection against mold and rot.
Water Management: Sill Pan vs Sloped Sill
Sill pans provide a waterproof barrier that directs water away from the building envelope, preventing infiltration at door and window openings. Sloped sills, designed with angled surfaces, promote water runoff by gravity, reducing standing water risk on the sill but may not fully prevent moisture intrusion without additional barriers. Effective water management often combines a sill pan's continuous protection with a sloped sill's natural drainage for optimal defense against water damage.
Installation Differences: Sill Pan vs Sloped Sill
Sill pans are installed as waterproof barriers directly under window or door frames, designed to fit precisely and prevent water intrusion by channeling moisture out through a flat surface with integrated drainage. Sloped sills require a gradual incline built into the framing or sill itself to naturally direct water away from the opening, often necessitating additional carpentry work to achieve the correct pitch. While sill pan installation focuses on sealing and flashing with membranes or metal pans, sloped sill installation involves structural adjustments to ensure water flows efficiently downhill, impacting labor time and material use.
Cost Comparison: Sill Pan and Sloped Sill
Sill pans generally have a lower upfront cost compared to sloped sills due to simpler design and easier installation processes, making them a budget-friendly option for moisture management in window and door installations. Sloped sills, while typically more expensive due to added materials and labor requirements for proper slope creation, offer enhanced water drainage and long-term durability against water infiltration. Choosing between sill pans and sloped sills often depends on balancing initial installation costs against expected performance and maintenance savings over time.
Maintenance Considerations for Both Options
Sill pans require regular inspection to ensure clear drainage paths and prevent water accumulation that can cause rot or mold, while sloped sills naturally promote water runoff, reducing standing water risks but still demanding debris removal to maintain effectiveness. Both options benefit from periodic sealing and caulking checks to protect against moisture infiltration and extend lifespan. Proper maintenance of sill pans involves cleaning weep holes and ensuring flashing integrity, whereas sloped sills focus on preserving slope angle and surface condition for optimal water shedding.
Building Code Requirements: Sill Pan vs Sloped Sill
Building codes typically require sill pans to prevent water intrusion by acting as a waterproof barrier beneath window or door frames, ensuring proper drainage and protecting structural components. Sloped sills, while also aimed at water management, must meet specific angle and material standards stipulated in codes to direct water away from the building envelope effectively. Compliance with these requirements ensures durability, moisture control, and adherence to energy efficiency standards in construction.
Choosing the Right Option for Your Project
A sill pan provides robust waterproofing by directing water away from the window or door frame, making it ideal for projects requiring maximum moisture protection. In contrast, a sloped sill relies on gravity with an angled surface to shed water, suitable for simpler installations where additional waterproofing layers are present. Evaluating your project's exposure to moisture, installation complexity, and building code requirements will help determine whether a sill pan or sloped sill best meets your durability and performance needs.

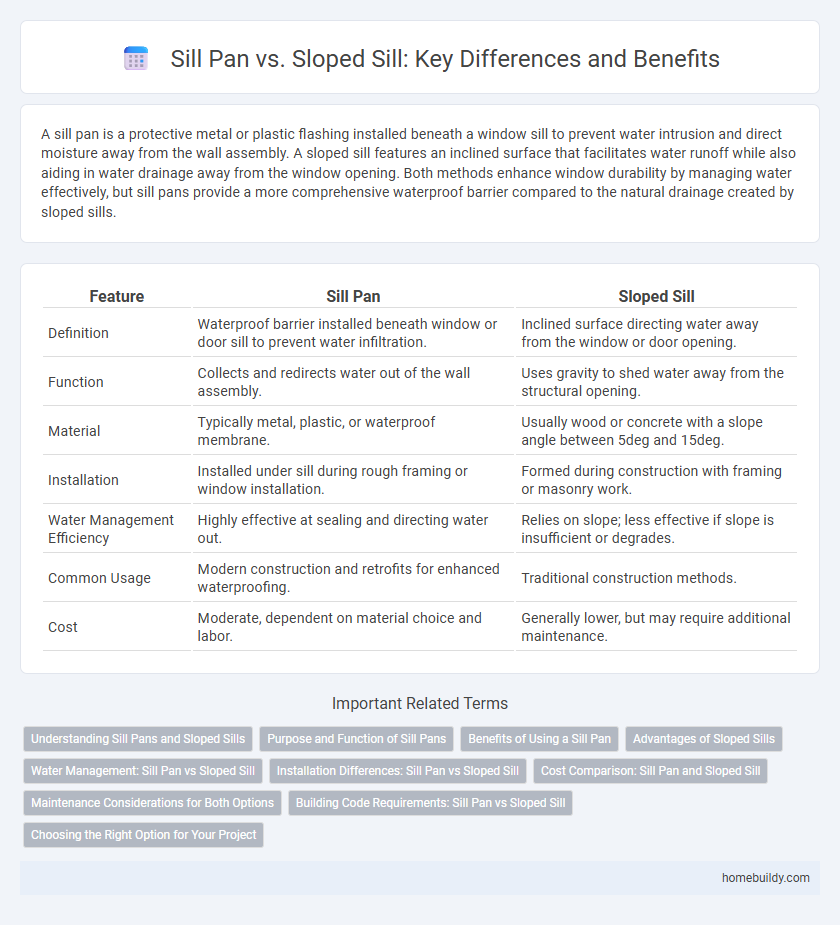

sill pan vs sloped sill Infographic
