homebuildy.com A sill pan is a waterproof barrier installed at the bottom of window and door openings to prevent water infiltration, while continuous flashing is a long strip of material that runs uninterrupted along the exterior of a building to direct water away from vulnerable areas. Sill pans are typically used in conjunction with flashing to enhance moisture protection at specific points, such as window sills. Continuous flashing provides a consistent moisture barrier along roof edges, wall joints, and other horizontal surfaces to prevent water intrusion.
Table of Comparison
| Feature | Sill Pan | Continuous Flashing |
|---|---|---|
| Definition | A waterproof barrier installed under windows and doors to prevent water intrusion at the sill. | A strip of flashing running continuously along the wall to direct water away from openings. |
| Primary Function | Protects the bottom of window and door openings from water leaks. | Provides a broad water-resistant barrier over wall joints and openings. |
| Installation Location | Installed directly at the sill beneath window and door frames. | Installed along wall edges, generally above and below openings. |
| Material | Typically made of galvanized metal, PVC, or flexible waterproof membranes. | Commonly metal (aluminum, copper), rubber, or vinyl materials. |
| Water Management | Channels water out and away from the sill to prevent pooling and leaks. | Redirects water along the wall surface to prevent infiltration. |
| Use Cases | Essential for window frames, door thresholds, and recessed entries. | Used in general wall construction, roof edges, and around large openings. |
| Durability | Designed for long-term protection against water and rot at critical entry points. | Provides extended weatherproofing but may require sealing at joints. |
| Code Compliance | Often required by building codes for proper window and door installation. | Required in many regions for roofing and exterior wall waterproofing. |
Understanding Sill Pan and Continuous Flashing
A sill pan is a waterproof barrier installed beneath windows to direct water away from the structure, preventing leakage and rot. Continuous flashing, on the other hand, is a long strip of metal or membrane applied around window openings to provide an uninterrupted seal against water intrusion. Understanding the differences between sill pans and continuous flashing is crucial for effective moisture management and durable window installation.
Key Differences Between Sill Pan and Continuous Flashing
Sill pans are primarily designed to direct water away from window and door sills, preventing moisture intrusion at these vulnerable points, while continuous flashing provides a seamless barrier around entire openings to protect against water infiltration throughout the wall assembly. Unlike continuous flashing, which typically extends vertically and horizontally along the entire perimeter of an opening, sill pans are custom-fitted to the bottom horizontal surface to channel water outward effectively. The key difference lies in their functional focus: sill pans manage localized drainage at the sill, whereas continuous flashing ensures comprehensive moisture protection along the full perimeter of windows or doors.
Functions and Purposes of Sill Pan
A sill pan serves as a specialized waterproof barrier installed at the base of window and door openings to prevent water infiltration and direct moisture away from the building envelope. Unlike continuous flashing, which spans horizontally over larger areas to block water penetration along entire walls, sill pans specifically focus on protecting vulnerable entry points by channeling water out and away from structural components. Its primary purpose is to ensure effective drainage and enhance the durability of window and door installations by minimizing the risk of water damage and mold growth.
Functions and Purposes of Continuous Flashing
Continuous flashing serves as a seamless waterproof barrier along roof edges, preventing water infiltration and directing moisture away from critical joints. Its function is to protect structural components by creating an uninterrupted shield that complements the sill pan's role in managing water at window sills. By ensuring a durable, continuous seal, continuous flashing enhances overall building envelope integrity and moisture control.
Installation Methods: Sill Pan vs Continuous Flashing
Sill pans are typically installed as pre-formed or custom-fabricated trays beneath window and door openings to provide a dedicated drainage path, ensuring water is directed away from the framing. Continuous flashing, on the other hand, involves applying a flexible or rigid barrier that extends uninterrupted around openings, creating a seamless waterproof membrane integrated with the building's weather barrier. The installation of sill pans requires careful sealing at corners and joints to prevent leaks, whereas continuous flashing demands proper integration with adjacent materials to maintain a cohesive, unbroken barrier against moisture intrusion.
Moisture Management: Which Is More Effective?
Sill pans provide targeted moisture management by directing water away from window and door openings, effectively preventing water infiltration at critical transition points. Continuous flashing offers broader moisture protection by creating a seamless barrier along the entire exterior wall, reducing the risk of water intrusion over larger surface areas. For localized moisture control at openings, sill pans are more effective, while continuous flashing excels in comprehensive wall moisture management.
Material Options for Sill Pans and Continuous Flashing
Sill pans are commonly fabricated from materials such as aluminum, PVC, and galvanized steel, offering durability and resistance to moisture infiltration at window bases. Continuous flashing materials include flexible rubberized asphalt, self-adhesive membranes, and metal strips, providing seamless protection along the entire building envelope. Material selection depends on factors like compatibility with exterior cladding, UV exposure tolerance, and ease of installation to ensure long-term water management effectiveness.
Durability and Maintenance Considerations
Sill pans provide superior durability compared to continuous flashing by effectively directing water away from window openings, minimizing the risk of water intrusion and long-term damage. Their design often includes integrated drainage channels that reduce maintenance needs by preventing debris buildup, unlike continuous flashing which may require frequent inspections and repairs due to vulnerability at seams. This enhanced water management leads to lower lifecycle maintenance costs and prolonged structural integrity around windows.
Building Code Requirements for Sill Pans and Continuous Flashing
Building code requirements for sill pans emphasize the need for a water-resistant barrier that prevents moisture intrusion at window and door sills, typically mandating materials like metal or plastic that resist corrosion and maintain a continuous drainage plane. Continuous flashing standards extend beyond sill pans by requiring a seamless moisture barrier that wraps around the entire opening to direct water outwards and prevent structural damage. Compliance with International Building Code (IBC) sections and local amendments ensures both sill pans and continuous flashing systems meet minimum performance criteria for durability, water resistance, and proper installation.
Cost Comparison: Sill Pan versus Continuous Flashing
Sill pans generally offer a lower upfront cost compared to continuous flashing due to simpler materials and easier installation processes. Continuous flashing, while more expensive initially, provides enhanced durability and better long-term protection against water infiltration, potentially reducing future repair costs. Evaluating total lifecycle expenses, sill pans may be more cost-effective for smaller projects, whereas continuous flashing delivers superior value in high-moisture or extensive installations.

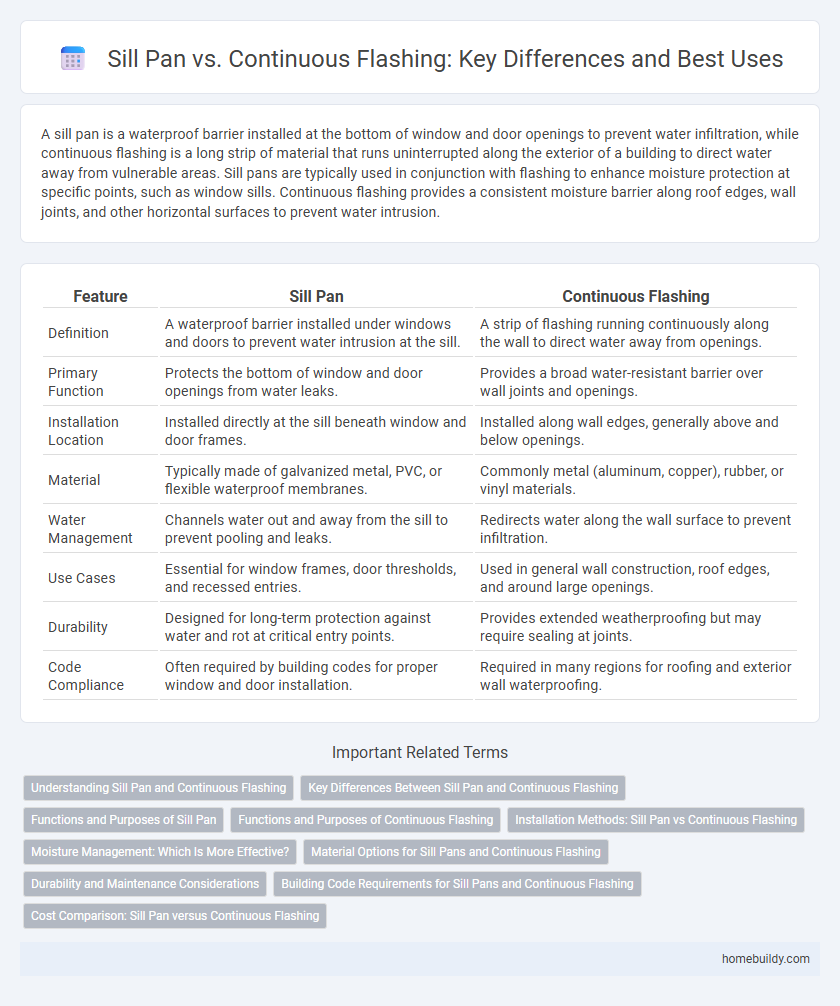

sill pan vs continuous flashing Infographic
