homebuildy.com A sill pan provides a rigid, pre-formed barrier protecting window and door sills from water intrusion, ensuring drainage away from the structure. Fluid-applied flashing, on the other hand, is a flexible, liquid membrane that creates a seamless waterproof seal over irregular surfaces and joints. Choosing between the two depends on the specific application, surface complexity, and desired level of durability and adaptability.
Table of Comparison
| Feature | Sill Pan | Fluid-Applied Flashing |
|---|---|---|
| Material | Pre-formed rigid or flexible waterproof barrier (PVC, metal, or plastic) | Liquid membrane applied on-site (polyurethane, asphalt, or rubberized coatings) |
| Application | Installed under window sills or door thresholds during rough framing | Brushed or sprayed onto surfaces for customized coverage |
| Waterproofing | Provides a controlled drainage plane to direct moisture outside | Seamless, fully-adhered barrier that seals complex shapes |
| Durability | Highly durable but depends on proper installation and sealing | Flexible and crack-resistant, adapts to building movement |
| Installation Time | Faster with pre-formed pans, minimal curing time | Longer due to application and drying/curing process |
| Cost | Moderate initial material cost; potentially lower labor | Variable cost; may be higher due to labor and materials |
| Best Use | Window and door openings requiring rigid waterproof barriers | Complex shapes or retrofit projects needing seamless coverage |
Introduction to Sill Pans and Fluid-Applied Flashing
Sill pans act as pre-formed barriers installed at window and door bottoms to direct water away from the building envelope, providing a physical shield against moisture intrusion. Fluid-applied flashing consists of liquid membranes that cure into seamless, flexible barriers, allowing for custom-fit application around complex architectural details and irregular substrates. Both methods enhance water management but differ in installation techniques and adaptability to various construction scenarios.
What is a Sill Pan?
A sill pan is a pre-formed or custom-made waterproof barrier installed at the base of a window or door opening to prevent water infiltration and direct moisture away from the wall assembly. Unlike fluid-applied flashing, which is liquid-applied and cures to form a continuous membrane, a sill pan is typically made of rigid materials like metal, PVC, or composite, providing a durable drip edge and channel for drainage. Sill pans enhance building durability by offering reliable protection against water damage at critical transition points in the building envelope.
What is Fluid-Applied Flashing?
Fluid-applied flashing is a liquid membrane applied to sills and openings, creating a seamless and waterproof barrier that adheres directly to the substrate. Unlike sill pans, which are pre-fabricated trays installed beneath windows, fluid-applied flashing conforms to complex shapes and penetrations, ensuring comprehensive protection against water intrusion. This method enhances durability and flexibility in managing moisture around window installations and building envelopes.
Key Differences Between Sill Pans and Fluid-Applied Flashing
Sill pans are rigid, pre-formed components specifically designed to collect and direct water away from window and door openings, providing a physical barrier against moisture intrusion. Fluid-applied flashing, in contrast, is a liquid membrane applied directly to surfaces to create a seamless, flexible waterproof barrier that conforms to irregular shapes and joints. The key difference lies in installation and flexibility: sill pans offer durable, structural protection but require precise fitting, while fluid-applied flashing provides versatile coverage with easier application but may lack the same mechanical robustness.
Installation Process: Sill Pan vs Fluid-Applied Flashing
Sill pans are typically pre-formed metal or plastic components that require precise measurement and sealing around window or door openings, offering a quicker, more controlled installation process compared to fluid-applied flashing. Fluid-applied flashing involves the application of liquid membrane layers that must be carefully layered and allowed to cure, providing superior flexibility and adhesion but demanding more time and skilled labor. The choice between sill pans and fluid-applied flashing hinges on project priorities such as installation speed, weatherproofing needs, and labor costs.
Performance and Durability Comparison
Sill pans provide a rigid, pre-formed barrier that excels in directing water away from window and door openings, ensuring reliable long-term performance against moisture intrusion. Fluid-applied flashing, composed of elastomeric materials, offers superior flexibility and seamless adhesion, adapting well to irregular surfaces and sustaining durability under thermal expansion and contraction. Both options enhance building envelope protection, but sill pans typically offer faster installation and consistent coverage, while fluid-applied flashing provides enhanced resistance to air and water leakage in complex geometries.
Cost Analysis: Sill Pan vs Fluid-Applied Flashing
Sill pans typically offer a lower initial installation cost compared to fluid-applied flashing due to simpler materials and faster application times. Fluid-applied flashing may have higher upfront expenses but can provide superior long-term durability and reduced maintenance costs by forming a seamless, flexible membrane resistant to water infiltration. Evaluating total cost of ownership should consider installation labor, material longevity, and potential repair needs to determine the most cost-effective option for specific building projects.
When to Choose Sill Pan Over Fluid-Applied Flashing
Sill pans provide superior water drainage and a more reliable barrier in high-traffic or heavy rainfall areas, making them ideal for homes with frequent exposure to harsh weather conditions. They are preferable when working with window or door installations requiring consistent structural support and easier inspection for leaks compared to fluid-applied flashing. Selecting sill pans is advantageous in construction projects demanding durable, long-lasting protection against water intrusion at foundation or entry points.
Common Mistakes and Best Practices
Common mistakes in sill pan installation include improper sealing, inadequate overlap, and using incompatible materials that lead to water infiltration. Best practices involve selecting a high-quality, durable sill pan, ensuring a continuous waterproof barrier by integrating it with adjacent flashing materials, and verifying precise alignment to direct water away effectively. Fluid-applied flashing offers flexibility and seamless coverage but requires thorough surface preparation and correct layering to maximize performance.
Conclusion: Which Solution Is Right for Your Project?
Sill pans provide a durable, pre-formed barrier that ensures optimal water drainage at window sills, making them ideal for projects requiring precise installation and long-term reliability. Fluid-applied flashing offers seamless coverage and flexibility, adapting well to irregular surfaces and complex shapes, which is beneficial for custom or retrofit applications. Choosing between a sill pan and fluid-applied flashing depends on project specifics such as substrate condition, design complexity, and budget constraints to achieve maximum moisture protection.

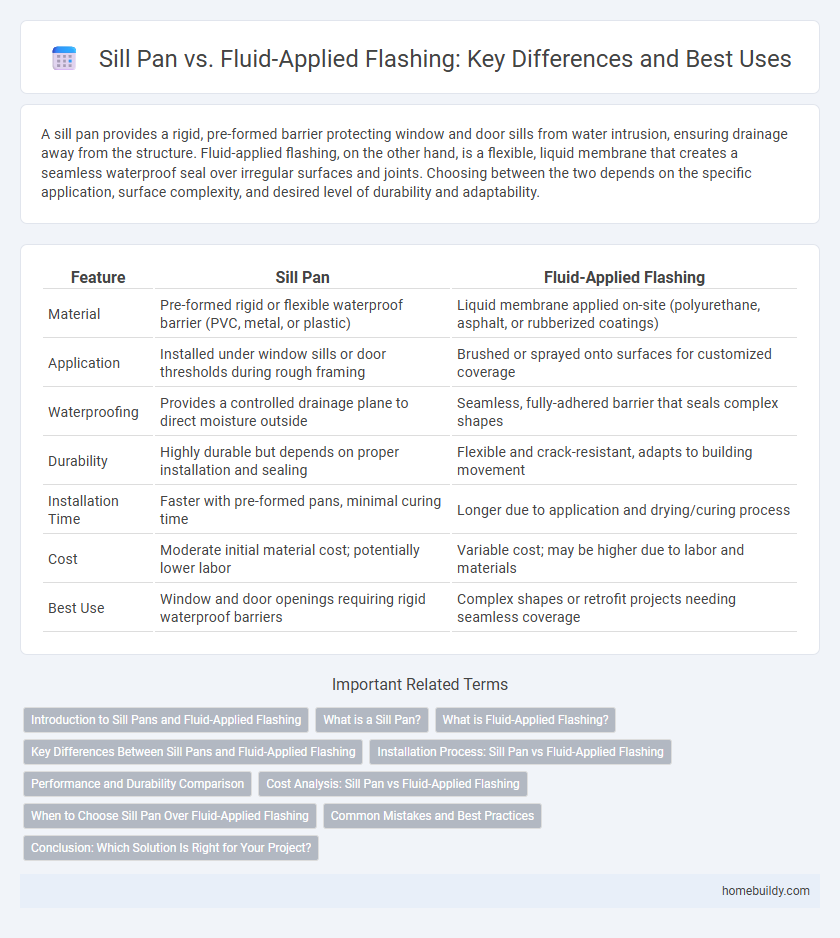

sill pan vs fluid-applied flashing Infographic
