homebuildy.com A sill pan is a waterproof barrier installed beneath a window or door to prevent water from entering the building envelope, while a subsill refers to the structural member or framing component supporting the window sill. Sill pans are typically made of metal, plastic, or composite materials designed to direct water away from the opening. Subsills provide stability and a mounting surface for the window but do not offer waterproofing like sill pans do.
Table of Comparison
| Feature | Sill Pan | Subsill |
|---|---|---|
| Purpose | Prevents water infiltration at window or door base by directing moisture out | Structural component supporting the window or door frame |
| Material | Waterproof membranes, metal, or plastic | Wood or engineered framing material |
| Installation Location | Installed under the window or door frame on the rough opening sill | Installed at the base of the rough opening as part of framing |
| Water Management | Critical for moisture drainage and preventing leaks | Provides structural support but limited water protection role |
| Common Use | Used in modern construction to improve building envelope integrity | Traditional framing approach for windows and doors |
Introduction to Sill Pan and Subsill
A sill pan is a metal or plastic flashing installed at the base of a window or door opening to direct water away from the wall assembly, preventing moisture intrusion. The subsill, often part of the window frame or structural sill, provides a surface for the window to sit on and assists in managing water drainage but does not offer the same level of protection as a dedicated sill pan. Proper installation of a sill pan below the subsill enhances water management and extends the durability of window and door systems.
What is a Sill Pan?
A sill pan is a protective flashing installed at the base of window and door openings to direct water away from the structure, preventing moisture infiltration and damage. Unlike a subsill, which is a structural component forming part of the window sill frame, the sill pan acts as a waterproof barrier beneath the sill. Proper installation of a sill pan enhances the building envelope's durability by managing water drainage and reducing the risk of rot and mold.
Defining Subsill: Key Features
A subsill is a structural component installed directly beneath the window sill, serving as a foundational support that channels water away from the framing to prevent moisture intrusion. Unlike sill pans, which are primarily waterproofing devices installed under exterior window sills, subsills provide enhanced load distribution and contribute to the overall stability of the window assembly. Key features of subsills include robust moisture resistance, integrated drainage channels, and compatibility with various window frame materials for improved durability.
Primary Functions: Sill Pan vs Subsill
A sill pan primarily serves as a drainage solution, preventing water from penetrating the window or door framing by directing it away from the structure. A subsill functions as a structural component beneath the sill, providing support and ensuring proper alignment while also aiding in waterproofing. Together, sill pans focus on water management, whereas subsills emphasize structural stability and alignment.
Material Differences Between Sill Pan and Subsill
Sill pans are typically fabricated from flexible materials like PVC or metal, designed to create a waterproof barrier under the window sill to prevent water infiltration. Subsills are generally made from heavier, more rigid materials such as treated wood or composite, serving as the structural foundation beneath the sill pan. The key material difference lies in the sill pan's corrosion-resistant and waterproof properties versus the subsill's structural support and durability.
Installation Process: Sill Pan vs Subsill
The installation process of a sill pan involves precise placement beneath the window frame to create a waterproof barrier, typically using a one-piece or pre-formed flashing system that directs water away from the wall assembly. In contrast, a subsill is installed directly on the rough opening's sill plate before the window is set, serving as a base layer to capture and redirect water but often requires additional flashing layers for comprehensive protection. Proper installation of both components ensures effective drainage and prevents water intrusion, with sill pans generally offering a more integrated and robust solution compared to subsills.
Performance in Water Management
A sill pan provides a crucial waterproof barrier directing water away from the window opening, preventing infiltration and structural damage. In contrast, a subsill focuses on leveling and support but lacks comprehensive water management capabilities. Effective sill pans outperform subsills in preventing water intrusion, ensuring superior durability and prolonged building envelope integrity.
Cost Comparison: Sill Pan vs Subsill
Sill pans generally cost less than subsills due to simpler design and easier installation, typically ranging from $20 to $50 per linear foot, whereas subsills can range from $40 to $80 per linear foot because of enhanced structural support and materials. The lower upfront cost of sill pans makes them attractive for budget-conscious projects, but subsills offer better long-term durability and water management, potentially reducing repair expenses. Evaluating project scope and longevity requirements helps determine the most cost-effective choice between sill pan and subsill installation.
Common Applications and Best Practices
Sill pans are commonly installed beneath exterior door thresholds to prevent water infiltration by directing moisture away from the framing, while subsills provide structural support and facilitate proper drainage under the sill pan. Best practices include using a durable, flexible flashing material for the sill pan to ensure a continuous waterproof barrier and securing the subsill with corrosion-resistant fasteners to maintain long-term stability. Proper integration of sill pans with subsills in framed openings helps protect against rot, mold, and water damage, extending the building envelope's durability.
Choosing Between Sill Pan and Subsill
A sill pan is a waterproof barrier installed beneath the window sill to prevent water infiltration and direct moisture away from the building structure. A subsill, typically a structural component, supports the window frame and may not provide the same level of waterproofing as a sill pan. Choosing between a sill pan and a subsill depends on the specific requirements for water management and structural support in the window installation.

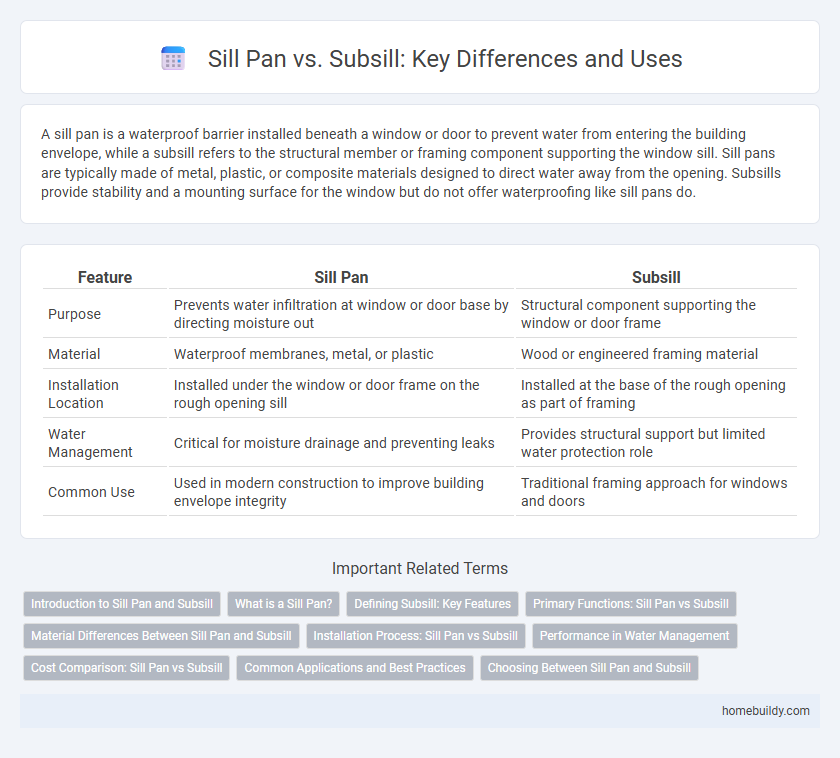

sill pan vs subsill Infographic
