homebuildy.com A sill pan is a protective barrier installed at the base of window or door openings to prevent water infiltration and direct moisture away from the building structure. A back dam is a raised edge within a sill pan or flashing system designed to stop water from flowing backward into the wall assembly. Both components work together to enhance water management and protect against potential water damage in building envelopes.
Table of Comparison
| Feature | Sill Pan | Back Dam |
|---|---|---|
| Purpose | Prevents water infiltration beneath windows and doors | Blocks water from entering walls through the bottom edge of windows |
| Placement | Installed under window or door sills | Located at the interior side of window sills |
| Material | Metal flashing, PVC, or rubber membranes | Metal or vinyl strip attached to window sill |
| Water Management | Directs water outward, away from wall assembly | Acts as a barrier to prevent water intrusion |
| Installation Complexity | Moderate; requires precise flashing integration | Simple; often retrofitted or added during window installation |
| Effectiveness | Highly effective in shedding water from sill area | Effective as secondary water barrier |
Introduction to Sill Pans and Back Dams
Sill pans and back dams are essential components in window and door installations, designed to prevent water intrusion and protect building structures. A sill pan is a waterproof barrier installed beneath window or door sills, directing water to the exterior, while a back dam acts as a raised edge at the back of the sill pan, preventing water from flowing into the wall assembly. Proper integration of sill pans with back dams enhances moisture management and extends the durability of the building envelope.
What is a Sill Pan?
A sill pan is a waterproof flashing installed at the base of window openings to prevent water intrusion by directing moisture away from the wall assembly. Unlike a back dam, which creates a barrier to stop water from flowing backward, a sill pan actively channels water outward through a sloped surface. Proper installation of sill pans is critical in protecting building structures from water damage and ensuring long-term durability.
What is a Back Dam?
A back dam is a raised waterproof barrier installed at the rear edge of a window or door opening to prevent water infiltration into the wall assembly. Unlike a sill pan, which sits beneath the window to catch and drain water, the back dam acts as a secondary defense by stopping water from flowing back toward the interior structure. This critical component enhances water management by directing moisture away from vulnerable framing and sheathing.
Key Differences Between Sill Pan and Back Dam
A sill pan serves as a protective barrier installed beneath windows and doors to prevent water infiltration by directing moisture away from the building structure. A back dam, integrated at the rear edge of the sill pan, acts as a raised stopper that prevents water from flowing back into the wall assembly. The key difference lies in their functions: the sill pan manages overall drainage, while the back dam provides a critical water-retention feature to enhance leak protection.
Functions and Benefits of Sill Pans
Sill pans provide a critical waterproof barrier at the base of window and door openings, preventing water infiltration and protecting structural components from moisture damage. Unlike back dams, which primarily act as a raised edge to divert water, sill pans offer comprehensive drainage and vapor barrier functions that enhance durability and reduce the risk of mold and rot. Their installation improves energy efficiency by creating a continuous seal, contributing to better indoor air quality and reduced maintenance costs over time.
Functions and Benefits of Back Dams
Back dams provide an essential waterproof barrier that prevents water infiltration behind the window or door assembly, enhancing overall moisture management. Unlike sill pans that primarily channel water away from the base, back dams create a positive stop, reducing the risk of water intrusion into the wall cavity. This added protection improves durability and energy efficiency by maintaining a dry building envelope.
Applications and Ideal Use Cases
Sill pans are ideal for window and door installations in standard residential and light commercial buildings, providing a waterproof barrier that directs water away from the sill to prevent water intrusion and damage. Back dams are best suited for areas prone to heavy rainfall or where the sill is exposed to higher water levels, as they create a raised edge at the back of the sill to prevent water from flowing under the window or door assembly. Applications with higher moisture exposure or where enhanced water management is crucial benefit most from back dams, while sill pans excel in typical installations requiring effective drainage and protection.
Installation Methods: Sill Pan vs Back Dam
Sill pan installation involves placing a waterproof flashing at the base of a window or door opening, ensuring a continuous, sloped drainage path that directs water away from the building envelope. Back dam installation uses a raised barrier at the rear edge of the sill to prevent water intrusion, relying on a sealed perimeter to contain and redirect moisture. While sill pans emphasize effective drainage with a sloped design, back dams focus on creating a stop-gap barrier, impacting the overall water management strategy during rough framing.
Common Mistakes and Best Practices
Common mistakes when installing sill pans include improper sealing at corners and failing to incorporate back dams, which leads to water infiltration and damage. Best practices emphasize creating a continuous waterproof barrier by integrating a back dam to prevent water from escaping under the door threshold. Ensuring precise installation with overlapping flashing and proper slope enhances durability and protects against moisture intrusion.
Choosing the Right Solution for Your Window or Door Opening
A sill pan provides a waterproof barrier beneath window or door sills, effectively channeling water away and preventing leaks, making it ideal for new construction or full replacements. A back dam, installed at the rear edge of the sill pan, adds an extra layer of protection against water intrusion by stopping water that flows backward. Selecting between a sill pan alone or a sill pan with a back dam depends on factors like climate, exposure level, and risk of water infiltration for your window or door opening.

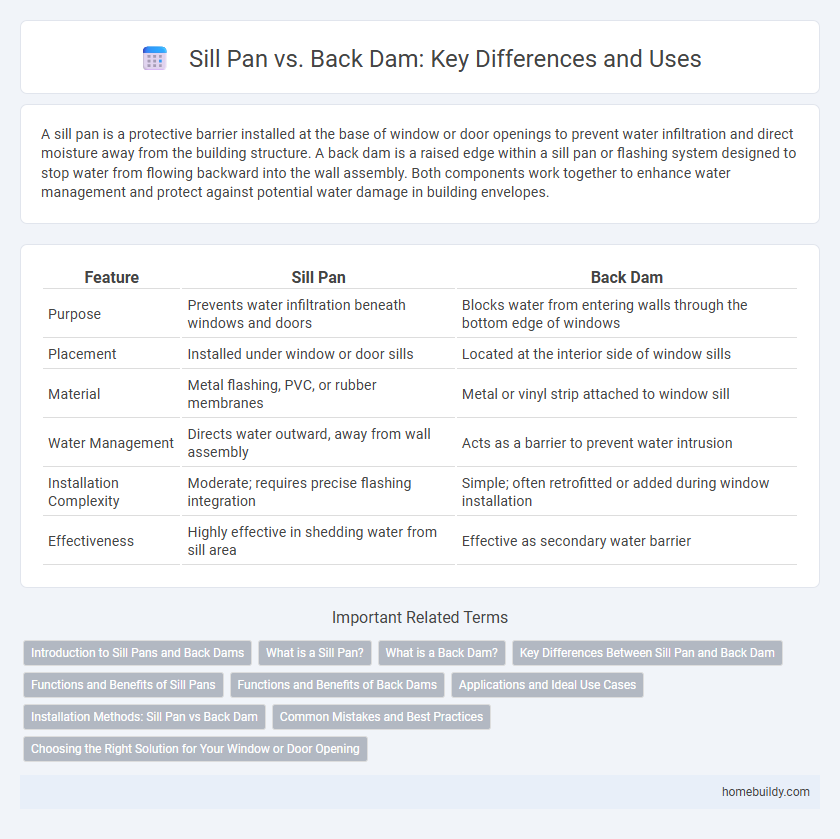

sill pan vs back dam Infographic
