homebuildy.com A sill pan is a waterproof barrier installed beneath the window sill to direct water away from the framing and prevent water damage. A sill gasket is a flexible seal placed between the window frame and the sill to reduce air infiltration and improve energy efficiency. While both enhance window performance, a sill pan focuses on moisture management, whereas a sill gasket targets airtightness.
Table of Comparison
| Feature | Sill Pan | Sill Gasket |
|---|---|---|
| Purpose | Water drainage and protection below windows and doors | Air and moisture sealing between sill and frame |
| Material | Metal, plastic, or rubberized membranes | Foam, rubber, or compressible sealants |
| Installation Location | Underneath window or door sill | Between sill and frame edges |
| Function | Prevents water intrusion by directing water out | Stops air leaks and minor moisture seepage |
| Durability | High; designed for long-term moisture resistance | Moderate; affected by compression and weathering |
| Cost | Higher due to materials and labor | Lower; simpler installation |
| Typical Use | Essential in new construction and window replacements | Common in retrofits and minor repairs |
Introduction to Sill Pan and Sill Gasket
A sill pan is a waterproof flashing installed beneath a window or door sill to direct water away from the building structure and prevent water damage. A sill gasket, on the other hand, is a flexible seal placed between the window or door frame and the sill to block air and moisture infiltration. While both components enhance weather resistance, sill pans primarily manage water drainage, whereas sill gaskets focus on creating airtight seals.
Defining Sill Pan: Purpose and Function
A sill pan is a specialized waterproofing component installed beneath window and door sills to prevent water infiltration and protect the building envelope from moisture damage. Unlike a sill gasket, which primarily serves as a seal to block air and dust, the sill pan provides a drainage path to direct water away from vulnerable structural elements. This critical function enhances durability by managing condensation and preventing rot, mold, and structural deterioration around openings.
Understanding Sill Gasket: Overview and Uses
A sill gasket is a flexible sealing component installed between the window or door frame and the sill pan to prevent air and water infiltration. Unlike a rigid sill pan, the gasket provides continuous compression and adapts to structural movements, enhancing long-term durability and weather resistance. Commonly made from rubber or foam materials, sill gaskets play a crucial role in maintaining energy efficiency and protecting against moisture damage in building envelopes.
Key Differences Between Sill Pan and Sill Gasket
Sill pans are rigid, typically metal or plastic trays installed beneath window or door frames to direct water away from the building envelope, preventing water intrusion and damage. Sill gaskets, on the other hand, are flexible, compressible seals placed between the sill and the frame to block air and water infiltration by creating a tight seal. The key differences lie in their function, material properties, and installation location: sill pans manage drainage and water diversion, while sill gaskets focus on sealing gaps and enhancing insulation.
Material Comparison: Sill Pan vs Sill Gasket
Sill pans are typically made from durable materials such as aluminum, PVC, or galvanized steel, providing robust water drainage and protection against moisture intrusion. In contrast, sill gaskets are usually composed of flexible rubber or foam materials designed to create a tight seal between the window or door frame and the sill, preventing air and water leaks. The rigid, water-resistant properties of sill pans offer superior structural defense, while sill gaskets provide effective sealing and cushioning but lack the durable framework of sill pans.
Installation Process: Sill Pan vs Sill Gasket
Sill pan installation requires precise measurement, cutting, and sealing to create a watertight barrier beneath the window or door sill, ensuring effective drainage and protection against moisture intrusion. In contrast, sill gasket installation involves fitting a pre-formed, compressible seal between the sill and framing to prevent air and water infiltration with minimal surface preparation. While sill pans demand careful integration with flashing and siding materials, sill gaskets offer a quicker, less labor-intensive solution primarily aimed at air sealing rather than comprehensive water management.
Moisture Protection Effectiveness
Sill pans provide superior moisture protection by creating a solid barrier beneath window and door frames, preventing water intrusion and facilitating proper drainage. Unlike sill gaskets, which primarily offer a compressible seal to block air and minor moisture, sill pans actively channel water away from the structure, reducing the risk of rot and mold. Effective sill pan installation enhances building envelope durability by managing liquid water infiltration more reliably than sill gaskets alone.
Energy Efficiency: Sill Pan vs Sill Gasket
Sill pans provide superior energy efficiency compared to sill gaskets by creating a continuous, watertight barrier that prevents air and moisture infiltration at window and door bases. While sill gaskets primarily offer a cushion to reduce drafts, sill pans integrate with flashing systems to enhance thermal performance and reduce heat loss through improved air sealing. Proper installation of sill pans significantly minimizes energy wastage, contributing to lower heating and cooling costs in both residential and commercial buildings.
Cost Considerations and Longevity
Sill pans generally have higher upfront costs compared to sill gaskets due to their durable materials and more complex installation process, but they provide superior protection against water intrusion and significantly extend the lifespan of window and door installations. Sill gaskets, while more affordable and easier to install, typically offer less robust sealing and may require more frequent replacement or maintenance over time. Investing in a quality sill pan can reduce long-term repair costs and improve the overall durability of the building envelope.
Choosing the Right Solution for Your Project
Selecting the appropriate solution between a sill pan and a sill gasket hinges on your project's moisture management needs and installation complexity. Sill pans provide comprehensive protection against water infiltration by creating a fully sealed barrier beneath window or door sills, making them ideal for new builds or extensive renovations. Sill gaskets offer a simpler, quicker installation and are effective for preventing minor drafts and leaks but may not deliver the same level of water resistance in areas prone to heavy exposure.

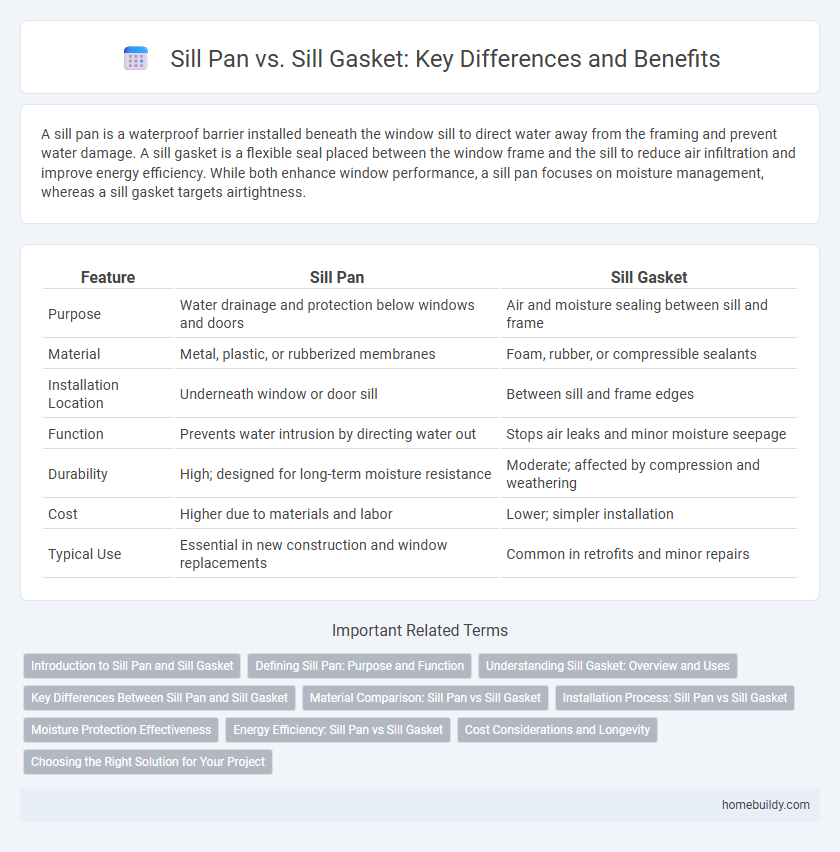

sill pan vs sill gasket Infographic
