homebuildy.com Outlet boxes and old work boxes serve similar purposes but differ mainly in installation methods and application. Outlet boxes are typically used in new construction, installed before the wall surfaces are finished, allowing for easier wiring access and secure mounting. Old work boxes are designed for retrofitting in existing walls, featuring brackets or clamps that secure the box tightly without needing access to the studs.
Table of Comparison
| Feature | Outlet Box | Old Work Box |
|---|---|---|
| Installation Type | New construction, attached to wall studs | Retrofitting, fits into existing walls |
| Material | Metal or plastic | Plastic with mounting clamps |
| Wire Access | Open back for easy wiring | Closed back, wire access via side holes |
| Mounting Method | Screwed or nailed to studs | Clamp-mounted inside drywall |
| Use Case | New electrical installations | Replacing or adding devices in finished walls |
| Cost | Generally lower | Typically higher due to ease and flexibility |
| Installation Difficulty | Moderate, requires wall access | Easy, no wall opening required |
Introduction to Outlet Boxes and Old Work Boxes
Outlet boxes serve as essential electrical enclosures that protect wiring connections and provide secure mounting points for switches and outlets, typically installed during new construction. Old work boxes, also known as retro-fit or remodel boxes, are designed for installation in existing walls without requiring access to the building frame, making them ideal for upgrading or adding electrical fixtures in finished spaces. Both types ensure electrical safety and code compliance but differ significantly in installation methods and structural compatibility.
Key Differences Between Outlet Boxes and Old Work Boxes
Outlet boxes are typically used in new construction projects and are attached directly to wall studs before drywall installation, providing a sturdy and secure mounting surface. Old work boxes, also known as remodel boxes, are designed for installations where walls are already finished, featuring brackets or clamps that secure to existing drywall without the need for stud attachment. Key differences include installation method, compatibility with wall conditions, and support mechanisms, making outlet boxes preferred for new builds and old work boxes ideal for retrofitting or remodeling tasks.
When to Use an Outlet Box
An outlet box is ideal for new construction projects where wall studs are exposed, allowing secure mounting and easy installation of electrical devices. Old work boxes, also known as remodel boxes, are designed for retrofitting existing walls without access to studs, using clamps or brackets to hold the box in place. When to use an outlet box depends on whether the project is new construction or a retrofit; outlet boxes provide structural support in new builds, while old work boxes accommodate electrical additions in finished walls.
When to Choose an Old Work Box
Choose an old work box when installing electrical outlets in existing walls where no studs are exposed, as it allows for mounting without opening the entire wall. Old work boxes are specifically designed for retrofit projects, featuring secure clamps or wings that hold the box firmly against drywall or plaster. This type of outlet box minimizes wall damage and simplifies installation compared to traditional new work boxes, which require access to wall studs.
Installation Process: Outlet Box vs Old Work Box
The installation process for an outlet box typically involves mounting it securely to a wall stud before drywall is installed, ensuring a stable and permanent fixture for electrical connections. In contrast, an old work box is designed for retrofit applications, allowing it to be installed directly into existing walls without removing drywall, using mounting brackets or wings that clamp onto the wall material. This distinction makes old work boxes ideal for upgrades or repairs, while outlet boxes are preferred in new construction for their durability and ease of wiring access.
Material and Durability Comparison
Outlet boxes typically use high-quality, non-metallic materials such as PVC or fiberglass, offering excellent resistance to corrosion and impact, enhancing durability in modern electrical installations. Old work boxes are often made from galvanized steel or plastic, which may be prone to rust or cracking under stress, especially in damp environments. The material advancements in outlet boxes provide superior longevity and a safer, more reliable foundation for electrical wiring compared to traditional old work boxes.
Code Compliance and Safety Considerations
Outlet boxes and old work boxes must comply with the National Electrical Code (NEC) to ensure safety and proper installation. Outlet boxes are typically used in new construction and provide secure grounding and attachment points, whereas old work boxes are designed for retrofit applications and must maintain existing wall integrity without compromising electrical connections. Both types require proper sizing, secure mounting, and correct wire management to prevent electrical hazards and meet code requirements.
Cost Factors: Outlet Box vs Old Work Box
Outlet boxes generally cost less due to their simpler installation in new construction, while old work boxes often require additional labor and materials to retrofit existing walls, increasing overall expenses. Material costs vary, with plastic outlet boxes being cheaper than metal old work boxes that offer greater durability. Labor fees for old work boxes typically rise because of wall repair and precise fitting, making them more expensive compared to outlet boxes used in new builds.
Common Mistakes and How to Avoid Them
Confusing outlet boxes with old work boxes often leads to improper installation and electrical hazards. Outlet boxes are designed for new construction and secure to studs, while old work boxes clip into existing drywall without structural support; using the wrong type can cause loose fittings or damage. To avoid mistakes, always match the box type with the construction phase and follow manufacturer guidelines for secure mounting and proper wiring clearance.
Choosing the Right Box for Your Project
Choosing the right outlet box depends on the type of installation and wall construction; outlet boxes are typically used in new work projects where wall studs are exposed, allowing for easy attachment. Old work boxes, also called retrofit boxes, are designed for existing walls without access to framing, featuring adjustable clamps or wings to secure against drywall. Selecting the appropriate box ensures proper electrical safety, code compliance, and ease of installation based on your project's conditions.

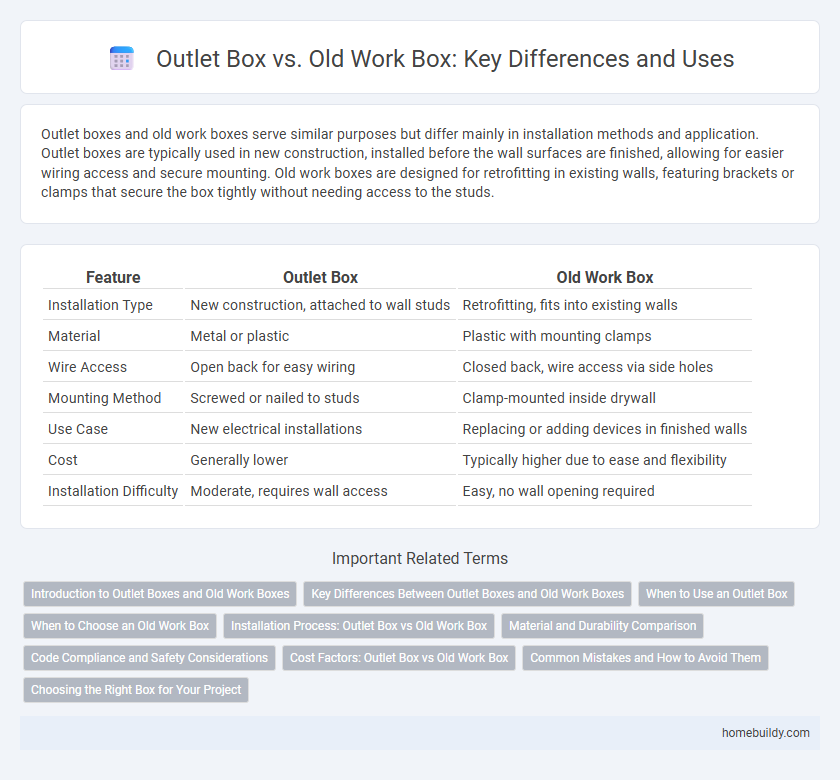

Outlet box vs Old work box Infographic
