homebuildy.com Outlet boxes and ceiling boxes serve different purposes in electrical installations, with outlet boxes primarily designed to house receptacles and switches near walls, while ceiling boxes support light fixtures and ceiling fans. Ceiling boxes are typically sturdier and may include additional support features to handle heavier loads compared to the generally lighter-duty outlet boxes. Choosing the correct box ensures compliance with electrical codes and provides safe, reliable mounting for various fixtures.
Table of Comparison
| Feature | Outlet Box | Ceiling Box |
|---|---|---|
| Purpose | Holds electrical outlets and switches | Supports ceiling fixtures like fans and lights |
| Shape | Rectangular or square | Round or octagonal |
| Material | Plastic or metal | Metal, often heavy-duty |
| Mounting Location | Wall installation | Ceiling installation |
| Load Capacity | Supports light devices (outlets/switches) | Supports heavier fixtures (fans, lights) |
| Wiring Capacity | Limited wire fill capacity | Higher volume wire fill capacity |
| Code Requirements | Must meet NEC for outlet boxes | Must meet NEC for ceiling boxes with rated support |
Understanding the Basics: What Are Outlet Boxes and Ceiling Boxes?
Outlet boxes are electrical enclosures designed to house electrical outlets, switches, and wiring connections, typically mounted on walls. Ceiling boxes serve a similar function but are specifically engineered to support ceiling fixtures such as lights and fans, often requiring stronger structural support and mounting features. Both types of boxes are essential for safely containing electrical components and preventing hazards, but their design and installation requirements differ based on their intended applications.
Key Differences Between Outlet Boxes and Ceiling Boxes
Outlet boxes are designed primarily for wall-mounted electrical devices like switches and receptacles, featuring a rectangular shape and shallow depth for easy wiring access. Ceiling boxes are engineered to support heavier fixtures, such as ceiling fans or light fixtures, with a round or octagonal shape and reinforced construction to bear weight. The key differences lie in their shapes, mounting capabilities, and weight support, tailored to specific electrical installation requirements.
Materials and Construction: Outlet Box vs Ceiling Box
Outlet boxes are typically made from plastic or metal, designed for durability and ease of installation in wall cavities, often featuring multiple knockouts for wiring access. Ceiling boxes are usually constructed from robust metal or heavy-duty plastic to support the weight of lighting fixtures, incorporating reinforced mounting brackets for secure attachment. The construction differences ensure outlet boxes prioritize wiring flexibility while ceiling boxes emphasize load-bearing capacity.
Installation Requirements: Outlet Box vs Ceiling Box
Outlet boxes require secure mounting to wall studs or surfaces and must accommodate wiring for switches or receptacles, ensuring proper grounding and clear access for connections. Ceiling boxes are designed to support lighting fixtures or ceiling fans, necessitating reinforced mounting to structural members capable of bearing additional weight and vibration. Both types must meet National Electrical Code (NEC) standards for box fill capacity, wiring methods, and secure grounding to ensure safe and code-compliant installations.
Load Ratings and Weight Capacity Comparison
Outlet boxes typically have lower load ratings and weight capacities compared to ceiling boxes, as they are designed to securely hold lighter devices such as switches and receptacles. Ceiling boxes are engineered to support heavier fixtures like ceiling fans and chandeliers, often rated to hold up to 50 pounds or more, meeting specific load requirements outlined in electrical codes. Selecting the correct box depends on the fixture's weight and load specifications to ensure safety and compliance.
Electrical Code Compliance: Outlet Boxes vs Ceiling Boxes
Outlet boxes and ceiling boxes differ in their design and installation standards to meet electrical code compliance requirements. Outlet boxes are typically installed vertically to house wiring connections for receptacles and switches, while ceiling boxes are designed to support the weight of lighting fixtures and ceiling fans, requiring reinforcement per NEC guidelines. Ensuring each box type is used appropriately according to NEC Article 314 is essential for safety and code adherence.
Typical Applications for Outlet Boxes and Ceiling Boxes
Outlet boxes are typically used for installing wall-mounted electrical devices such as switches, receptacles, and outlets, providing secure housing and protection for wiring connections. Ceiling boxes are designed to support ceiling-mounted fixtures, including light fixtures, fans, and smoke detectors, offering enhanced structural support for heavier loads. Both box types comply with electrical codes ensuring safe installation tailored to their typical applications in residential and commercial buildings.
Safety Considerations When Choosing the Right Box
Selecting the appropriate outlet box or ceiling box is crucial for electrical safety and code compliance, with outlet boxes typically designed for wall-mounted outlets and switches, while ceiling boxes support fixtures and fans. Proper box depth, material ratings, and secure mounting reduce risks of electrical fires, loose wiring, and overloading. Ensuring compatibility with the electrical device and following local electrical codes enhances overall system reliability and minimizes hazards.
Cost and Availability: Outlet Box vs Ceiling Box
Outlet boxes generally cost less than ceiling boxes due to simpler designs and broader availability in hardware stores. Ceiling boxes often require specific mounting features for light fixtures, making them pricier and less commonly stocked. Budget-conscious projects benefit from choosing outlet boxes for standard electrical needs, while ceiling boxes serve specialized installations.
Choosing the Best Box for Your Project: Expert Recommendations
Outlet boxes and ceiling boxes differ primarily in shape and mounting style, with outlet boxes designed for vertical wall installations and ceiling boxes engineered for horizontal ceiling fixtures. Expert recommendations emphasize selecting a box that matches the fixture's weight and wiring requirements, ensuring compliance with electrical codes and safety standards. Choosing the appropriate box enhances project durability, supports proper fixture installation, and prevents electrical hazards.

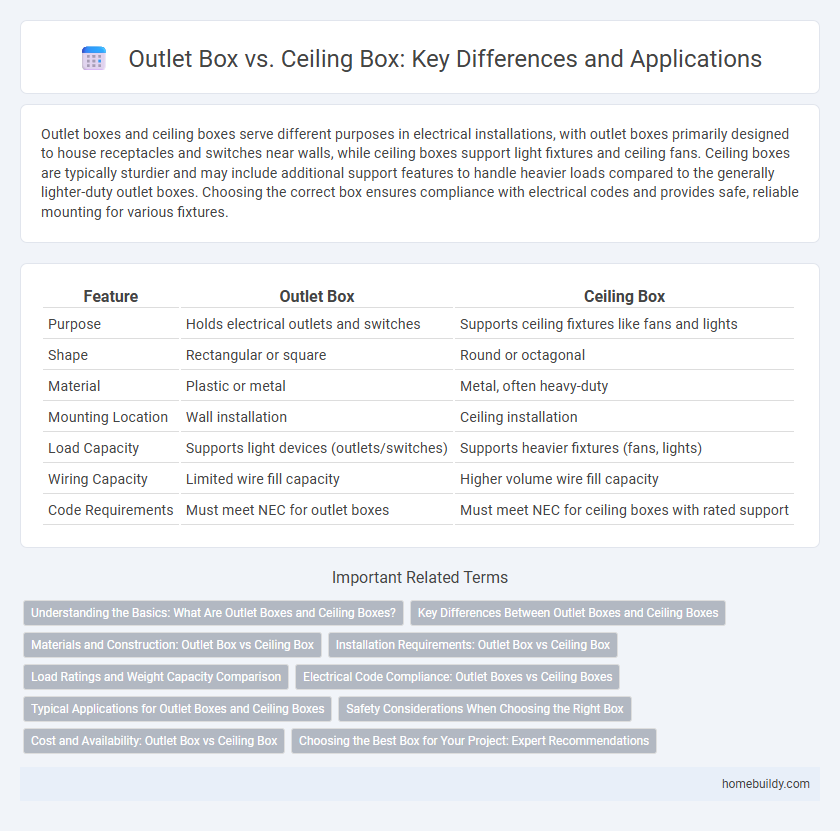

Outlet box vs Ceiling box Infographic
