homebuildy.com Shallow outlet boxes are designed for installations where wall space is limited, providing a compact fit for flush-mounting electrical devices. Deep outlet boxes offer increased capacity to accommodate larger or multiple wiring connections, ensuring safe and organized electrical setups. Choosing between shallow and deep outlet boxes depends on the volume of wiring and the space available within the wall.
Table of Comparison
| Feature | Shallow Outlet Box | Deep Outlet Box |
|---|---|---|
| Depth | 1.5 inches (approx.) | 2.5 to 3.5 inches (approx.) |
| Use Case | Standard wiring, minimal cable capacity | Complex wiring, multiple cables, bulky devices |
| Capacity | Limited wiring space | Increased wiring and device fit |
| Installation | Suitable for shallow walls and thin drywall | Requires deeper wall cavities or adjustments |
| Cost | Generally less expensive | Higher cost due to size and material |
| Application | Simple electrical outlets, switches | GFCI outlets, smart devices, multiple switches |
Introduction to Shallow and Deep Outlet Boxes
Shallow outlet boxes typically have a depth of around 1.5 inches, making them ideal for installations where wall space is limited or thin walls are present. Deep outlet boxes, which often measure 2.5 inches or more in depth, provide extra room for electrical wiring and devices, ensuring safer and more flexible connections. Choosing between shallow and deep outlet boxes depends on factors like electrical code requirements, wall cavity size, and the volume of wiring needed for a particular application.
Key Differences Between Shallow and Deep Outlet Boxes
Shallow outlet boxes typically measure 1.5 inches in depth, making them ideal for mounting close to the wall surface and suitable for low-profile electrical devices. Deep outlet boxes, usually around 2.5 to 3.5 inches deep, accommodate additional wiring, larger connectors, or multiple devices, providing more space and preventing overcrowding. The key difference lies in their depth and capacity, impacting installation flexibility, device compatibility, and code compliance for electrical safety.
When to Use a Shallow Outlet Box
A shallow outlet box is ideal for installations where wall spaces are narrow or for surface-mounted electrical devices requiring minimal enclosure depth, such as switches or low-profile outlets. It is commonly used in residential renovations or drywall applications where wall cavities do not allow for deeper boxes. Choosing a shallow outlet box ensures compliance with electrical codes while maintaining a flush, sleek appearance for light-duty wiring configurations.
When to Use a Deep Outlet Box
Use a deep outlet box when wiring requires extra space to accommodate multiple wires, connectors, or devices, ensuring safe and code-compliant installations. Deep outlet boxes prevent overcrowding, reduce the risk of electrical shorts, and facilitate easier maintenance in complex electrical setups. They are essential for applications involving heavy-duty switches, dimmers, or GFCI outlets where additional internal volume is necessary.
Pros and Cons of Shallow Outlet Boxes
Shallow outlet boxes offer the advantage of being lightweight and easier to install in tight wall cavities or shallow spaces, minimizing wall damage and saving time during electrical projects. However, their limited depth reduces wiring capacity, making them unsuitable for complex or multi-device installations, which can lead to overcrowding and potential safety hazards. Choosing shallow outlet boxes is ideal for simple electrical connections but requires careful consideration of space constraints and wire volume to ensure compliance with electrical codes.
Pros and Cons of Deep Outlet Boxes
Deep outlet boxes offer increased capacity for wiring, making them ideal for installations involving multiple cables or devices that require more space. Their extra depth reduces the risk of overcrowding, which minimizes potential electrical hazards such as short circuits and overheating. However, deep boxes may protrude further from the wall surface, requiring additional wall adjustments and potentially complicating installation in tight spaces.
Electrical Code Requirements for Outlet Box Depth
Shallow outlet boxes generally have a depth of 1.5 inches, suitable for standard wiring situations with minimal conductor fill, while deep outlet boxes range from 2.5 to 3.5 inches, designed to accommodate larger wire bundles or devices like GFCIs. The National Electrical Code (NEC) specifies minimum box volume requirements based on conductor gauge and device count, mandating deeper boxes to prevent overcrowding and maintain safety standards. Proper selection between shallow and deep outlet boxes ensures compliance with NEC Article 314, reducing risks of overheating and wiring damage.
Safety Considerations: Shallow vs. Deep Outlet Boxes
Shallow outlet boxes provide a lower profile but can restrict wire bending and overcrowd connections, increasing potential fire hazards. Deep outlet boxes offer more space, reducing wire strain and improving heat dissipation, which enhances electrical safety. Selecting the appropriate depth based on wire volume and device type is critical for preventing electrical shorts and ensuring compliance with safety codes.
Installation Tips for Shallow and Deep Outlet Boxes
When installing shallow outlet boxes, ensure the wall surface is flush and secure to avoid damaging wiring due to limited space; use low-profile devices to maximize available room. For deep outlet boxes, select appropriate box depth to accommodate bulky wiring and devices, and confirm mounting brackets are firmly anchored to support the added volume. Properly adjusting box position helps maintain code compliance and simplifies electrical connections in both shallow and deep installations.
Choosing the Right Outlet Box for Your Project
Choosing the right outlet box depends on the wall depth and device requirements; shallow outlet boxes are ideal for standard drywall installations with limited space, while deep outlet boxes provide extra room for wiring connections and devices with bulky backs. Consider box volume, measured in cubic inches, to ensure compliance with electrical codes and accommodate the number of wires safely. Selecting the appropriate outlet box enhances installation ease, prevents overcrowding, and maintains electrical safety standards in your project.

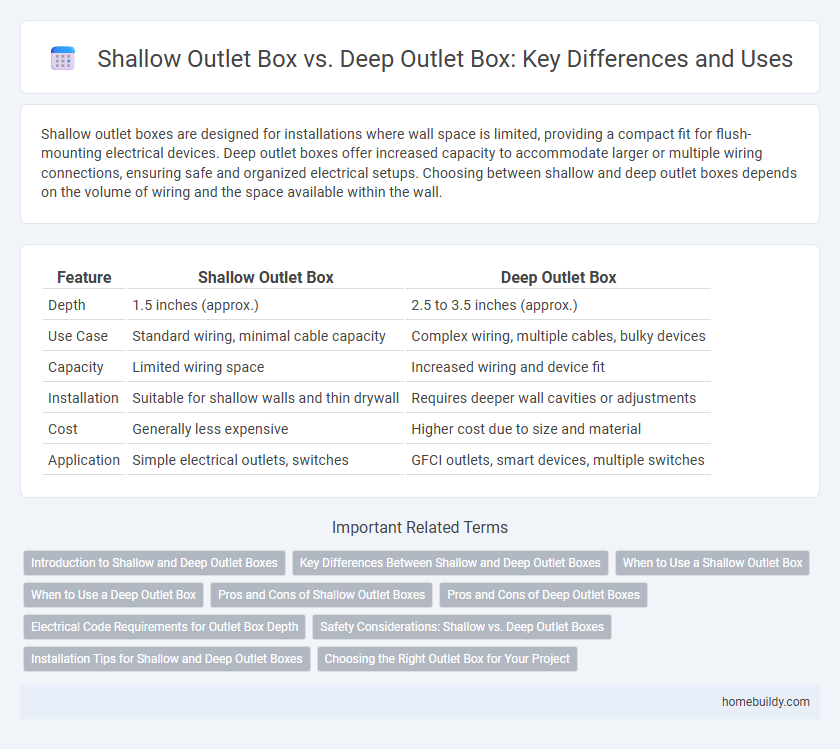

Shallow outlet box vs Deep outlet box Infographic
