homebuildy.com Outlet boxes and new work boxes serve distinct purposes in electrical installations; outlet boxes are typically used in existing walls to house outlets or switches, while new work boxes are designed for installations before drywall is installed. New work boxes feature mounting brackets that attach directly to wall studs, ensuring secure placement during construction, whereas outlet boxes are designed to be installed in finished walls with clamps or wings to grip the drywall. The choice between outlet boxes and new work boxes depends on whether you are working with new or existing construction, affecting ease of installation and compliance with electrical codes.
Table of Comparison
| Feature | Outlet Box | New Work Box |
|---|---|---|
| Installation | Used in existing walls, retrofitted into openings | Installed during framing, secured to studs |
| Material | Metal or plastic | Metal or plastic |
| Mounting | Mounted to wall surface or old construction | Mounted flush with wall framing |
| Usage | Renovations and repairs | New construction projects |
| Cost | Typically higher due to retrofitting | Generally lower in new builds |
| Code Compliance | Must meet retrofit standards | Meets standard code for new work |
Outlet Box vs New Work Box: Key Differences
Outlet boxes are designed for retrofit or existing constructions, featuring mounting brackets that attach to drywall or plaster surfaces without requiring access to wall studs. New work boxes are intended for new construction, securely fastened to wall studs before drywall installation, offering greater stability and easier wiring access during the building phase. The main differences lie in installation timing, mounting method, and suitability for either finished walls or open framing.
When to Use an Outlet Box vs a New Work Box
Outlet boxes are best used for retrofit projects where walls are already finished, providing a secure enclosure for electrical connections without the need for additional framing. New work boxes are specifically designed for installations in unfinished walls or new construction, allowing them to be nailed or screwed directly to studs before drywall is installed. Choosing between an outlet box and a new work box depends on whether the project involves replacing existing fixtures or building new electrical setups from scratch.
Pros and Cons of Outlet Boxes
Outlet boxes offer easy installation in existing walls without the need for extensive remodeling, making them ideal for retrofit projects. However, they may provide limited space for wiring compared to new work boxes, which are designed for open-wall installation during construction and allow more room for connections. Outlet boxes can be less secure in structural terms than new work boxes, which are typically anchored to wall studs for enhanced stability.
Pros and Cons of New Work Boxes
New work boxes offer easy installation during the initial construction phase, providing secure mounting for electrical outlets and switches in fresh walls. Their advantages include compatibility with drywall installation and adjustable depth to accommodate wall thickness, while drawbacks involve limited reuse options if remodeling occurs. These boxes are typically more efficient for new constructions but less flexible for retrofit applications compared to old work boxes.
Installation Methods Compared: Outlet Boxes vs New Work Boxes
Outlet boxes are designed for retrofit applications where walls are already finished, allowing installation by cutting into existing surfaces and securing the box with clamps or nails. New work boxes are intended for installation during framing, attaching directly to wall studs before drywall is applied, ensuring a sturdy and precise fit. The key difference lies in accessibility during installation, with outlet boxes suited for post-construction setups and new work boxes optimized for pre-drywall construction phases.
Cost Comparison: Outlet Box and New Work Box
Outlet boxes generally cost less than new work boxes due to their simpler design and ease of installation in existing walls. New work boxes, designed for installation before drywall, often require more material and labor, increasing overall expenses. Budgeting for electrical projects should consider these cost differences alongside installation requirements to optimize expenditure.
Safety Considerations for Outlet and New Work Boxes
Outlet boxes and new work boxes differ significantly in safety considerations, with outlet boxes typically offering reduced risk of electrical shock due to their secure attachment to existing structures and pre-wiring standards. New work boxes provide enhanced safety through robust installation on unfinished walls, ensuring proper grounding and minimizing wire damage during construction. Both types must comply with National Electrical Code (NEC) regulations to prevent fire hazards and ensure long-term electrical system reliability.
Material Types: Outlet Boxes vs New Work Boxes
Outlet boxes are commonly made from plastic, steel, or aluminum, offering durability and electrical insulation for various installations. New work boxes typically use galvanized steel or plastic, designed to attach to wall studs during construction for enhanced stability and grounding. Both materials ensure compliance with electrical codes, but choice depends on environmental conditions and installation stages.
Compatibility with Wiring Devices
Outlet boxes and new work boxes differ significantly in compatibility with wiring devices; outlet boxes typically support retrofit applications and fit standard switches and outlets without structural adjustments. New work boxes are designed for installation during framing, accommodating a wider range of wiring devices, including larger or multi-gang configurations, due to their flexible mounting options. Understanding these compatibility factors ensures proper electrical connections and device fit for both renovation and new construction projects.
Choosing the Right Electrical Box for Your Project
Choosing the right electrical box is crucial for ensuring safety and compliance with building codes; outlet boxes are typically used for existing walls and retrofits, while new work boxes are designed for installation in open walls or ceilings before drywall is put up. Outlet boxes often feature mounting brackets suited for attaching to drywall or masonry, allowing easy installation without needing access inside the wall cavity. New work boxes include integral mounting ears or flanges to secure directly to wall studs, providing a more stable and secure fit for new construction projects.

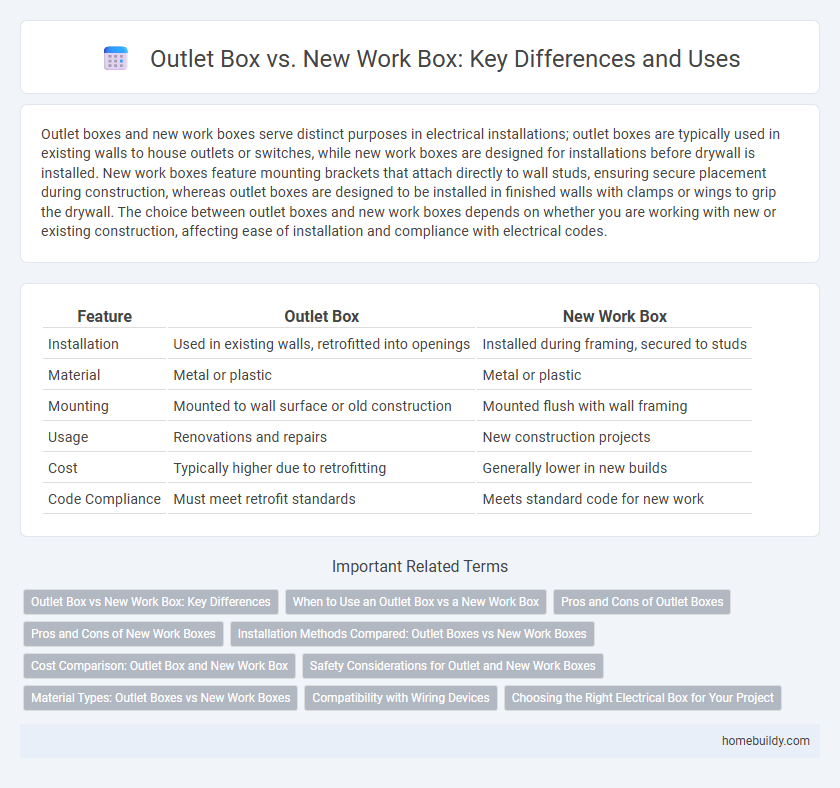

Outlet box vs New work box Infographic
