homebuildy.com Spread footing column bases distribute structural loads through isolated pads beneath individual columns, ideal for moderate loads and smaller structures. Mat footing column bases, or raft foundations, cover the entire building footprint, providing uniform support for heavy loads or weak soil conditions. Choosing between spread and mat footing depends on load intensity, soil bearing capacity, and overall structural design requirements.
Table of Comparison
| Feature | Spread Footing Column Base | Mat Footing Column Base |
|---|---|---|
| Definition | Individual footing supporting a single column | Large slab supporting multiple columns |
| Load Distribution | Distributes load directly beneath each column | Distributes load uniformly over entire mat |
| Soil Suitability | Suitable for strong, uniform soils | Preferred for weak or variable soils |
| Structural Complexity | Simple design and construction | More complex and requires detailed analysis |
| Cost | Generally lower cost for isolated columns | Higher cost due to larger concrete volume |
| Settlement Control | Limited; potential differential settlement | Better control over differential settlement |
| Application | Low to moderate loads, spaced columns | Heavy loads, closely spaced or grouped columns |
Introduction to Column Base Foundations
Column base foundations transfer structural loads to the soil, with spread footing and mat footing being two primary types. Spread footing foundations support individual columns by distributing loads over a wider area, typically used for lighter loads and stable soil conditions. Mat footing foundations, also known as raft foundations, provide support by spreading the load of multiple columns over a large slab, ideal for heavy loads or weak soils requiring uniform load distribution.
Overview of Spread Footing Column Bases
Spread footing column bases distribute loads from a structure's columns directly to the soil through a broad, shallow concrete pad, optimizing load transfer and minimizing settlement. Designed to handle lighter to moderate loads, spread footings are typically more cost-effective and simpler to construct compared to mat footing bases, which cover a larger area for heavier load distribution. Key parameters include soil bearing capacity, footing size, and column load, with emphasis on ensuring uniform stress distribution to prevent differential settlement.
Overview of Mat Footing Column Bases
Mat footing column bases distribute structural loads over a large, continuous concrete slab, providing enhanced stability in weak or expansive soils compared to spread footing column bases. This type of foundation minimizes differential settlement by supporting multiple columns simultaneously, making it ideal for heavy load conditions and closely spaced columns. Mat footings also allow for uniform load transfer, reducing stress concentrations and improving overall structural performance in complex building designs.
Key Design Principles: Spread vs. Mat Footings
Spread footing column bases distribute column loads directly to the soil through isolated pads, optimizing load transfer for moderate loads and reducing excavation depth. Mat footing column bases support multiple columns with a large continuous slab, ideal for high loads or weak soils requiring load distribution over a wider area. Design principles emphasize soil bearing capacity, column load intensity, and structural stiffness to ensure foundation stability and minimize differential settlement.
Load Distribution Comparison
Spread footing column bases distribute loads directly to the soil through individual pads beneath each column, providing concentrated support ideal for moderate loads and uniform soil conditions. Mat footing column bases disperse loads over a large slab covering multiple columns, reducing stress on weaker soils by spreading the load across a wider area, which is beneficial for heavy loads or variable soil conditions. The load distribution efficiency of mat footings reduces differential settlement risks compared to spread footings, enhancing structural stability in complex foundation scenarios.
Soil Conditions and Suitability
Spread footing column bases are ideal for stable, uniform soil conditions with good bearing capacity, as they distribute loads over a smaller area. Mat footing column bases perform better in weak or highly compressible soils, spreading loads across a large area to minimize settlement and differential movement. Soil investigations including bearing capacity and settlement analysis determine the optimal column base type for structural stability.
Construction Methods and Techniques
Spread footing column bases involve constructing individual concrete pads beneath each column, requiring excavation and formwork tailored to isolated loads and ensuring proper reinforcement placement for load transfer. Mat footing column bases use a continuous slab that supports multiple columns, necessitating extensive excavation, comprehensive steel reinforcement grids, and careful slab thickness control to distribute loads evenly across the site. Construction techniques for spread footings emphasize localized soil compaction and precise alignment, whereas mat footings demand meticulous concrete pouring and curing practices to prevent differential settlement.
Cost Implications and Material Efficiency
Spread footing column bases typically offer lower initial costs and material usage for smaller loads and isolated columns due to their simpler design and reduced concrete volume. Mat footing column bases, while more expensive upfront, provide better load distribution and material efficiency for heavy or closely spaced columns, minimizing differential settlement and reducing the need for deep foundations. Cost implications favor spread footings in light-load scenarios, whereas mat footings optimize material usage and structural performance in complex or high-load conditions.
Structural Performance and Durability
Spread footing column bases provide concentrated load transfer ideal for structures with moderate loads, ensuring stability through localized soil bearing capacity, while mat footing column bases distribute loads over a larger area, reducing differential settlement in weak or expansive soils. Structural performance of spread footings excels in well-compacted sites with uniform soil conditions, whereas mat footings enhance durability by minimizing stress concentrations and accommodating variable load patterns in complex foundation scenarios. The choice between spread and mat footing column bases significantly affects long-term durability, with mat footings offering superior resistance to soil movement and enhanced structural integrity in challenging subsurface environments.
Applications and Selection Criteria
Spread footing column bases are typically used for structures with moderate loads and stable soil conditions, providing economical and straightforward support for individual columns. Mat footing column bases serve well in situations with heavy loads or weak soil where load distribution across a large area is essential, preventing differential settlement. Selection criteria hinge on soil bearing capacity, structural load, site accessibility, and economic feasibility, with spread footings favored for isolated columns and mat footings suitable for closely spaced columns or where load amalgamation is necessary.

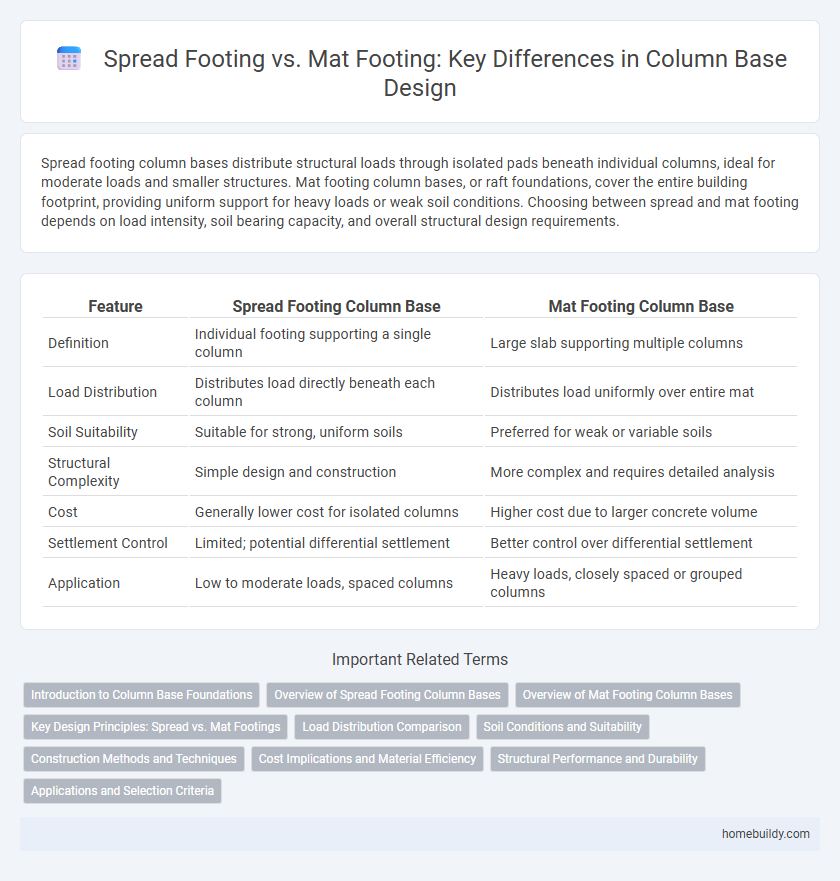

spread footing column base vs mat footing column base Infographic
