homebuildy.com Slab-on-grade foundations provide a solid, continuous concrete surface that supports the structure while minimizing excavation and reducing construction time. Raised column bases elevate columns above the ground, protecting against moisture and potential flooding while allowing for better ventilation and easier access for maintenance. Choosing between slab-on-grade and raised column bases depends on soil conditions, climate, and structural requirements.
Table of Comparison
| Feature | Slab-on-Grade | Raised Column Base |
|---|---|---|
| Definition | Concrete slab poured directly on the ground. | Columns elevated above ground on footings or piers. |
| Load Distribution | Evenly spreads load across the slab surface. | Load concentrated on individual column footings. |
| Moisture Protection | Requires vapor barrier; risk of ground moisture. | Elevated base reduces moisture exposure. |
| Cost | Generally lower cost due to simpler construction. | Higher cost from added materials and labor. |
| Thermal Performance | Can retain heat; risk of ground cold transfer. | Better airflow underneath improves insulation. |
| Suitability | Ideal for stable, well-drained soils and light loads. | Best for uneven terrain, heavy loads, or flood zones. |
| Installation Time | Faster installation with fewer components. | Longer due to foundation excavation and column setting. |
Introduction to Column Base Systems
Column base systems are essential in transferring structural loads from columns to foundations, with slab-on-grade and raised column bases serving different construction needs. Slab-on-grade bases embed the column directly into a concrete slab, providing stability and cost-effectiveness for low-rise buildings. Raised column bases use pedestals or footings to elevate the column above the slab, enhancing load distribution and permitting utilities or insulation beneath the structure.
Overview of Slab-on-Grade Foundations
Slab-on-grade foundations consist of a concrete slab poured directly on the ground, providing a stable and cost-effective base for residential and light commercial buildings. This type of foundation offers excellent resistance to ground moisture and minimizes excavation compared to raised column bases, which elevate structural columns above grade for increased access and ventilation. Slab-on-grade is ideal in regions with stable soil conditions and moderate climates, ensuring durability and ease of construction.
Raised Column Base: Definition and Types
A raised column base is an elevated structural support designed to lift columns above the slab-on-grade level, preventing direct contact with concrete and moisture. Common types include steel pedestals, concrete piers, and adjustable base plates, each providing enhanced stability and load distribution for varying construction needs. This design improves durability by minimizing corrosion risks and facilitating easier access for inspections and maintenance.
Comparative Structural Performance
Slab-on-grade column bases provide direct load transfer to the ground, offering enhanced stability and reduced settlement risk in stable soil conditions. Raised column bases elevate structural elements, improving resistance to moisture and potential ground movement but may introduce additional moments requiring reinforcement. Comparative structural performance depends on soil type, environmental exposure, and load distribution, where slab-on-grade excels in uniform load transfer while raised bases better accommodate differential settlement and environmental protection.
Site Suitability and Soil Considerations
Slab-on-grade column bases are ideal for sites with stable, well-draining soils, reducing excavation and providing strong load distribution directly on compacted ground. Raised column bases are better suited for areas with poor soil conditions, high water tables, or expansive clays, offering improved protection against moisture and soil movement by elevating the column above the ground. Proper soil analysis, including bearing capacity and moisture content, guides the decision between slab-on-grade and raised column bases for long-term structural integrity.
Installation Process: Slab-on-Grade vs Raised Base
Slab-on-grade column bases involve pouring concrete directly at ground level, creating a seamless integration between the slab and column foundation, which simplifies alignment and reduces installation time. Raised column bases require precise formwork and support mechanisms to elevate the base above the slab, adding complexity and necessitating additional curing and reinforcement steps. The slab-on-grade method typically offers faster installation with fewer materials, while raised bases provide enhanced protection against moisture and potential ground movement.
Cost Implications and Budget Analysis
Slab-on-grade column bases generally offer lower initial construction costs due to reduced excavation and formwork requirements, making them suitable for budget-sensitive projects. Raised column bases increase material and labor expenses because of additional concrete volume, reinforcement needs, and formwork complexity, impacting the overall budget significantly. A detailed cost analysis should consider long-term factors such as load distribution efficiency and potential maintenance savings associated with each foundation type.
Thermal and Moisture Control Differences
Slab-on-grade column bases provide direct contact with the ground, enhancing thermal mass and reducing heat loss through the foundation but pose higher risks of moisture intrusion without proper vapor barriers and drainage. Raised column bases elevate structural elements above the slab, improving air circulation and moisture control by preventing direct soil contact, which helps mitigate mold growth and corrosion. Effective thermal insulation in raised bases limits cold bridging, while slab-on-grade designs require thorough sealing and insulation to maintain energy efficiency.
Maintenance Requirements and Long-Term Durability
Slab-on-grade column bases require less routine maintenance due to their integrated design with the surrounding concrete slab, minimizing exposure to moisture and soil movement that can lead to corrosion or shifting. Raised column bases, while allowing easier inspection and replacement of base plates and anchor bolts, often demand more frequent maintenance to address potential corrosion and protect against water infiltration. Long-term durability favors slab-on-grade bases in stable soil conditions, whereas raised bases offer better resilience in environments prone to flooding or soil erosion by keeping critical components elevated and dry.
Best Use Cases: Slab-on-Grade vs Raised Column Base
Slab-on-grade column bases are ideal for structures requiring direct load transfer to the ground with minimal excavation, commonly used in residential buildings and warehouses on stable soil conditions. Raised column bases offer superior moisture protection and are best suited for environments prone to flooding or where ventilation beneath the floor is necessary, such as in coastal or humid regions. Selecting the appropriate base depends on site drainage, soil stability, and structural load requirements to ensure durability and performance.

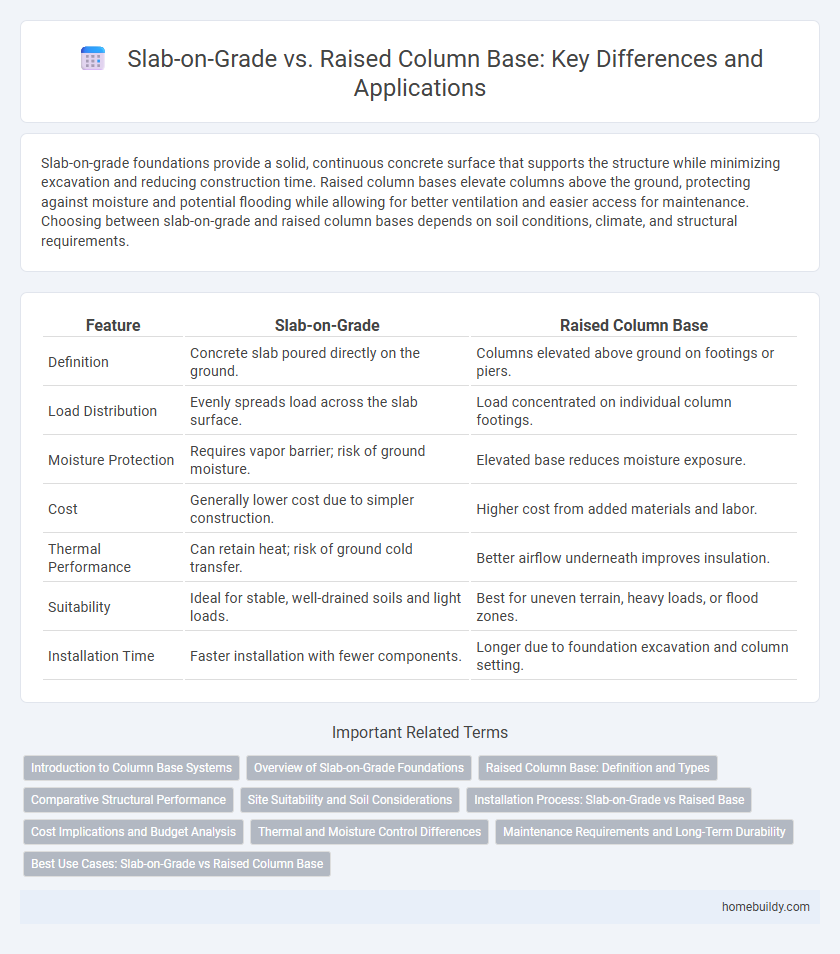

slab-on-grade vs raised column base Infographic
