homebuildy.com Anchor bolt bases provide a secure connection by embedding threaded bolts into concrete, allowing precise alignment and easy adjustment of columns. Dowel bar bases use smooth or deformed bars embedded in both the column and foundation to transfer shear loads and accommodate slight movements. While anchor bolt bases offer superior tensile resistance and installation flexibility, dowel bar bases excel in shear load transfer and are ideal for applications requiring load continuity.
Table of Comparison
| Feature | Anchor Bolt Base | Dowel Bar Base |
|---|---|---|
| Primary Use | Secures columns to concrete foundations using bolts embedded in concrete. | Transfers load between concrete slabs or structural elements through bars embedded in concrete. |
| Load Transfer | Transfers tensile and shear loads via bolted connection. | Transfers shear loads and reduces differential settlement across joints. |
| Installation Complexity | Requires precise bolt positioning before concrete pour. | Requires accurate dowel bar alignment during slab construction. |
| Flexibility | Less flexible; bolts need exact placement. | Allows slight movement; accommodates thermal expansion. |
| Typical Applications | Structural steel columns, heavy machinery foundations. | Concrete pavements, bridge decks, precast panels. |
| Cost | Moderate, depending on bolt size and grade. | Generally lower, with simple steel bars. |
| Durability | High corrosion resistance with proper coatings. | Durable; depends on dowel coating and concrete quality. |
Introduction to Column Base Connections
Column base connections anchor structural columns to foundations, ensuring stability and load transfer. Anchor bolt bases use embedded bolts fixed in concrete to secure steel columns, offering flexibility and ease of installation. Dowel bar bases rely on steel bars cast into the foundation to provide direct load transfer and enhanced structural continuity.
Overview of Anchor Bolt Base Systems
Anchor bolt base systems secure structural columns by embedding threaded bolts into concrete foundations, providing precise alignment and strong load transfer. These systems enable efficient installation and adjustment of steel columns, ensuring stability under shear, tension, and compression forces. Compared to dowel bar base systems, anchor bolt bases offer greater flexibility in positioning while maintaining robust anchorage for vertical and lateral loads.
Overview of Dowel Bar Base Systems
Dowel bar base systems provide enhanced load transfer between concrete slabs and support columns by utilizing steel bars embedded in both the slab and column base, improving structural stability and minimizing differential settlement. These systems offer superior shear resistance and distribute stresses more evenly compared to traditional anchor bolt bases, reducing the risk of cracking and prolonging pavement life. Commonly used in heavy-duty industrial floors and bridge supports, dowel bar bases facilitate better alignment and increased durability under cyclic loading conditions.
Key Differences: Anchor Bolt vs. Dowel Bar Bases
Anchor bolt bases secure columns by embedding threaded bolts into concrete, providing strong lateral and uplift resistance essential for structural stability, while dowel bar bases use smooth bars to transfer shear forces and allow slight movement between connected elements. Anchor bolts are ideal for fixed connections needing rigidity, whereas dowel bars accommodate expansion and contraction, reducing stress at joints. The choice between anchor bolt and dowel bar bases impacts load transfer efficiency, vibration resistance, and overall durability of column foundations.
Load Transfer Mechanisms
Anchor bolt bases transfer loads primarily through tension and shear forces resisted by the embedded bolts and the surrounding concrete, ensuring stability under uplift and lateral loads. Dowel bar bases rely on embedded dowel bars to transfer loads via shear between connected concrete elements, promoting efficient load distribution and minimizing differential settlement. Both bases optimize structural integrity by leveraging distinct load transfer mechanisms tailored to their embedment and connection designs.
Installation Process Comparison
The installation process of anchor bolt bases involves securing anchor bolts into concrete foundations before setting the column base plate, ensuring precise alignment for structural stability. In contrast, dowel bar bases require inserting steel dowel bars into pre-formed holes within the concrete to connect adjacent concrete elements, facilitating load transfer across joints. Anchor bolt bases demand meticulous positioning and curing time for concrete, whereas dowel bar bases emphasize accurate dowel insertion and alignment for effective structural continuity.
Structural Performance Analysis
Anchor bolt bases provide superior structural performance analysis in resisting lateral and uplift forces due to their embedded threaded rods, offering enhanced load transfer and stability in column base connections. Dowel bar bases excel in minimizing differential settlement by allowing slight rotational movement, improving stress distribution under dynamic loads in concrete structures. Comparative studies indicate anchor bolt bases deliver higher rigidity and resistance to moment forces, whereas dowel bar bases are preferred for accommodating thermal expansion and reducing cracking in expansive soils.
Applications and Suitability
Anchor bolt bases are ideal for securing columns in structural steel frameworks and machinery installations, offering robust resistance to shear and tension forces. Dowel bar bases are commonly used in concrete pavement joints and slab connections, providing effective load transfer and minimizing differential settlement. Selection depends on the specific application requirements, with anchor bolts suited for heavy-duty steel connections and dowel bars optimized for concrete structural stability.
Cost and Construction Considerations
Anchor bolt bases typically incur higher initial costs due to precise alignment and embedded hardware requirements, while dowel bar bases offer a cost-effective solution with simpler installation and reduced labor. Construction considerations for anchor bolt bases include the need for accurate placement to ensure structural integrity, whereas dowel bar bases provide flexibility and faster assembly, minimizing on-site adjustments. Choosing between the two depends on project budget constraints and construction schedule priorities, with dowel bars favoring speed and lower costs.
Choosing the Optimal Column Base System
Choosing the optimal column base system involves evaluating load capacity, installation ease, and structural compatibility; anchor bolt bases provide superior adjustability and are ideal for precise alignment in steel structures. Dowel bar bases excel in transferring shear forces and are typically favored in concrete construction due to their robust mechanical interlock with the foundation. Selecting the appropriate system hinges on project-specific requirements such as load characteristics, environmental conditions, and long-term durability.

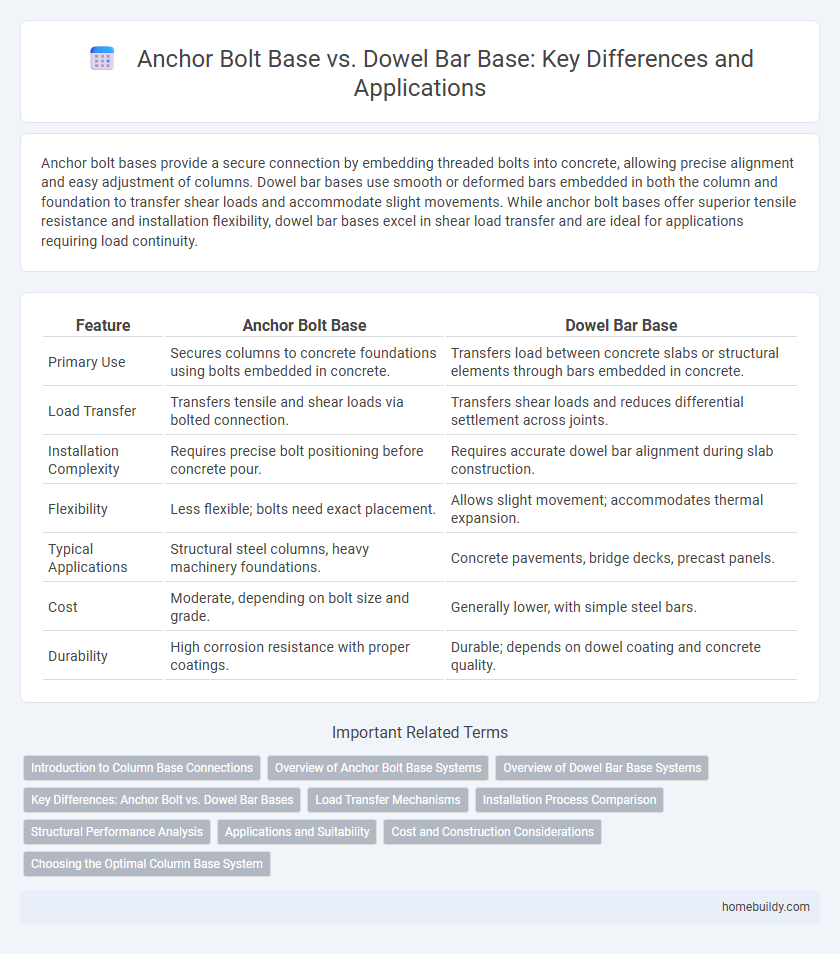

anchor bolt base vs dowel bar base Infographic
