homebuildy.com Isolated column footings support a single column, distributing the load directly to the soil beneath, ideal for structures with widely spaced columns and moderate loads. Combined column footings serve two or more columns, sharing the load over a larger area, which is efficient when columns are closely spaced or individual footings overlap. Choosing between isolated and combined footings depends on load distribution, soil bearing capacity, and column spacing requirements.
Table of Comparison
| Feature | Isolated Column Footing | Combined Column Footing |
|---|---|---|
| Definition | Independent footing supporting a single column. | Shared footing supporting two or more columns. |
| Suitability | Used for columns with moderate loads and adequate soil bearing capacity. | Used when columns are close together or soil has low bearing capacity. |
| Load Distribution | Transfers load from one column to soil. | Transfers combined loads from multiple columns to soil. |
| Footing Size | Smaller in area, depends on individual column load. | Larger area, designed for combined column loads. |
| Cost | Generally lower due to simpler design. | Potentially higher due to increased size and reinforcement. |
| Construction Complexity | Simple construction, straightforward formwork. | More complex, requires careful alignment and reinforcement detailing. |
| Use Cases | Ideal for widely spaced columns and strong soil. | Preferred for closely spaced columns or weak soil conditions. |
Introduction to Column Footings
Column footings provide essential support by transferring structural loads from columns to the ground, ensuring stability and preventing settlement. Isolated column footing supports a single column with a separate, square or rectangular concrete pad, ideal for moderate loads and spaced columns. Combined column footing connects two or more columns with a continuous base, suitable when columns are closely spaced or load distribution requires joint support.
Overview of Isolated Column Footings
Isolated column footings consist of individual pads supporting single columns, designed to transfer structural loads directly to the soil, typically used when columns are spaced far apart. They provide economical and simple foundation solutions by distributing loads evenly underneath each column, minimizing soil settlement. Compared to combined footings, isolated footings are easier to construct and require less excavation but are suitable only when soil bearing capacity is adequate and column loads are relatively moderate.
Overview of Combined Column Footings
Combined column footings support multiple columns by distributing load over a larger area, suitable for closely spaced columns or weak soil conditions. This type of footing reduces differential settlement risks and provides stability when individual isolated footings overlap or are impractical. Structural engineers design combined footings to optimize material usage and ensure even load transfer between adjacent columns.
Key Differences Between Isolated and Combined Footings
Isolated column footings support individual columns separately, typically used when columns are spaced sufficiently apart to prevent load overlap, ensuring direct transfer of column loads to the soil with minimal reinforcement. Combined footings, on the other hand, serve two or more columns simultaneously, ideal when columns are closely spaced or soil bearing capacity is low, distributing loads more efficiently to prevent differential settlement. The key differences include load distribution, spacing requirements, and structural complexity, with isolated footings being simpler and combined footings requiring more detailed design and reinforcement.
Criteria for Selecting Footing Type
Criteria for selecting footing type include soil bearing capacity, column load, and spacing between columns. Isolated column footings are preferred for light loads and widely spaced columns in stable soil conditions. Combined footings are suitable when columns are closely spaced or when the soil has low bearing capacity requiring load distribution over a larger area.
Structural Advantages of Isolated Footings
Isolated column footings provide superior load distribution by supporting individual columns, minimizing stress on soil and reducing differential settlement risks. These footings simplify construction and allow for easier inspection and repair compared to combined footings. Their design efficiency is ideal for sites with moderate load conditions and uniform soil bearing capacity, ensuring structural stability and cost-effectiveness.
Structural Benefits of Combined Footings
Combined column footings distribute loads from multiple columns more effectively than isolated footings, reducing differential settlement and improving structural stability. They provide enhanced load-bearing capacity by sharing soil pressure and minimizing bearing stress on weak or closely spaced columns. This improves foundation performance in areas with limited soil strength or high load demands, optimizing overall structural integrity.
Cost Considerations: Isolated vs Combined Footings
Isolated column footings typically incur lower initial costs due to simpler formwork and reduced excavation requirements, making them suitable for light to moderate load conditions. Combined column footings, while more expensive upfront because of their larger size and increased reinforcement needs, offer better load distribution and are cost-effective for closely spaced columns supporting heavy loads. Evaluating site conditions and structural demands is crucial to optimize overall project expenditure between isolated and combined footings.
Common Applications in Construction
Isolated column footings are commonly used in constructions where individual columns carry relatively light loads and are spaced far apart, such as in residential buildings and small commercial structures. Combined column footings are preferred when columns are closely spaced or when soil-bearing capacity is low, often found in industrial buildings and heavy-load warehouses. These footings efficiently distribute loads over a larger area, preventing differential settlement in clustered column arrangements.
Conclusion: Choosing the Right Footing for Your Project
Isolated column footings are ideal for structures with evenly spaced columns and moderate load requirements, offering cost-effective and simple construction. Combined column footings suit closely spaced columns or heavy loads, providing enhanced stability and load distribution. Selecting the right footing depends on soil conditions, load demands, and column spacing to ensure structural safety and economic efficiency.

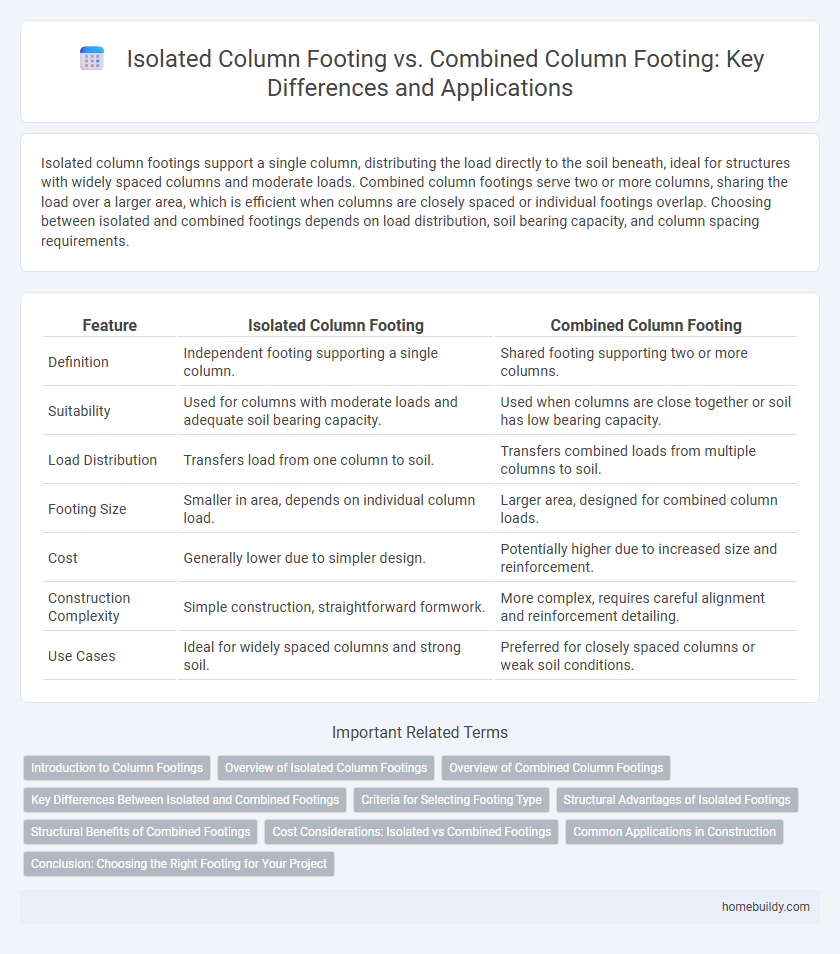

isolated column footing vs combined column footing Infographic
