homebuildy.com Anchor bolt setting involves precisely positioning and securing the bolts in concrete before it fully cures, ensuring alignment and structural integrity. Anchor bolt grouting occurs after setting, filling any voids around the bolt with grout to enhance stability and load distribution. Proper coordination between setting and grouting is crucial for the long-term performance of anchored structures.
Table of Comparison
| Feature | Anchor Bolt Setting | Anchor Bolt Grouting |
|---|---|---|
| Definition | Direct insertion of anchor bolts into pre-drilled holes | Filling drilled holes around anchor bolts with grout for enhanced bonding |
| Installation Time | Faster, simple placement | Longer, requires grout curing time |
| Load Capacity | Moderate load transfer | Higher load capacity due to improved bonding |
| Durability | Lower resistance to corrosion and loosening | Improved durability and corrosion resistance |
| Cost | Lower material and labor cost | Higher initial cost due to grout materials and labor |
| Applications | Light to moderate structural loads | Heavy structural loads, seismic zones, and critical anchoring |
Introduction to Anchor Bolt Setting and Grouting
Anchor bolt setting involves accurately positioning and embedding anchor bolts into concrete or structural elements before the concrete cures, ensuring secure fastening points for machinery or structural connections. Anchor bolt grouting is the process of filling the annular space between the anchor bolt and the drilled hole with a high-strength grout, enhancing load transfer and reducing vibration or movement. Both methods are critical for achieving optimal stability, durability, and structural integrity in construction and heavy equipment installations.
Definition and Function of Anchor Bolt Setting
Anchor bolt setting refers to the precise placement and alignment of anchor bolts within concrete or masonry structures, ensuring structural stability and load transfer. This process involves embedding the bolts at designated positions before concrete pouring, allowing for secure attachment of structural elements. Anchor bolt grouting, in contrast, involves filling the space between the bolt and the drilled hole with grout to enhance bond strength and prevent corrosion, but setting is critical for initial positional accuracy and load distribution.
Overview of Anchor Bolt Grouting Techniques
Anchor bolt grouting techniques involve filling the space between the anchor bolt and the drilled hole with a high-strength, non-shrink grout to improve load transfer and corrosion protection. Common materials include epoxy, cementitious, and chemical grouts, each selected based on structural requirements and environmental conditions. Proper grouting ensures enhanced bond strength, durability, and resistance to dynamic and static loads in construction applications.
Key Differences: Setting vs Grouting
Anchor bolt setting involves positioning and securing the bolt in a pre-drilled hole or formwork before concrete placement, ensuring proper alignment and embedment depth. Anchor bolt grouting, on the other hand, refers to filling the space between the bolt and the hole with grout after positioning, which enhances load transfer and corrosion protection. The key difference lies in setting as the initial placement process, whereas grouting focuses on reinforcing and stabilizing the bolt within the concrete structure.
Material Selection for Setting and Grouting
Material selection for anchor bolt setting typically involves high-strength epoxy or polyester resin for superior adhesion and load transfer, ensuring stability within concrete or masonry substrates. For anchor bolt grouting, non-shrink, high-strength cementitious or polymer-modified grouts are preferred to provide durability, chemical resistance, and effective stress distribution around the bolt. Choosing appropriate materials based on environmental conditions and load requirements enhances the performance and longevity of the anchor bolt installation.
Installation Procedures for Anchor Bolt Setting
Anchor bolt setting requires precise alignment and secure placement in wet concrete before it cures to ensure structural stability. Installation procedures involve positioning the bolt accurately using templates or jigs, then verifying verticality and embedment depth per engineering specifications. Proper anchoring prevents movement during concrete curing, maintaining load-bearing capacity and safety requirements.
Step-by-Step Guide to Anchor Bolt Grouting
Anchor bolt grouting involves a precise process to ensure structural stability and load transfer, starting with thorough cleaning of the drilled hole and bolt surface to remove debris and dust. A high-strength, non-shrink grout is then mixed and carefully poured or injected into the hole around the anchor bolt, ensuring complete encapsulation to avoid voids and gaps. Proper curing time must be maintained based on grout specifications to achieve optimal bond strength and durability in construction applications.
Advantages and Disadvantages of Each Method
Anchor bolt setting allows for precise adjustment and immediate fixation, offering faster installation and lower initial costs, but it may lack optimal load distribution and durability under dynamic conditions. Anchor bolt grouting enhances structural integrity by filling voids around the bolt, improving load transfer and resistance to vibrations, though it requires longer curing times and higher labor efforts. Selecting between setting and grouting depends on project requirements for strength, installation speed, and environmental conditions.
Common Applications and Industry Standards
Anchor bolt setting is commonly used in construction for securing structural elements to concrete foundations, ensuring precise placement and alignment according to industry standards like ACI 355.2 and ASTM F1554. Anchor bolt grouting enhances load transfer and corrosion protection by filling voids around the bolt, typically applied in heavy-duty industrial settings such as power plants and bridge construction. Both methods comply with standards ensuring structural integrity and safety, with grout selection guided by ASTM C1107 for performance under dynamic and static loads.
Best Practices for Optimal Anchor Bolt Performance
Anchor bolt setting requires precise alignment and embedment depth to ensure structural stability and load transfer efficiency, while anchor bolt grouting enhances durability and corrosion resistance by filling voids and securing the bolt in place. Best practices include using high-quality, non-shrink grout with proper curing time and consistent mixing to prevent voids, and verifying anchor positioning before grouting to avoid misalignment issues. Regular inspection and adherence to manufacturer specifications and industry standards like ACI 355.2 optimize anchor bolt performance in concrete foundations.

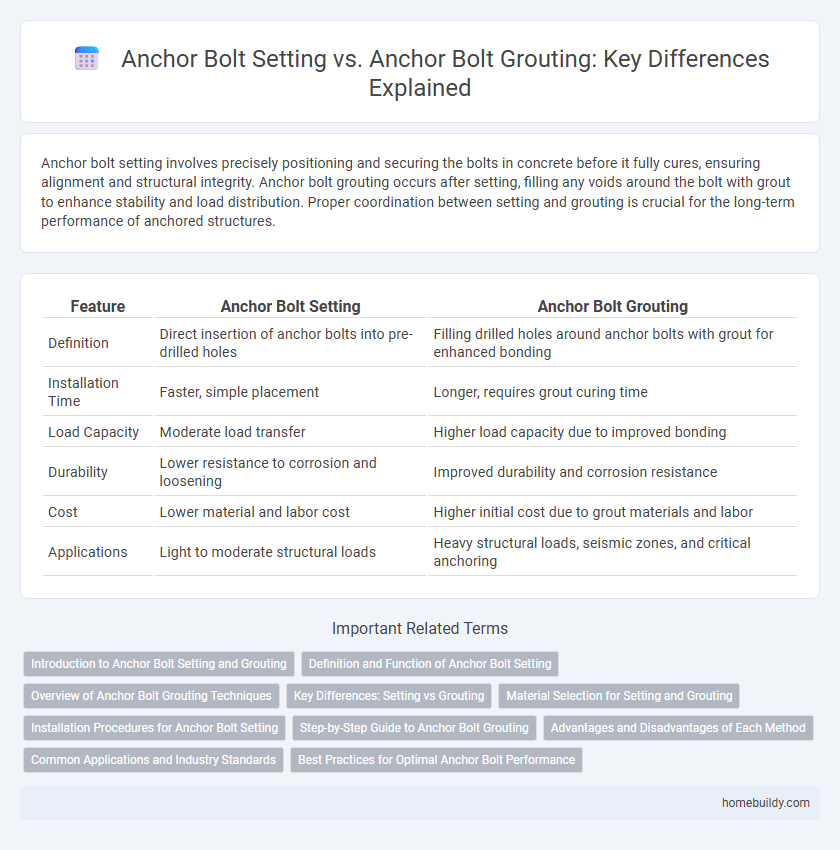

anchor bolt setting vs anchor bolt grouting Infographic
