homebuildy.com Anchor bolts are embedded into concrete to securely hold structural elements by providing a fixed point of attachment, while through bolts pass completely through a material or structure, fastened on the opposite side with a nut. Anchor bolts offer superior resistance to tension and shear forces within concrete bases, making them ideal for heavy-duty applications. Through bolts provide versatility for fastening materials where access to both sides is possible, but typically lack the same load-bearing capacity in concrete as anchor bolts.
Table of Comparison
| Feature | Anchor Bolt | Through Bolt |
|---|---|---|
| Installation | Embedded in concrete or masonry | Passes completely through the material |
| Load Handling | Effective for shear and tension loads | Handles higher tensile and shear loads |
| Common Use | Securing base plates, structural supports | Heavy machinery anchoring, structural connections |
| Installation Time | Moderate, requires setting before concrete cures | Faster, bolts can be tightened after placement |
| Removal | Difficult to remove once set | Easier to remove and replace |
| Cost | Generally lower cost | Higher cost due to materials and installation |
Introduction to Anchor Bolt and Through Bolt
Anchor bolts are embedded fasteners designed to secure structural elements to concrete, providing strong, stable anchorage through mechanical interlock and adhesive bonding. Through bolts pass entirely through materials, secured with nuts on both ends, offering high tensile strength and ease of installation in various applications. Choosing between anchor bolts and through bolts depends on load requirements, material thickness, and installation constraints.
Definition and Basic Differences
Anchor bolts are fasteners embedded in concrete to secure structural elements, designed for load-bearing and resisting tension forces. Through bolts pass entirely through a material with nuts on both ends, providing clamping force without embedding in concrete. Key differences include installation method--anchor bolts are cast-in-place, whereas through bolts are installed after the material is in position--and their primary applications in structural stability versus assembly clamping.
Materials and Manufacturing Process
Anchor bolts are typically made from carbon steel, stainless steel, or galvanized steel to provide high corrosion resistance and strength, while through bolts often use similar materials but with an emphasis on precision threading and uniform tensile properties. The manufacturing process of anchor bolts involves forging and heat treatment to enhance load-bearing capacity and durability, whereas through bolts undergo CNC machining and threading to ensure a precise fit and consistent performance in structural applications. Material selection and manufacturing techniques impact the bolts' suitability for heavy-duty anchoring versus general fastening needs.
Installation Techniques
Anchor bolts require precise positioning and embedding into concrete before it sets, ensuring a secure hold by expanding under load. Through bolts are installed by drilling a hole through the materials and securing with nuts and washers on the opposite side, allowing for immediate fastening without waiting for concrete curing. Installation of anchor bolts typically involves wet concrete environments, whereas through bolts are suitable for retrofit or dry applications requiring rapid assembly.
Load Capacity and Performance
Anchor bolts offer superior load capacity for structural applications due to their deep embedment in concrete, providing enhanced resistance to shear and tensile forces compared to through bolts. Through bolts, while easier to install, typically deliver lower performance under dynamic loads as they rely on clamping forces rather than embedded anchorage. Engineers often select anchor bolts for critical connections requiring higher safety margins and long-term durability under heavy loads.
Applications in Construction
Anchor bolts are primarily used to secure structural elements to concrete, providing strong resistance to shear and tensile forces in foundations and machinery installations. Through bolts pass entirely through the materials being joined, offering clamping force ideal for steel connections and heavy timber framing in construction. In applications requiring precise alignment and load transfer, anchor bolts excel in embedded anchoring, while through bolts are favored where disassembly or adjustable tension is necessary.
Advantages of Anchor Bolts
Anchor bolts offer superior stability and load distribution compared to through bolts, making them ideal for securing structural elements in concrete foundations. Their embedded design provides enhanced resistance to shear forces and vibrations, significantly improving the durability of constructions. Installation flexibility and corrosion resistance also contribute to the long-term performance benefits of anchor bolts over through bolts.
Advantages of Through Bolts
Through bolts provide superior load distribution by passing completely through the material, reducing stress concentration compared to anchor bolts. They offer enhanced structural stability and are ideal for applications requiring high tensile strength and resistance to vibration. Installation and inspection are simplified as through bolts allow for easy access on both sides of the assembly.
Factors to Consider When Choosing
Anchor bolts provide superior resistance to shear forces and are embedded in concrete, making them ideal for securing heavy structural elements where load distribution within the substrate is critical. Through bolts pass completely through the material and are fastened with a nut, offering easier installation and adjustment in applications requiring removable connections or thinner substrates. Key factors to consider include load requirements, material thickness, installation environment, and whether permanence or adjustability is prioritized in the fastening solution.
Anchor Bolt vs Through Bolt: Which is Better?
Anchor bolts provide superior load distribution in concrete structures, offering strong resistance to shear and tensile forces, making them ideal for heavy-duty anchoring. Through bolts are easier to install and allow adjustment after initial placement, but they may be less effective in resisting dynamic loads compared to anchor bolts. Choosing between anchor bolts and through bolts depends on the specific application requirements, including load type, material, and installation constraints.

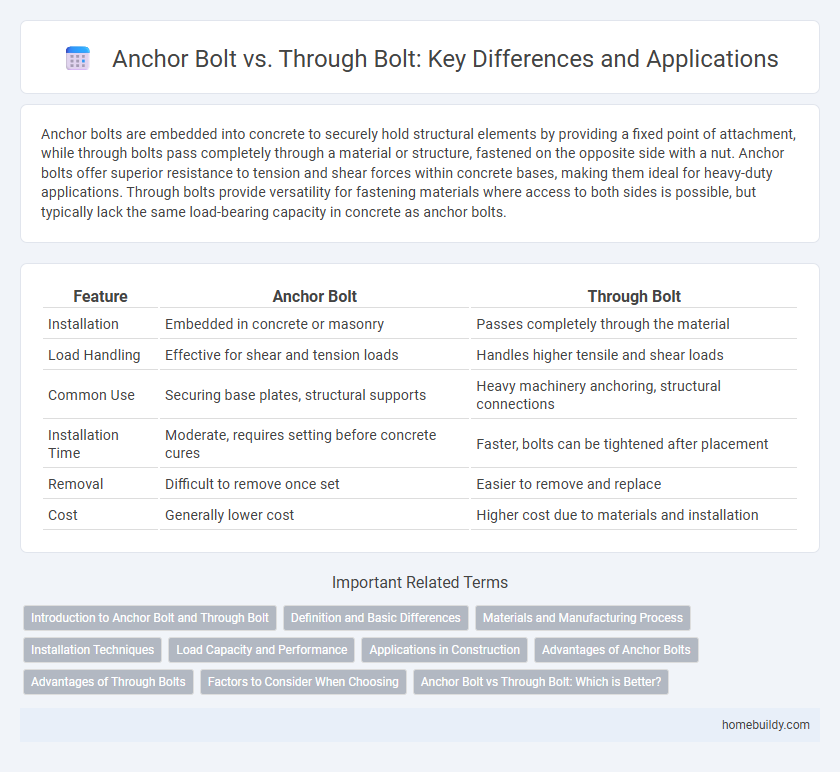

Anchor bolt vs Through bolt Infographic
