homebuildy.com Anchor bolts are designed for securing structural elements to concrete, featuring an embedded bent or hooked end for strong hold, while stud bolts consist of a fully threaded rod used for flange connections in piping and machinery. Anchor bolts provide superior stability in construction projects by anchoring into concrete, whereas stud bolts offer easier installation and replacement in mechanical assemblies. Selecting between anchor bolts and stud bolts depends on whether the application requires concrete anchorage or threaded fastener connections.
Table of Comparison
| Feature | Anchor Bolt | Stud Bolt |
|---|---|---|
| Purpose | Secures structures to concrete | Connects flanges, valves, and pipe fittings |
| Design | Threaded at one end with a hooked or straight embedded end | Fully threaded rod with nuts on both ends |
| Material | Carbon steel, stainless steel, or alloy steel | Carbon steel, stainless steel, alloy steel, or duplex steel |
| Installation | Embedded into concrete during curing | Used in bolted flange connections after installation |
| Load Type | Tension and shear loads from structural elements | Primarily tensile loads in piping systems |
| Typical Applications | Base plates, machinery mounting, structural steelwork | Flanged pipe joints, pressure vessels, valves |
Definition and Overview: Anchor Bolt vs Stud Bolt
Anchor bolts are fasteners embedded in concrete to secure structural elements and resist tension forces, primarily used in construction foundations. Stud bolts consist of a threaded rod with nuts on both ends, designed for connecting flanges and machinery in piping systems, offering ease of assembly and disassembly. Understanding the definition and application difference between anchor bolts and stud bolts is critical for selecting the appropriate fastener based on load requirements and installation environment.
Key Differences Between Anchor Bolts and Stud Bolts
Anchor bolts are embedded into concrete to secure structural elements, while stud bolts are threaded rods used to fasten flanges or machinery components. Anchor bolts provide stability by resisting shear and tension forces in construction applications, whereas stud bolts primarily offer tensile strength and ease of installation in piping systems. Key differences include installation method, load-bearing function, and their typical use in structural versus mechanical assemblies.
Common Applications of Anchor Bolts
Anchor bolts are widely used in securing structural elements to concrete foundations in construction projects such as bridges, buildings, and heavy machinery installations. Unlike stud bolts, which primarily connect flanges in piping systems, anchor bolts provide foundational stability by embedding into concrete to resist shear and tensile forces. Their common applications include fastening base plates, columns, and steel structures, ensuring robust and durable connections in civil and industrial engineering.
Common Applications of Stud Bolts
Stud bolts are commonly used in high-pressure piping systems, flanged connections, and pressure vessel assemblies, where their ability to withstand significant mechanical stress and vibration is critical. Unlike anchor bolts, stud bolts offer uniform clamping force on flange joints, ensuring leak-proof sealing in industries such as oil and gas, petrochemical, and power generation. Their precise threading on both ends facilitates easy installation and secure fastening of components subjected to thermal expansion or heavy loads.
Material Selection and Strength Comparison
Anchor bolts are typically made from carbon steel or stainless steel, chosen for their corrosion resistance and tensile strength, ensuring durable and reliable hold in concrete structures. Stud bolts, often manufactured from alloy steel or stainless steel, provide higher tensile strength and are preferred in high-pressure applications due to their superior mechanical properties. Comparing material selection and strength, anchor bolts prioritize embedment and shear resistance, while stud bolts emphasize tensile load capacity and stress endurance.
Installation Methods: Anchor Bolts vs Stud Bolts
Anchor bolts are typically embedded in concrete foundations during the initial construction phase, requiring precise placement before the concrete sets to ensure structural stability. Stud bolts, on the other hand, are installed on flanged connections by threading nuts onto both ends, allowing for easier installation and removal without embedding in concrete. The installation of anchor bolts demands accurate positioning and curing time, whereas stud bolts offer flexibility in maintenance and replacement due to their external fastening method.
Load-Bearing Capabilities
Anchor bolts provide superior load-bearing capabilities compared to stud bolts due to their embedded design in concrete, which allows them to effectively transfer tensile and shear forces to the foundation. Stud bolts primarily serve as fasteners for flange connections and lack the deep anchorage required for high-load structural applications. The enhanced load capacity of anchor bolts makes them essential in securing heavy machinery, structural columns, and steel framework.
Advantages and Disadvantages
Anchor bolts provide superior structural stability by securely fastening objects to concrete, offering high resistance to shear and tensile forces, unlike stud bolts which are primarily used for connecting flanges in piping systems. Anchor bolts are ideal for heavy-duty applications due to their ability to withstand dynamic loads and vibrations, but they require precise installation and can be challenging to replace or adjust after setting. Stud bolts allow for easier assembly and disassembly in maintenance tasks but lack the same level of embedded strength and are less effective in anchoring to concrete surfaces.
Industry Standards and Specifications
Anchor bolts conform to industry standards such as ASTM F1554 and ASME B18.2.1, ensuring high tensile strength and corrosion resistance for secure structural fastening. Stud bolts typically adhere to ASTM A193 and ASME B1.1, emphasizing precise threading and dimensional accuracy for pressure vessel and pipeline applications. Selection between anchor bolts and stud bolts depends on compliance with specific project specifications and load requirements according to these standardized guidelines.
Choosing the Right Bolt for Your Project
Anchor bolts are designed to secure structures to concrete, providing stability against tension and shear forces, while stud bolts are primarily used to fasten flanges and pipe fittings in high-pressure applications. Choosing the right bolt depends on factors such as load requirements, environmental conditions, and installation surface; anchor bolts excel in foundation work, whereas stud bolts are preferred in mechanical joints. Selecting the appropriate bolt type enhances structural integrity and ensures project durability under varying stress conditions.

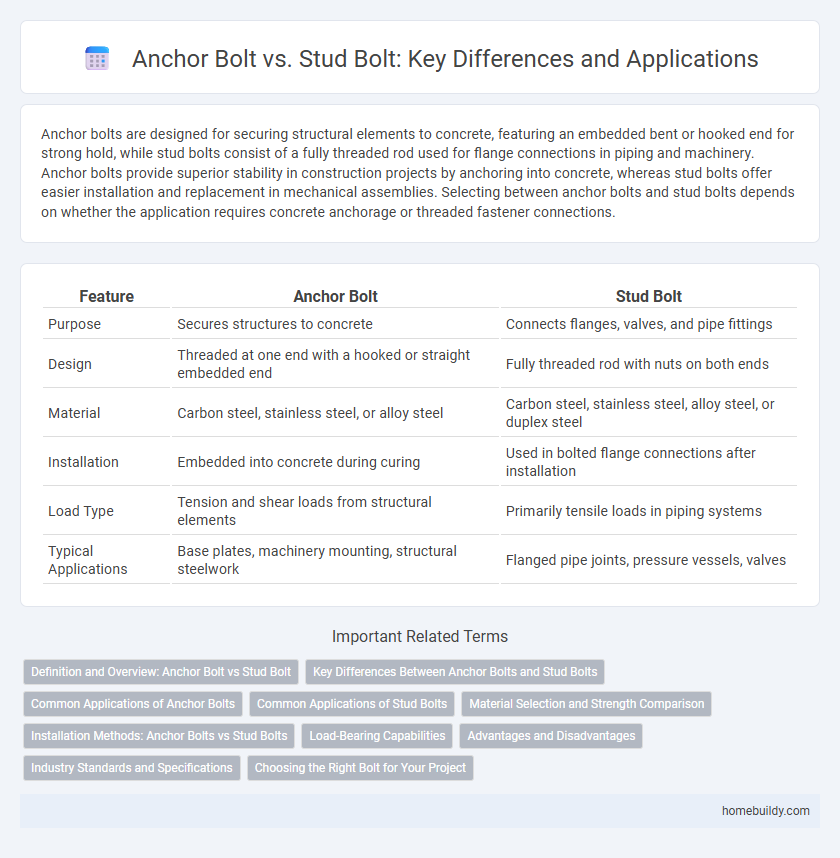

Anchor bolt vs Stud bolt Infographic
