homebuildy.com Anchor bolts are designed to secure structural elements to concrete, providing strong, stable connections for construction projects. In contrast, U-bolts are shaped like the letter "U" and are primarily used to clamp pipes or round objects to surfaces. While anchor bolts are embedded in concrete for load-bearing strength, U-bolts function as fasteners to hold cylindrical items firmly in place.
Table of Comparison
| Feature | Anchor Bolt | U-Bolt |
|---|---|---|
| Definition | Fastener embedded in concrete for structural support | U-shaped bolt securing pipes or round objects |
| Shape | Straight rod with bent end or threaded tip | Closed U shape with two threaded ends |
| Primary Use | Anchoring structures like columns and machinery bases | Clamping pipes, tubes, or rods to surfaces |
| Installation | Embedded in wet concrete before curing | Attached with nuts around pipes or objects |
| Load Type | Resists tensile and shear forces | Holds objects in place, mainly tension |
| Material | Carbon steel or stainless steel | Carbon steel or stainless steel |
| Applications | Buildings, bridges, heavy equipment anchoring | Pipe supports, automotive, marine, construction |
Introduction to Anchor Bolts and U-Bolts
Anchor bolts are fasteners embedded in concrete to secure structural elements, providing strong and stable connections for buildings and machinery. U-bolts, characterized by their U-shape, are primarily used to clamp pipes, tubes, or round objects to surfaces or structures, offering versatility in various applications. Both anchor bolts and U-bolts differ in design, function, and installation methods, making them suitable for distinct construction and mechanical needs.
Defining Anchor Bolts: Purpose and Applications
Anchor bolts are heavy-duty fasteners designed to secure structural elements to concrete or masonry surfaces, providing stability in construction projects such as foundations, steel frameworks, and machinery installations. Unlike U-bolts, which primarily grip pipes or round objects by clamping around them, anchor bolts are embedded into concrete to resist shear and tensile forces, ensuring robust anchorage. Their applications include securing columns, light poles, and equipment bases where heavy loads and vibrations demand reliable and permanent fixing.
Understanding U-Bolts: Functionality and Common Uses
U-bolts are versatile fasteners shaped like the letter "U," designed to secure pipes, tubes, and round objects to a surface, making them essential in plumbing, automotive, and construction applications. Their design provides clamping force and stability, often used to attach cylindrical items to poles or beams, unlike anchor bolts which primarily secure structural elements to concrete. Understanding U-bolts' function helps in selecting the right fastening solution based on load requirements and installation context.
Key Differences Between Anchor Bolts and U-Bolts
Anchor bolts are designed primarily for securing structural elements to concrete, featuring a straight or bent shape with an embedded end for strong anchorage. U-bolts, shaped like the letter "U," are typically used to fasten pipes or round objects to surfaces, providing clamping force around cylindrical components. Key differences include their application focus--anchor bolts for heavy-load structural anchoring versus U-bolts for pipe support--and their distinct shapes influencing load distribution and installation methods.
Material and Design Variations: Anchor Bolt vs U-Bolt
Anchor bolts are typically made from high-strength steel with corrosion-resistant coatings like galvanized or stainless steel, designed for embedding into concrete to secure structural elements. U-bolts, often crafted from carbon steel or stainless steel, feature a U-shaped design with threaded ends, allowing them to clamp pipes, rods, or other cylindrical objects firmly. The primary design variation lies in their applications: anchor bolts provide foundational anchorage within concrete, while U-bolts offer versatile clamping capabilities around round objects.
Installation Methods for Anchor Bolts and U-Bolts
Anchor bolts are typically embedded into concrete with precise alignment before the concrete sets, ensuring strong structural support, while U-bolts are installed by wrapping around pipes or cylindrical objects and then fastened using nuts on threaded ends. Anchor bolt installation requires drilling or casting into the foundation for load transfer, whereas U-bolts are surface-mounted, clamping components without the need for embedding. The distinct installation methods reflect their specific uses, with anchor bolts offering permanent, embedded fastening and U-bolts providing adjustable, external securing.
Load-Bearing Capacity: Which Bolt is Stronger?
Anchor bolts exhibit superior load-bearing capacity compared to U-bolts due to their embedded design, which allows them to transfer tensile and shear forces effectively into concrete foundations. U-bolts primarily provide clamping around cylindrical objects and generally experience lower tensile strength limits, making them less ideal for high-load structural applications. Structural engineers prefer anchor bolts for heavy-duty anchoring tasks where maximum strength and stability are critical.
Advantages and Disadvantages of Anchor Bolts and U-Bolts
Anchor bolts provide superior load-bearing capacity and are ideal for securing heavy structures to concrete due to their embedded design, offering high resistance to tension and shear forces. U-bolts, while easier to install and suitable for attaching pipes or round objects, offer less holding strength and are more prone to loosening under dynamic loads. Compared to U-bolts, anchor bolts ensure greater structural stability in construction applications but require more precise installation and are less versatile for non-structural attachments.
Choosing the Right Bolt: Factors to Consider
Choosing the right bolt depends on load requirements, material compatibility, and installation environment. Anchor bolts provide superior shear strength and are ideal for securing structural elements in concrete, while U-bolts excel in clamping round objects like pipes and providing flexibility in attachment points. Consider factors like load direction, corrosion resistance, and ease of installation to determine whether an anchor bolt or U-bolt best suits your project needs.
Conclusion: Anchor Bolt or U-Bolt for Your Project?
Anchor bolts provide superior load-bearing capacity and are ideal for securing structural elements to concrete foundations, while U-bolts excel in fastening pipes and cylindrical objects where wrapping around the item is necessary. Choosing between an anchor bolt and a U-bolt depends on the specific application requirements, such as the type of material being secured and the nature of the load. For heavy-duty construction projects with static loads, anchor bolts offer greater stability, whereas U-bolts are preferred for applications requiring adjustable or removable connections.

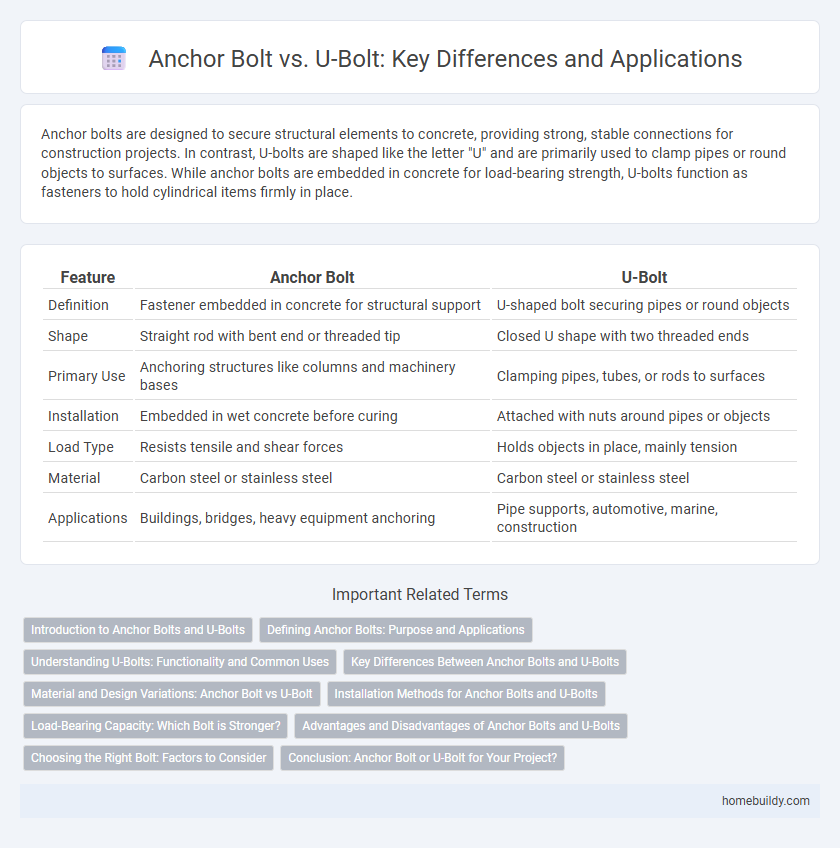

Anchor bolt vs U-bolt Infographic
