homebuildy.com The sill plate serves as the bottom horizontal member anchoring the framing to the foundation, providing structural stability and load transfer. In contrast, the framing plate generally refers to horizontal elements like top plates that connect wall studs and support the ceiling or roof. Understanding the distinction between sill plates and framing plates is crucial for proper wall assembly and ensuring the durability of the building structure.
Table of Comparison
| Feature | Sill Plate | Framing Plate |
|---|---|---|
| Location | Base of wall, anchored to foundation | Between wall studs or joists |
| Material | Treated lumber for moisture resistance | Untreated or standard lumber |
| Purpose | Distributes load, anchors structure | Connects framing members |
| Installation | Fastened with anchor bolts to foundation | Nailed or screwed to studs and joists |
| Exposure | Direct contact with concrete or masonry | Within wall cavities |
Introduction to Sill Plates and Framing Plates
Sill plates, typically made from treated lumber, form the bottom horizontal member of a wall frame, anchoring the structure to the foundation and preventing moisture intrusion. Framing plates, including top and bottom plates, serve as horizontal framing members that connect vertical studs and distribute loads across the wall system. Understanding the distinction between sill plates and framing plates is crucial for proper structural integrity and moisture protection in residential construction.
Definitions: What is a Sill Plate? What is a Framing Plate?
A sill plate is a horizontal wooden member anchored to the foundation, serving as the base for the wall framing and providing structural support and stability. A framing plate, also known as a top plate or bottom plate, refers to horizontal members that connect wall studs at the top or bottom within the wall assembly, ensuring alignment and load distribution. While the sill plate interfaces directly with the foundation, framing plates are integral parts of the wall framing structure above it.
Material Differences: Sill Plates vs Framing Plates
Sill plates are typically made from pressure-treated lumber to resist moisture and prevent rot at the foundation level, whereas framing plates often use untreated dimensional lumber since they are located above ground and less exposed to moisture. This material distinction ensures the longevity and structural integrity of the sill plate by creating a moisture barrier between the concrete foundation and the wooden framing. Pressure treatment chemicals in sill plates provide crucial protection against decay, insects, and fungal growth, which untreated framing plates do not require due to their placement in the building envelope.
Primary Functions and Applications
Sill plates serve as the foundational horizontal timber that anchors a building's framing to the foundation, providing a stable base and distributing loads evenly. Framing plates, including top plates, function to tie vertical studs together and support the walls' structural integrity. While sill plates are critical for securing the structure to its foundation and preventing moisture infiltration, framing plates primarily ensure alignment and load transfer within the wall assembly.
Installation Process: Step-by-Step Comparison
The installation process of a sill plate involves anchoring it directly to the foundation using anchor bolts or straps, ensuring a secure base for the wall framing. In contrast, the framing plate is installed above the sill plate to connect wall studs and provide structural support, typically secured with nails or screws in a precise layout. Both require level placement and alignment, but the sill plate focuses on foundation attachment, while the framing plate emphasizes wall stability.
Structural Importance in Building Stability
The sill plate anchors the framing structure to the foundation, providing critical stability by distributing loads evenly and preventing shifting during environmental stresses. Unlike a framing plate, which primarily connects vertical studs and adds rigidity within the wall assembly, the sill plate serves as the essential interface between the building and its foundation. Proper installation of the sill plate ensures structural integrity, moisture resistance, and overall durability of the building framework.
Moisture and Pest Resistance: A Comparative Analysis
Sill plates, typically made from pressure-treated lumber, offer superior moisture and pest resistance compared to standard framing plates, which are often untreated and more susceptible to rot and insect damage. The treatment used in sill plates helps prevent wood deterioration at the foundation level where contact with concrete and soil exposes the material to high moisture levels. Incorporating moisture barriers and pest-resistant treatments in sill plates enhances the longevity and structural integrity of building frameworks.
Code Requirements and Industry Standards
Sill plates must conform to International Residential Code (IRC) specifications, requiring pressure-treated lumber or naturally durable wood to resist decay and termites when in contact with concrete or masonry foundations. Framing plates, including double top plates, are governed by standards such as ASTM D7147 and must support structural loads but typically do not require pressure treatment unless exposed to moisture. Industry standards emphasize proper anchoring of sill plates with anchor bolts spaced no more than 6 feet apart per IRC R403.1.6 to ensure structural stability and compliance.
Common Mistakes and How to Avoid Them
Confusing sill plates with framing plates often leads to structural issues, as sill plates anchor the building to the foundation while framing plates secure wall studs. A common mistake is installing the sill plate without proper anchoring, which compromises earthquake and wind resistance; using anchor bolts and sill sealer materials prevents this. Misidentifying framing plates can result in improper load distribution; ensuring correct placement above the sill plate maintains structural integrity and load transfer efficiency.
Choosing Between Sill Plate and Framing Plate: Key Considerations
Choosing between a sill plate and a framing plate depends on the specific role each plays in construction; sill plates anchor the wall structure directly to the foundation, providing stability and moisture resistance, while framing plates serve as horizontal elements that connect and support wall studs. Assess factors such as load-bearing requirements, moisture exposure, and material compatibility to ensure the selected plate enhances structural integrity and longevity. Understanding these distinctions aids in optimizing framing techniques and preventing common issues like warping or foundation shifting.

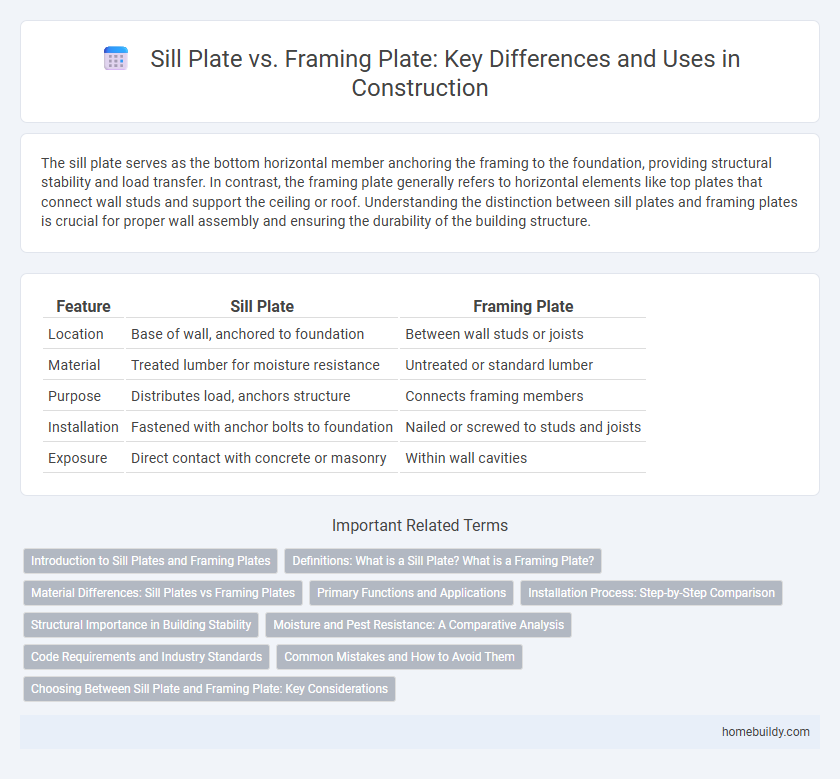

Sill plate vs Framing plate Infographic
