homebuildy.com Sill pans and threshold pans both serve as waterproofing components in door and window installations, but they differ in placement and function. A sill pan is installed under the bottom frame of windows or doors to direct water away from the structure, preventing leaks and damage. Threshold pans specifically fit beneath door thresholds, providing a barrier that channels water outward and protects the threshold area from moisture intrusion.
Table of Comparison
| Feature | Sill Pan | Threshold Pan |
|---|---|---|
| Purpose | Prevents water infiltration under window or door sills | Prevents water damage at door threshold areas |
| Installation Location | Under window sills and door frames | At the bottom of door thresholds |
| Material | Metal, PVC, or rubberized membranes | Metal, vinyl, or composite materials |
| Water Protection | Directs water away from wall and sill | Blocks water from entering under door threshold |
| Durability | High resistance to UV and weather | Designed for heavy foot traffic and weather |
| Use Cases | Window replacements, door frame installations | Entry doors, sliding door installations |
Understanding Sill Pans and Threshold Pans
Sill pans are installed at the base of window and door openings to direct water away from the wall structure, preventing water infiltration and damage. Threshold pans serve a similar protective function but are specifically designed for door thresholds, often providing a raised edge to stop water from entering beneath the door. Understanding the distinct roles of sill pans and threshold pans is crucial for effective moisture management in building construction and remodeling.
Key Differences Between Sill Pans and Threshold Pans
Sill pans are installed beneath window and door sills to prevent water infiltration and direct moisture away from the building envelope, whereas threshold pans specifically protect the floor area at door entries, creating a moisture barrier under door thresholds. Sill pans typically extend beyond the window or door frame sides for enhanced drainage, while threshold pans are custom-fitted to door threshold dimensions for durability against foot traffic. The primary difference lies in their location and function: sill pans focus on window sill moisture control, and threshold pans provide a protective seal at floor-level door entrances.
Purpose and Functionality of Sill Pans
Sill pans serve as a protective barrier installed beneath window sills to prevent water infiltration and direct moisture away from the building envelope. Unlike threshold pans that are typically used at door entries to manage water ingress and provide a drip edge, sill pans specifically safeguard window openings by channeling water out and reducing the risk of structural damage and mold growth. Their primary functionality is to enhance the durability of window installations by ensuring effective drainage and air sealing at the sill interface.
Purpose and Functionality of Threshold Pans
Threshold pans are specifically designed to collect and direct water away from door openings, preventing moisture intrusion and potential damage to the threshold and interior flooring. Unlike sill pans, which provide a protective barrier along the entire sill or bottom frame of a window or door, threshold pans focus on sealing and managing water at the transition point between interior and exterior spaces. Their functionality ensures enhanced waterproofing and durability by channeling water to the exterior, maintaining the structural integrity of entryways.
Materials Used in Sill Pans vs Threshold Pans
Sill pans are typically made from corrosion-resistant materials like aluminum, stainless steel, or flexible rubber membranes designed to prevent water infiltration at window and door bases. Threshold pans, on the other hand, often use heavier-duty materials such as stainless steel or composite materials engineered to withstand frequent foot traffic and provide a durable, watertight seal at door thresholds. The choice of materials directly impacts the effectiveness and longevity of both sill and threshold pans in managing moisture and structural integrity.
Installation Process: Sill Pan vs Threshold Pan
Sill pans are typically installed beneath exterior door frames to prevent water intrusion by directing moisture outside the wall assembly, requiring careful placement on the rough opening's sill and integration with flashing membranes. Threshold pans, designed specifically for door thresholds, involve sealing and securing around the bottom edge of the door to create a watertight barrier, often necessitating custom fitting to accommodate threshold dimensions. Both installation processes demand precision to ensure effective water management, but sill pan installation emphasizes comprehensive protection across the door's base, while threshold pan installation focuses on sealing the transition area between interior and exterior environments.
Water Management: Sill Pan and Threshold Pan Comparison
Sill pans and threshold pans serve critical roles in water management by preventing moisture intrusion at door openings; sill pans are installed beneath the door sill to channel water away from the substrate, while threshold pans specifically protect the threshold area by sealing gaps and directing water externally. Effective sill pan installation ensures long-term durability by managing water infiltration under the sill, whereas threshold pans provide an additional barrier, enhancing protection against water penetration in high-traffic entry points. Both components are essential in comprehensive water management strategies to prevent rot, mold, and structural damage in building envelopes.
Cost Considerations: Sill Pan vs Threshold Pan
Sill pans typically incur higher installation costs compared to threshold pans due to their larger size and more complex integration with the exterior wall assembly. Threshold pans offer a more economical solution by focusing protection on door bottoms, reducing material and labor expenses. Evaluating upfront costs against long-term water management benefits is essential for informed decision-making.
Durability and Maintenance of Sill and Threshold Pans
Sill pans are typically designed with durable materials such as aluminum or PVC, offering superior resistance to moisture and corrosion compared to threshold pans, which often endure more wear from foot traffic and are prone to faster deterioration. Maintenance for sill pans generally involves less frequent inspection and cleaning due to their protective, concealed installation under exterior doors, while threshold pans require more regular upkeep to prevent damage from constant exposure to dirt and water. This difference in durability and maintenance makes sill pans a more reliable option for long-term water resistance in door entryways.
Choosing the Right Pan for Your Project
Selecting the right sill pan or threshold pan depends on the specific installation area and moisture protection needs. Sill pans are designed to protect window sills from water infiltration by creating a waterproof barrier beneath the window, while threshold pans provide protection at door entry points, preventing water from seeping under thresholds. Choosing between the two requires assessing factors such as exposure to weather, type of opening, and material compatibility to ensure effective water management and long-term durability.

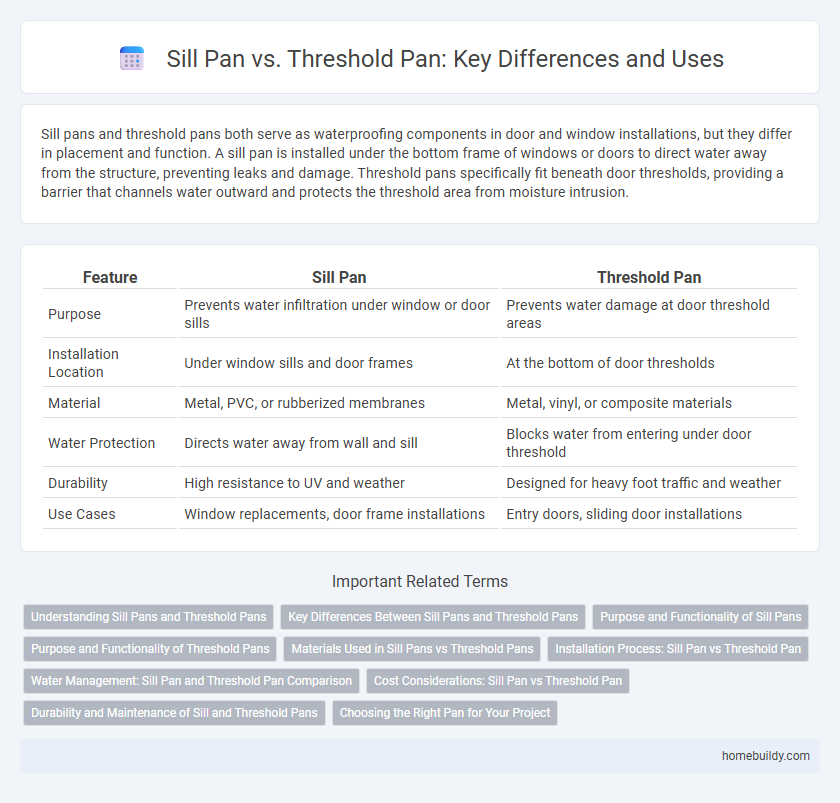

sill pan vs threshold pan Infographic
