homebuildy.com Couplers provide a mechanical connection between two reinforcing bars, ensuring a strong, continuous load transfer without increasing the overall bar length. Lap splices overlap two bars for a specified length, relying on the concrete and bar surfaces to transfer stress through bond strength. Couplers are preferred in congested or limited space conditions where lap splices are impractical or where precise alignment and load-bearing efficiency are critical.
Table of Comparison
| Feature | Couplers | Lap Splices |
|---|---|---|
| Connection Type | Mechanical joining of bars | Overlapping steel bars |
| Space Requirement | Minimal space needed | Requires extended overlap length |
| Structural Integrity | High load transfer efficiency | Dependent on lap length and concrete quality |
| Installation Time | Faster, with fewer steps | Slower, requires precise placement |
| Cost | Higher initial cost | Lower material cost but higher labor |
| Use Case | Critical connections and congested areas | Standard reinforcement splicing |
| Durability | Corrosion resistant with proper treatment | Prone to corrosion at splice overlap |
Introduction to Reinforcement Bar Connections
Reinforcement bar connections are critical for ensuring structural integrity in concrete construction, with couplers and lap splices being the primary methods used. Couplers provide a mechanical means to connect rebar, enabling a continuous load path and reducing congestion in congested areas, while lap splices rely on overlapping bars to transfer stresses through bond strength. Selecting between couplers and lap splices depends on design requirements, space constraints, and structural loading conditions, influencing the overall performance and durability of reinforced concrete elements.
Overview of Lap Splicing Techniques
Lap splicing techniques involve overlapping two reinforcement bars to transfer stress through bond and mechanical interlock, commonly used in reinforced concrete construction. These methods vary based on bar size, concrete strength, and structural requirements, including standard lap lengths, welded wire fabric lapping, and epoxy-coated bar splicing. Proper lap splice design ensures continuity of tensile forces, preventing bars from slipping and maintaining structural integrity.
Understanding Rebar Couplers
Rebar couplers provide a mechanical connection between reinforcement bars, ensuring continuity and load transfer with minimal bar overlap, unlike traditional lap splices that require extended overlapping lengths and increased congestion in concrete structures. Understanding rebar couplers involves recognizing their ability to improve structural integrity, reduce material waste, and enhance construction efficiency by simplifying joint assembly and minimizing stress concentrations. These couplers are especially beneficial in seismic zones and high-load applications where precise load distribution and robust connectivity are critical.
Strength and Structural Performance Comparison
Couplers provide superior strength and structural performance compared to lap splices by ensuring direct load transfer and reducing stress concentration at the joints. They maintain the continuity of reinforcement bars, minimizing the risk of slippage and enhancing the overall integrity of the concrete structure. Studies indicate couplers outperform lap splices in tensile capacity and fatigue resistance, making them preferable in critical structural applications.
Installation Process: Couplers vs Lap Splices
The installation process of couplers involves joining reinforcement bars by threading or welding, enabling precise alignment and reducing lap length requirements. Lap splices, by contrast, require overlapping rebar sections and tying them together, which can increase congestion and complicate concrete placement. Couplers offer faster installation and improved structural performance by minimizing material waste and ensuring continuous load transfer.
Material Usage and Cost Efficiency
Couplers significantly reduce material usage by eliminating the need for overlapping bars, resulting in lower steel consumption compared to lap splices. This reduction in steel not only minimizes waste but also decreases overall construction costs through more efficient material application and streamlined labor. Couplers provide precise alignment and load transfer, enhancing structural integrity while optimizing cost efficiency over traditional lap splices.
Space Constraints and Design Flexibility
Couplers significantly reduce the required overlap length compared to lap splices, optimizing space in congested concrete structures. This space efficiency enables designers to maintain structural integrity without compromising on rebar placement in tight areas. With couplers, design flexibility improves as they facilitate connections where lap splices are impractical due to limited development length or complex reinforcement layouts.
Durability and Corrosion Resistance
Couplers offer superior durability and corrosion resistance compared to lap splices by providing a continuous and tightly secured mechanical connection that minimizes exposure to environmental elements. Lap splices often create overlapping zones susceptible to corrosion due to moisture entrapment and poor concrete cover, weakening structural integrity over time. Using couplers reduces the risk of corrosion-induced damage, enhancing the lifespan and safety of reinforced concrete structures.
Industry Standards and Code Compliance
Couplers and lap splices are critical methods for reinforcement bar connections, each governed by industry standards such as ACI 318 and BS EN 1992-1-1, ensuring structural integrity and code compliance. Couplers are favored in applications requiring shorter development lengths and reduced congestion, meeting ASTM A108 standards for mechanical splicing, while lap splices must adhere to minimum overlap lengths specified in codes to maintain load transfer efficiency. Compliance with these regulations ensures durability, safety, and performance in reinforced concrete construction projects.
Applications and Project Suitability
Couplers offer seamless connections for reinforcement bars, ideal for high-strength and heavy-load projects where structural integrity is critical, such as bridges and high-rise buildings. Lap splices are more suited for simpler, lower-stress applications like residential construction and small commercial projects due to their ease of installation and cost-effectiveness. Selection between couplers and lap splices depends on project-specific factors including load requirements, space constraints, and budget considerations.

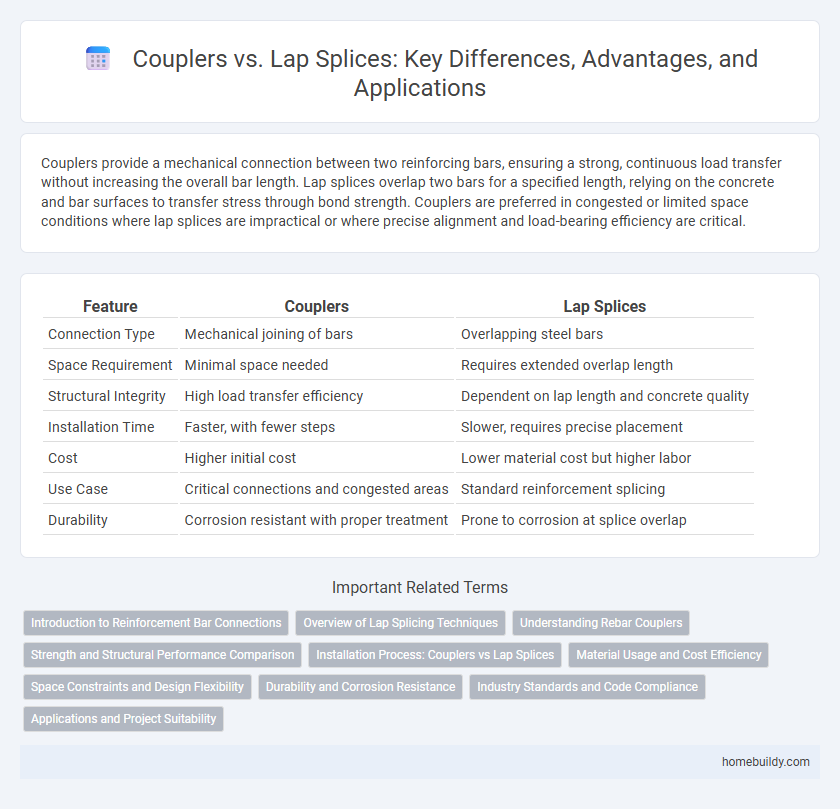

Couplers vs Lap Splices Infographic
