homebuildy.com Rebar dowels are steel bars embedded in concrete to transfer loads and provide structural continuity between slabs or structural elements, enhancing reinforcement and preventing cracks. Anchor bolts secure objects or structural components to concrete or masonry, providing a stable and removable fastening point for attaching fixtures or equipment. While rebar dowels primarily serve load transfer within concrete, anchor bolts are designed for fastening attachments and resisting tension or shear forces.
Table of Comparison
| Feature | Rebar Dowel | Anchor Bolt |
|---|---|---|
| Purpose | Connects concrete sections, transfers load across joints | Secures structural elements to concrete foundations |
| Material | Deformed steel bars (reinforcing steel) | High-strength steel bolts |
| Installation | Embedded in concrete, aligned across joints before setting | Inserted into drilled holes, set with epoxy or mechanical expansion |
| Load Transfer | Shear and tension loads within concrete joints | Supports tension, shear, and bending loads for fixtures |
| Applications | Concrete pavements, slabs, beams, and columns | Attaching steel columns, handrails, machinery to concrete |
| Code Compliance | ACI 318, ASTM A615 (rebar standards) | ACI 318, ASTM F1554 (anchor bolts standards) |
Introduction to Rebar Dowels and Anchor Bolts
Rebar dowels and anchor bolts serve distinct roles in reinforced concrete structures, with dowels primarily designed to transfer load across concrete joints and ensure structural continuity. Rebar dowels are typically deformed steel bars embedded in concrete to facilitate effective load transfer and reduce stress concentrations at construction joints. Anchor bolts, often made of high-strength steel, are fixed components used to secure structural elements to concrete foundations or slabs, providing resistance to tensile and shear forces.
Key Differences Between Rebar Dowels and Anchor Bolts
Rebar dowels are steel rods designed to transfer load and align concrete segments by embedding into adjoining slabs, while anchor bolts secure structural elements to concrete foundations by providing a fixed connection point. The primary difference lies in their function: dowels facilitate movement and load distribution between concrete sections, whereas anchor bolts resist shear and uplift forces to maintain structural stability. Material composition and installation methods vary, with dowels typically cast into concrete joints and anchor bolts installed prior to concrete curing.
Material Specifications for Rebar Dowels vs Anchor Bolts
Rebar dowels are typically manufactured from carbon steel conforming to ASTM A615 or A706 standards, ensuring high tensile strength and flexibility for load transfer in concrete structures. Anchor bolts are often made from carbon steel or stainless steel, meeting ASTM F1554 specifications, providing superior corrosion resistance and anchorage performance in structural applications. Material selection for rebar dowels emphasizes ductility and weldability, whereas anchor bolts prioritize strength and environmental durability.
Primary Applications of Rebar Dowels
Rebar dowels are primarily used to transfer loads across concrete expansion joints and construction joints, ensuring structural continuity and preventing differential movement. These steel bars are embedded in concrete slabs to align and secure adjacent sections, making them essential for pavements, bridge decks, and industrial floors. Unlike anchor bolts, which fasten structural elements to concrete, rebar dowels enhance load distribution and minimize joint deterioration in reinforced concrete structures.
Typical Uses of Anchor Bolts in Construction
Anchor bolts are primarily used to secure structural elements to concrete foundations, providing stability and resistance to shear and tension forces. Typical applications include attaching steel columns, light poles, and machinery base plates to prevent movement under dynamic loads. Their design allows for easy adjustment during installation, ensuring precise alignment and robust anchorage in construction projects.
Installation Methods: Rebar Dowels vs Anchor Bolts
Rebar dowels are embedded directly into concrete using standard concrete pouring methods, ensuring a seamless load transfer between structural elements, while anchor bolts require precise drilling and positioning before concrete sets or chemical anchoring after curing. Installation of rebar dowels typically involves tying them to reinforcing cages for alignment, whereas anchor bolts demand accurate layout and securing with templates or jigs to maintain spacing and embedment depth. The choice between these methods impacts efficiency and structural integration, with rebar dowels providing superior mechanical interlock in cast-in-place concrete.
Load Transfer Mechanisms and Structural Performance
Rebar dowels transfer loads through direct mechanical interlock and bond between the existing concrete and new concrete, ensuring efficient stress distribution across construction joints. Anchor bolts rely on bearing and friction to resist shear and tensile forces, often requiring precise embedment depth and torque specifications for optimal performance. Structural performance of rebar dowels typically exhibits superior load transfer capacity in dynamic or cyclic loading scenarios compared to anchor bolts, which are more effective for static or localized load applications.
Cost Comparison and Economic Considerations
Rebar dowels typically offer a lower initial cost compared to anchor bolts due to simpler manufacturing and installation processes, making them a budget-friendly choice for concrete joint reinforcement. Anchor bolts, while generally more expensive upfront, provide superior load transfer and durability in high-stress applications, potentially reducing long-term maintenance and replacement expenses. Evaluating project-specific requirements and lifecycle costs is crucial to determine the most economically viable option between rebar dowels and anchor bolts.
Industry Standards and Code Compliance
Rebar dowels and anchor bolts serve distinct purposes in structural applications, with rebar dowels primarily facilitating load transfer between concrete sections per ASTM A615 standards, while anchor bolts ensure secure attachment of structural elements conforming to ACI 318 and ANSI standards. Industry standards emphasize proper embedment depth, material grade, and corrosion resistance to guarantee compliance and structural integrity. Code compliance requires precise installation and inspection protocols to meet local building codes and specialized seismic design provisions.
Choosing the Right Fastening Solution for Your Project
When selecting between rebar dowels and anchor bolts for your project, consider load transfer efficiency and structural compatibility. Rebar dowels provide seamless reinforcement continuity in concrete joints, enhancing tensile strength and reducing crack propagation. Anchor bolts offer superior pull-out resistance and are ideal for attaching structural elements to concrete, ensuring robust connections in heavy load applications.

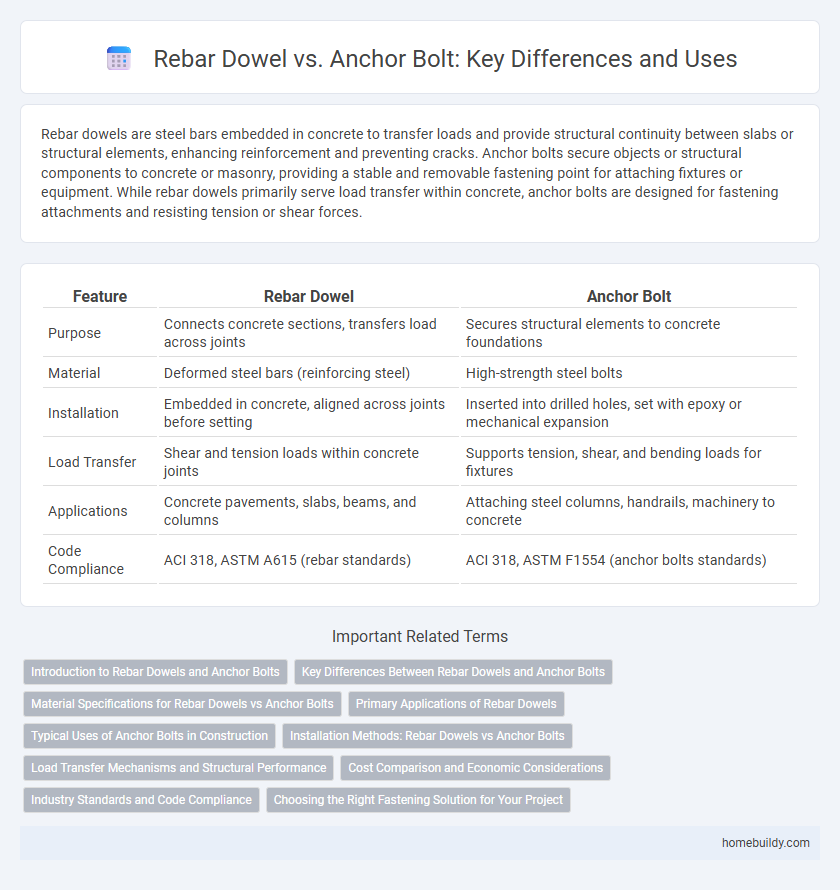

Rebar dowel vs Anchor bolt Infographic
