homebuildy.com Wall penetration sleeves are designed to protect and seal pipes passing through vertical surfaces, providing a secure barrier against moisture and fire. Floor penetration sleeves, on the other hand, accommodate pipes traveling through horizontal surfaces, ensuring load-bearing capacity and preventing damage from floor traffic. Each type of sleeve must meet specific building codes and fire-resistance standards to maintain structural integrity and safety.
Table of Comparison
| Feature | Wall Penetration Sleeve | Floor Penetration Sleeve |
|---|---|---|
| Purpose | Protect pipes passing through walls | Protect pipes passing through floors |
| Material | Steel, PVC, or galvanized metal | Steel, concrete, or composite materials |
| Load Bearing | Minimal load support | Designed to withstand floor load and weight |
| Sealing | Fire and water resistant sealants | Fireproof and waterproof sealing with added pressure resistance |
| Installation | Embedded or surface mounted on walls | Embedded within concrete floors or slabs |
| Size Range | Varies, typically smaller diameters | Often larger diameters for multiple or bigger pipes |
| Application | Residential and commercial wall penetrations | Industrial, commercial, and residential floor penetrations |
Introduction to Pipe Sleeves: Wall vs Floor Penetration
Pipe sleeves serve as protective barriers for pipes passing through different building structures, with wall penetration sleeves designed specifically to maintain wall fire ratings and structural integrity. Floor penetration sleeves accommodate vertical pipe runs while preventing damage to flooring and ensuring compliance with fire and safety regulations. Choosing between a wall penetration sleeve and a floor penetration sleeve depends on the type of structure, pipe size, and the environment within the building.
Key Differences Between Wall and Floor Penetration Sleeves
Wall penetration sleeves are designed to accommodate pipes passing through vertical barriers, providing effective sealing and structural support to prevent water, fire, and gas leaks. Floor penetration sleeves are engineered for horizontal applications, typically thicker and more robust to bear loads from foot traffic and heavy equipment while maintaining a secure barrier. The primary differences lie in their orientation, load-bearing capacity, and sealing requirements tailored to the distinct environmental pressures of walls versus floors.
Material Options for Wall and Floor Penetration Sleeves
Wall penetration sleeves commonly use materials such as galvanized steel, stainless steel, and PVC to provide corrosion resistance and structural integrity. Floor penetration sleeves often require reinforced materials like cast iron, stainless steel, or fiberglass to withstand heavier loads and abrasion. Both types of sleeves may incorporate rubber or neoprene seals to ensure watertight and airtight penetration through the building envelope.
Installation Process: Wall Penetration Sleeves
Wall penetration sleeves require precise cutting and sealing around the pipe to maintain structural integrity and fire resistance in masonry or concrete walls. Installation involves positioning the sleeve flush with the wall surface, followed by applying firestop materials and sealants to prevent air, water, and fire passage. Proper alignment and secure fastening ensure durability and compliance with building codes during wall installation.
Installation Process: Floor Penetration Sleeves
Floor penetration sleeves require precise alignment during installation to accommodate structural floor slabs and ensure a watertight seal. The installation process involves cutting or core drilling the floor slab, inserting the sleeve securely, and applying firestop or waterproofing materials around the sleeve to prevent leaks and maintain building integrity. Proper coordination with structural engineers is essential to avoid compromising load-bearing elements and to achieve compliance with building codes.
Applications and Use Cases for Wall Penetration Sleeves
Wall penetration sleeves are primarily designed for applications requiring pipes to pass through vertical building elements such as walls and facades, ensuring protection against fire, water, and structural movement. They are commonly used in plumbing, HVAC, electrical, and fire protection systems where maintaining wall integrity and preventing leaks or damage is critical. Unlike floor penetration sleeves, which accommodate horizontal pipe transitions between floors, wall penetration sleeves offer enhanced sealing and support tailored for vertical pipe installations in both residential and commercial buildings.
Applications and Use Cases for Floor Penetration Sleeves
Floor penetration sleeves are designed to provide a secure and fire-resistant passage for pipes, cables, and conduits through concrete floors in commercial and industrial buildings. Common applications include HVAC systems, plumbing installations, electrical conduits, and data cabling where maintaining floor integrity and ensuring firestop compliance is critical. These sleeves facilitate easy pipe replacement or maintenance without damaging the structural floor, making them essential in multi-story buildings and facilities with complex utility networks.
Fire Protection and Water Sealing Considerations
Wall penetration sleeves for pipes are designed to ensure robust fire protection by maintaining fire-resistance ratings and preventing the spread of flames and smoke through vertical barriers. Floor penetration sleeves emphasize water sealing to protect against moisture ingress and maintain structural integrity in horizontal applications where water exposure is more prevalent. Both sleeve types integrate firestop materials and sealing compounds tailored to their specific penetration surfaces to comply with safety codes and prevent fire and water damage.
Code Compliance for Wall and Floor Penetration Sleeves
Wall penetration sleeves and floor penetration sleeves must adhere to distinct code compliance requirements based on fire-resistance ratings and structural integrity standards. Wall penetration sleeves typically require compliance with ASTM E814 or UL 1479 to ensure firestopping integrity, while floor penetration sleeves must meet stricter load-bearing and waterproofing regulations under ASTM E1966 and NFPA 5000. Both sleeve types require proper sealing with UL-classified firestop systems to maintain the continuity of fire and smoke barriers according to IBC Chapter 7.
Choosing the Right Sleeve: Wall vs Floor Penetration
Selecting the appropriate pipe sleeve depends on the application environment and structural requirements; wall penetration sleeves are designed to provide airtight and fire-resistant seals for vertical installations, while floor penetration sleeves accommodate horizontal or slab passages with enhanced load-bearing capabilities. Wall sleeves often incorporate adjustable collars to ensure a snug fit in drywall or concrete walls, whereas floor sleeves prioritize durability and resistance to heavy foot traffic or mechanical stress. Evaluating factors such as fire rating, mechanical protection, and spatial constraints ensures optimal performance and compliance with building codes for either wall or floor penetrations.

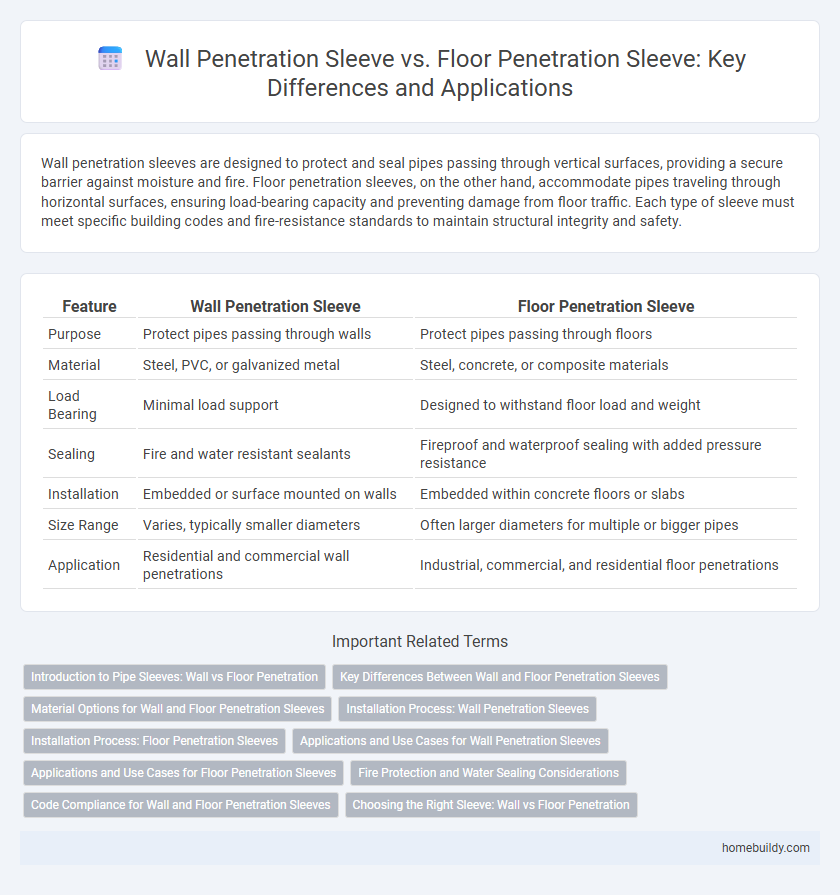

Wall penetration sleeve vs Floor penetration sleeve Infographic
