homebuildy.com Core drilled sleeves are installed by drilling a hole through hardened concrete, allowing for precise placement and retrofitting of pipes, while cast-in-place sleeves are embedded during the concrete pouring process, providing a seamless and robust integration. Core drilled sleeves offer flexibility for modifications and are suitable for existing structures, whereas cast-in-place sleeves ensure consistent structural integrity in new constructions. Choosing between the two depends on project timing, structural requirements, and ease of installation.
Table of Comparison
| Feature | Core Drilled Sleeve | Cast-in-Place Sleeve |
|---|---|---|
| Installation Method | Drilled hole after concrete curing | Embedded during concrete pouring |
| Flexibility | High - can be installed post-construction | Low - fixed during initial construction |
| Cost | Higher due to drilling equipment and labor | Lower as part of original construction process |
| Structural Integrity | Potential risk of concrete cracking if not properly sealed | Maintains structural continuity and strength |
| Installation Time | Longer, requires curing and drilling time | Shorter, simultaneous with concrete casting |
| Applications | Retrofitting and modifications | New constructions and planned penetrations |
Introduction to Pipe Sleeves in Construction
Core drilled sleeves are pre-installed by drilling precise holes into existing concrete structures to create pathways for pipes, providing flexibility for retrofitting and renovations. Cast-in-place sleeves are embedded during the concrete pouring process, ensuring a seamless and fully integrated conduit that enhances structural integrity. Both methods require careful consideration of load-bearing requirements, pipe size, and environmental factors to optimize pipe protection and system longevity in construction projects.
What is a Core Drilled Sleeve?
A core drilled sleeve is a pipe sleeve created by drilling a precise hole through an existing concrete structure to install a conduit or pipe. This method allows for retrofitting or adding new penetrations without disturbing the surrounding concrete, making it ideal for renovations and upgrades. Core drilled sleeves provide accurate sizing and cleaner finishes compared to cast-in-place sleeves, which are installed while the concrete is being poured.
What is a Cast-in-Place Sleeve?
A cast-in-place sleeve is an embedded conduit installed during the concrete pouring process to provide a passage for pipes through structural elements. Unlike core drilled sleeves that are added after the concrete has hardened, cast-in-place sleeves are set within the formwork, ensuring precise alignment and reducing the risk of structural damage. This method enhances the integrity of the concrete structure while maintaining efficient pipe installation and protection.
Key Differences Between Core Drilled and Cast-in-Place Sleeves
Core drilled sleeves are installed by drilling precise holes into existing concrete structures, allowing for retrofitting or modifications without full demolition, while cast-in-place sleeves are embedded during the initial concrete pour, ensuring seamless integration with the structure. Core drilled sleeves offer flexibility and customization in placement but might require additional sealing for water tightness, whereas cast-in-place sleeves provide superior structural integrity and waterproofing due to their monolithic nature. The choice between the two hinges on project timing, structural requirements, and specific installation constraints.
Material Compatibility and Durability
Core drilled sleeves are typically made from durable steel or PVC, ensuring strong material compatibility with most pipes and providing excellent corrosion resistance. Cast-in-place sleeves are integrated during concrete pouring, often using metal or plastic materials that bond directly with the surrounding concrete, enhancing structural integrity and durability. Both sleeve types offer robust protection against environmental damage, but cast-in-place sleeves provide superior long-term stability by being embedded within the concrete matrix.
Installation Process Comparison
Core drilled sleeves require precise drilling into existing concrete structures, ensuring minimal disruption but demanding careful alignment and sealing for effective installation. Cast-in-place sleeves are embedded within freshly poured concrete, allowing seamless integration and structural integrity but requiring advance planning before concrete curing. The choice impacts installation time, labor intensity, and adaptability to site conditions.
Impact on Structural Integrity
Core drilled sleeves, installed by creating openings in hardened concrete, can weaken the structural integrity by introducing stress concentrations and potential cracks around the drilled hole. Cast-in-place sleeves, embedded during the concrete pouring process, maintain continuity and uniformity, preserving the load-bearing capacity and minimizing disruption to the concrete matrix. Structural engineers often prefer cast-in-place sleeves to ensure enhanced durability and prevent localized stress failures in critical load-bearing elements.
Cost Implications and Budget Considerations
Core drilled sleeves generally incur higher labor costs due to the precision drilling required after concrete curing, making them less budget-friendly for large-scale projects. Cast-in-place sleeves, integrated during the initial concrete pour, reduce labor intensity and overall installation time, offering a more cost-effective solution when planned in advance. Budget considerations should also include potential downtime and structural adjustments, which are typically minimized with cast-in-place sleeve methods.
Common Applications and Best Use Cases
Core drilled sleeves are commonly used for retrofitting and modifications in existing concrete structures, providing precise openings for pipes without compromising structural integrity. Cast-in-place sleeves are best suited for new construction projects where sleeves can be integrated during the concrete pouring process, ensuring strong bonds and enhanced durability. Both methods are essential for mechanical, electrical, and plumbing (MEP) installations, with core drilled sleeves favored for flexibility and cast-in-place for long-term stability.
Expert Recommendations and Final Verdict
Experts recommend core drilled sleeves for retrofit projects due to their precise installation and adaptability to existing structures, while cast-in-place sleeves are favored in new construction for enhanced structural integration and durability. Structural engineers emphasize the importance of selecting sleeve type based on project scope, load requirements, and environmental conditions to ensure long-term performance and ease of maintenance. The final verdict highlights core drilled sleeves as the optimal choice for flexibility, whereas cast-in-place sleeves provide superior strength and compatibility in foundational applications.

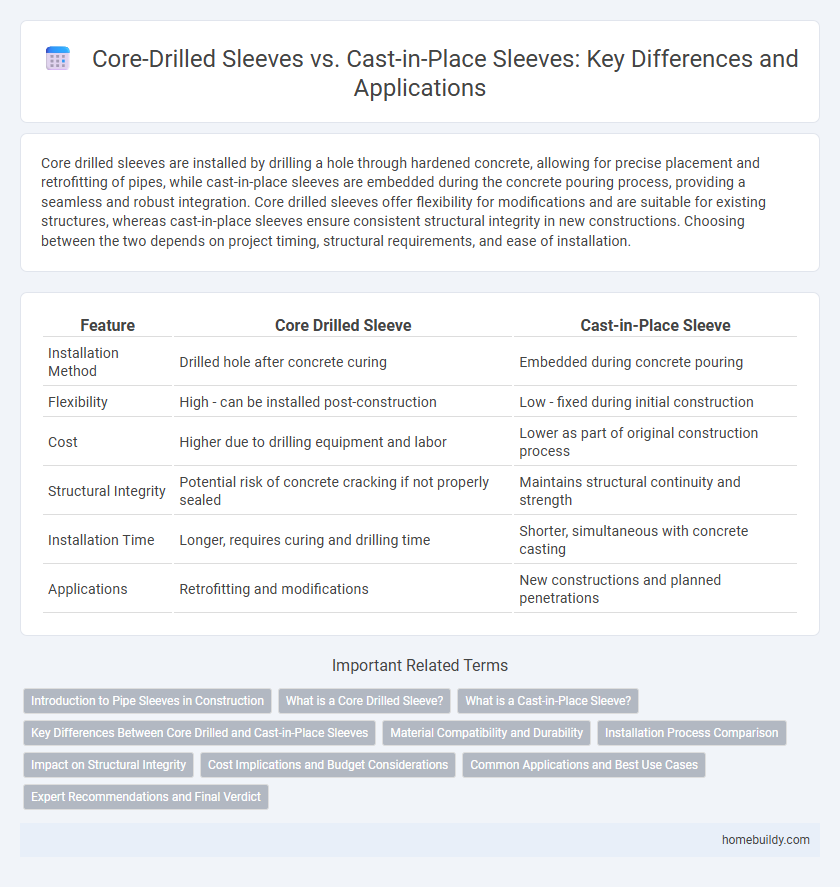

Core drilled sleeve vs Cast-in-place sleeve Infographic
