homebuildy.com A pipe sleeve provides a protective barrier for pipes passing through walls or floors, preventing damage and allowing for thermal movement. Unlike an expansion joint, which is designed to absorb pipe movement and vibrations caused by thermal expansion or contraction, a pipe sleeve focuses on safeguarding the pipe from external structural stresses. Selecting between a pipe sleeve and an expansion joint depends on the need for protection versus flexibility in pipe systems.
Table of Comparison
| Feature | Pipe Sleeve | Expansion Joint |
|---|---|---|
| Purpose | Provides a protective barrier around pipes passing through walls or floors | Absorbs thermal expansion and contraction in piping systems |
| Material | Steel, PVC, or metal alloys | Rubber, metal bellows, or fabric |
| Functionality | Prevents pipe damage and structural stress at penetrations | Compensates for pipe movement, vibration, and misalignment |
| Installation Location | Installed in walls, floors, or ceilings around pipes | Installed inline with piping systems |
| Flexibility | Rigid or semi-rigid | Flexible and designed for movement |
| Maintenance | Low maintenance | Requires regular inspection for wear or leaks |
| Cost | Generally low cost | Higher cost due to complexity and materials |
Introduction to Pipe Sleeves and Expansion Joints
Pipe sleeves protect pipes by encasing them within a penetrative barrier, preventing damage and allowing for thermal expansion without compromising structural integrity. Expansion joints accommodate pipe movement caused by thermal expansion, vibration, or seismic activity, reducing stress and preventing leaks or failures. Both components are essential in piping systems for maintaining durability and flexibility in different environmental conditions.
Definition and Function of Pipe Sleeves
Pipe sleeves are cylindrical protective components installed around pipes to provide insulation, prevent damage from external forces, and allow for thermal expansion. Unlike expansion joints, which absorb movement and vibrations within piping systems, pipe sleeves serve primarily as barriers that safeguard pipes from corrosion, mechanical impacts, and structural stress. Their function is critical in maintaining pipe integrity by isolating pipes from concrete, walls, or other materials and accommodating slight pipe movements without strain.
Understanding Expansion Joints: Purpose and Types
Expansion joints accommodate thermal movement and vibration in piping systems, preventing damage by absorbing expansion and contraction. Common types include bellows, slip, and ball expansion joints, each designed for specific mechanical requirements and environmental conditions. Unlike pipe sleeves, which primarily provide protection during concrete casting or structural penetration, expansion joints actively manage mechanical stresses and maintain system integrity.
Key Differences Between Pipe Sleeves and Expansion Joints
Pipe sleeves serve as protective enclosures allowing pipes to pass through walls or floors, preventing structural damage and facilitating thermal insulation. Expansion joints accommodate thermal expansion and contraction in pipelines, reducing stress and preventing leaks or ruptures. Unlike expansion joints designed for flexibility and movement absorption, pipe sleeves primarily provide physical separation and protection without allowing significant pipe movement.
Installation Methods: Pipe Sleeve vs Expansion Joint
Pipe sleeve installation involves embedding a protective casing around the pipe within walls or floors, ensuring seamless penetration and preventing damage from concrete or structural movements. Expansion joint installation requires integrating flexible connectors between pipe segments to absorb thermal expansion, vibration, and mechanical stress. While pipe sleeves focus on static protection and structural integrity during construction, expansion joints accommodate dynamic movement and prevent pipe damage during operation.
Applications: When to Use Pipe Sleeves or Expansion Joints
Pipe sleeves are primarily used to protect pipes from external damage and allow for thermal expansion within fixed structures such as walls or floors, making them ideal for building penetrations and concrete encasements. Expansion joints accommodate pipe movement caused by thermal expansion, vibration, or seismic activity, preventing stress and leakage in long pipeline runs or near equipment connections. Selecting pipe sleeves is crucial for fixed, protected penetrations, while expansion joints are essential where flexibility and movement absorption are required to maintain system integrity.
Material Selection for Pipe Sleeves and Expansion Joints
Material selection for pipe sleeves and expansion joints is crucial for ensuring durability and performance under varying thermal and mechanical stresses. Pipe sleeves typically use materials like stainless steel, carbon steel, or fiberglass to provide corrosion resistance and structural support, while expansion joints often incorporate elastomers, rubber, or metal alloys designed to absorb movement and vibrations. Choosing the right material depends on factors such as operating temperature, pressure, chemical exposure, and the degree of flexibility required for pipeline systems.
Performance and Durability Comparisons
Pipe sleeves provide superior durability by offering robust protection against corrosion and mechanical damage, ensuring long-lasting integrity in piping systems. Expansion joints excel in performance by accommodating thermal expansion and contraction, reducing stress on pipes and preventing leaks. While pipe sleeves focus on shielding and structural support, expansion joints prioritize flexibility and movement absorption for enhanced system longevity.
Cost Analysis: Pipe Sleeves Versus Expansion Joints
Pipe sleeves generally offer a more cost-effective solution compared to expansion joints due to lower initial material and installation expenses. Expansion joints, while more expensive upfront, provide superior flexibility and long-term durability in absorbing thermal movements and vibrations. Choosing between the two depends on budget constraints and the specific mechanical demands of the piping system.
Choosing the Right Solution: Factors to Consider
Pipe sleeves provide a protective barrier facilitating pipe movement through walls and floors, preventing damage from abrasion and environmental factors. Expansion joints accommodate thermal expansion and contraction, absorbing mechanical stresses to maintain system integrity. When choosing between a pipe sleeve and an expansion joint, consider factors such as pipe material, temperature fluctuations, structural movement, and installation environment to ensure optimal performance and durability.

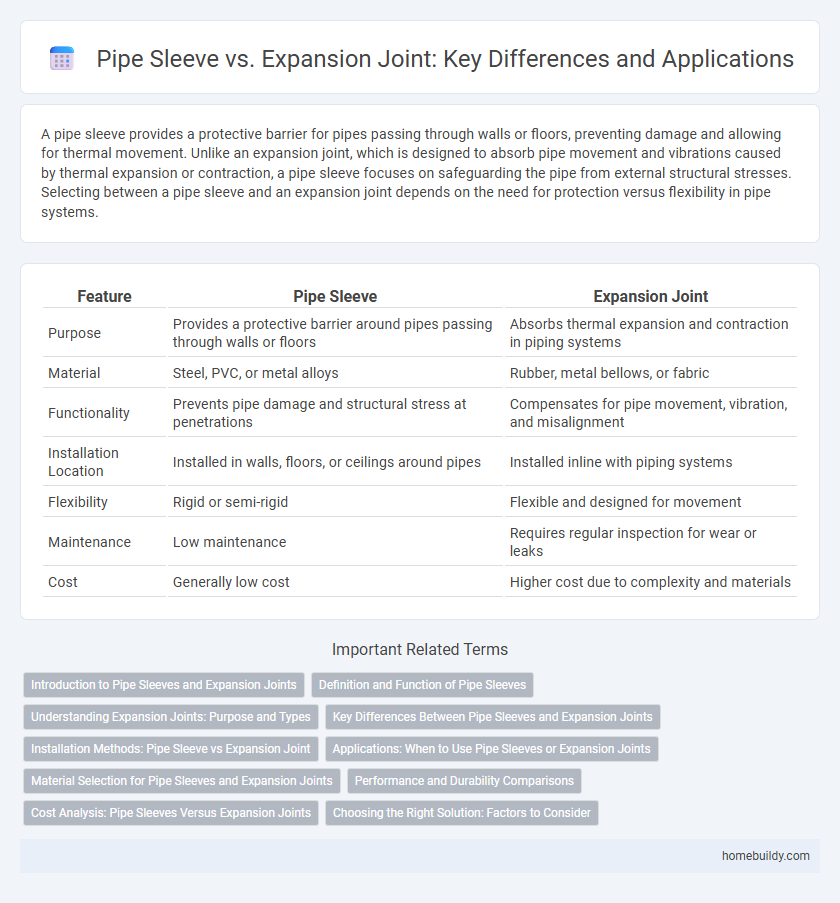

Pipe sleeve vs expansion joint Infographic
