homebuildy.com Mechanical sleeves provide structural support and allow for the safe passage of pipes through walls or floors, focusing on durability and load-bearing capacity. Firestop sleeves are specifically designed to maintain the fire resistance of a barrier by sealing openings around pipes with fire-resistant materials. Choosing between mechanical and firestop sleeves depends on the need for either mechanical protection or fire safety compliance in building construction.
Table of Comparison
| Feature | Mechanical Sleeve | Firestop Sleeve |
|---|---|---|
| Primary Function | Protects and guides pipes through walls and floors | Prevents fire and smoke spread via pipe penetrations |
| Material | Steel or plastic | Steel with intumescent lining or fire-resistant materials |
| Fire Resistance | No inherent fire protection | Provides fire-rated barrier, typically up to 2 hours |
| Installation | Simple mechanical fit, no sealing required | Requires intumescent sealant application and compliance to fire codes |
| Use Case | General pipe protection and alignment | Firestopping in fire-rated walls and floors |
| Cost | Lower cost | Higher cost due to specialized materials and certification |
| Compliance | Building code compliant for non-fire rated penetrations | Meets fire safety standards (UL, ASTM) |
Understanding Pipe Sleeve Applications
Mechanical sleeves provide a secure and flexible solution for pipe penetration through walls and floors, accommodating pipe movement and reducing stress on the system. Firestop sleeves, on the other hand, focus on maintaining fire-resistance ratings by sealing around pipes and preventing the spread of fire and smoke through penetrations. Understanding pipe sleeve applications involves selecting the appropriate sleeve type based on structural needs, fire safety requirements, and environmental conditions.
What is a Mechanical Sleeve?
A mechanical sleeve is a structural component installed in walls or floors to allow pipes or conduits to pass through without causing damage or compromising integrity. Unlike firestop sleeves, which are designed primarily for fire resistance, mechanical sleeves provide physical protection and facilitate pipe installation and maintenance. These sleeves often consist of durable materials such as steel or PVC and are sized to accommodate specific pipe diameters while allowing movement and vibration absorption.
What is a Firestop Sleeve?
A Firestop sleeve is a specialized pipe sleeve designed to prevent the spread of fire, smoke, and toxic gases through openings in fire-rated walls and floors. Unlike mechanical sleeves, which primarily provide structural support and accommodate pipe movement, firestop sleeves incorporate fire-resistant materials and intumescent seals that expand under heat to maintain the fire barrier integrity. Firestop sleeves are essential in maintaining building safety by ensuring compliance with fire codes and protecting critical infrastructure during a fire event.
Composition and Materials: Mechanical vs Firestop Sleeve
Mechanical sleeves typically consist of durable metals such as steel or aluminum, designed to provide structural support and protection for pipes passing through walls or floors. Firestop sleeves incorporate intumescent materials and fire-resistant compounds like silicone or mineral wool to prevent the spread of fire and smoke through penetrations. The composition of mechanical sleeves prioritizes strength and durability, whereas firestop sleeves focus on thermal insulation and fire containment properties.
Installation Process: Mechanical Sleeve vs Firestop Sleeve
Mechanical sleeve installation involves embedding a rigid steel or plastic pipe sleeve within concrete or masonry walls, providing structural support and protection for utility pipes during construction. Firestop sleeve installation requires precise placement of intumescent or fire-resistant seals around pipes within sleeves to maintain fire-resistance ratings and prevent fire and smoke spread. The mechanical sleeve process mainly emphasizes physical durability and alignment, while the firestop sleeve process prioritizes sealing integrity and compliance with fire safety codes.
Fire Protection Performance Comparison
Firestop sleeves provide superior fire protection performance compared to mechanical sleeves by effectively sealing around pipes to prevent the spread of fire and smoke through penetrations in fire-rated walls or floors. Unlike mechanical sleeves, firestop sleeves are specifically designed with intumescent materials that expand under heat, maintaining the integrity of fire barriers during high-temperature events. Their compliance with stringent firestop testing standards, such as ASTM E814 and UL 1479, ensures reliable containment of flames and toxic gases, which mechanical sleeves typically lack.
Code Compliance and Regulatory Standards
Mechanical sleeves typically meet general building code requirements by providing structural support and protection for pipes passing through floors or walls, while firestop sleeves are specifically designed to comply with fire safety regulations by preventing the spread of fire and smoke through penetrations. Firestop sleeves adhere to stringent standards such as ASTM E814 and UL 1479, ensuring fire resistance ratings that mechanical sleeves do not offer. Compliance with local building codes and fire protection standards mandates the use of firestop sleeves in fire-rated assemblies to maintain the integrity of fire barriers.
Cost Evaluation: Mechanical vs Firestop Sleeve
Mechanical sleeves generally offer a lower initial cost compared to firestop sleeves due to simpler materials and installation processes. Firestop sleeves incur higher expenses but provide critical fire-resistance ratings that can reduce insurance and liability costs over the building's lifespan. Evaluating total cost-effectiveness requires balancing upfront savings of mechanical sleeves with long-term safety benefits and regulatory compliance offered by firestop sleeves.
Typical Use Cases and Industry Preferences
Mechanical sleeves are typically used for general-purpose pipe installations in plumbing, HVAC, and industrial piping systems, providing physical protection against corrosion and mechanical damage. Firestop sleeves are preferred in construction and building maintenance industries, especially in commercial and residential buildings, where maintaining fire-resistance ratings through wall or floor penetrations is critical. Industry standards often dictate firestop sleeve usage in fire-rated assemblies to prevent fire and smoke spread, whereas mechanical sleeves are favored for durability and ease of maintenance in non-fire-rated applications.
Choosing the Right Pipe Sleeve for Your Project
Mechanical sleeves provide robust protection and easy pipe installation with durable materials that withstand environmental stress, ideal for non-fire-rated applications. Firestop sleeves incorporate fire-resistant seals to maintain fire barrier integrity, essential for meeting safety codes in fire-rated walls and floors. Selecting between mechanical and firestop sleeves depends on project requirements, including fire safety regulations, environmental conditions, and the need for maintaining structural fire-resistance ratings.

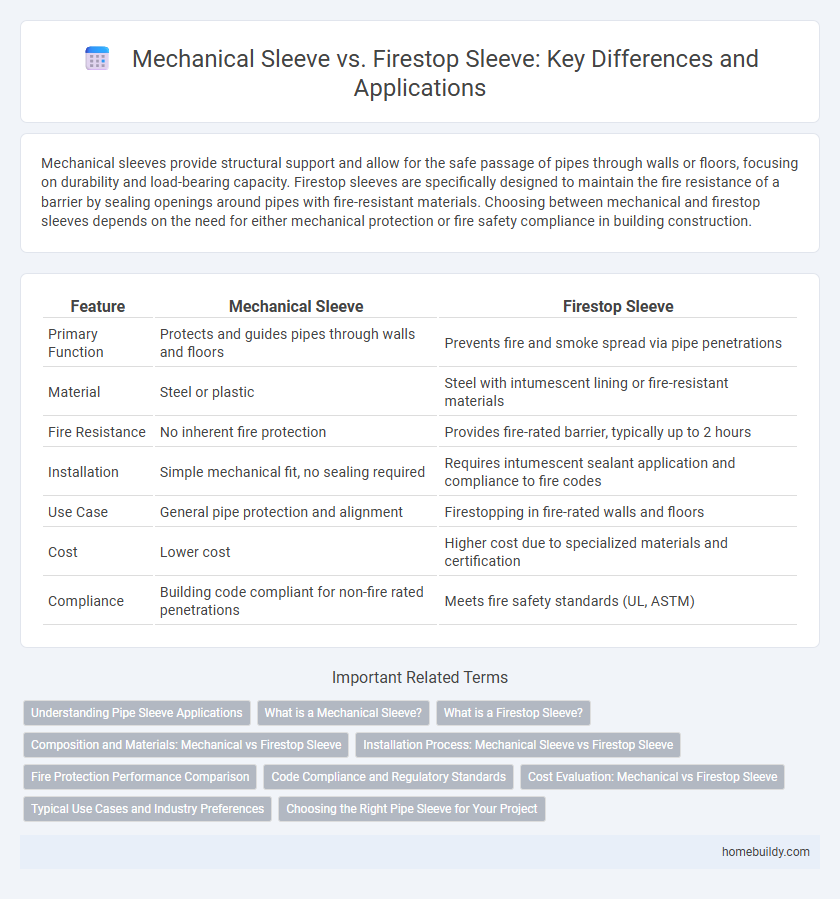

Mechanical sleeve vs Firestop sleeve Infographic
