homebuildy.com A pipe sleeve is designed to create a protective barrier around pipes passing through walls or floors, preventing damage and allowing for movement, whereas a conduit primarily serves to protect electrical wiring and cables. Unlike conduits, which are rigid or flexible tubes for electrical protection, pipe sleeves are often made of metal, plastic, or concrete and focus on structural integrity and insulation. Selecting a pipe sleeve instead of a conduit depends on whether the application requires safeguarding plumbing pipes or housing electrical systems.
Table of Comparison
| Feature | Pipe Sleeve | Conduit |
|---|---|---|
| Purpose | Protects pipes passing through walls or floors | Houses and protects electrical wiring |
| Material | Steel, PVC, or fiberglass | Metal (EMT, FMC), PVC, or flexible plastics |
| Installation | Installed during construction; sleeve fits around pipe | Installed before wiring; conduit routes wires safely |
| Function | Provides mechanical protection and allows pipe expansion | Protects cables from damage and electrical hazards |
| Compliance | Meets plumbing codes and firestop regulations | Meets electrical codes and safety standards |
| Typical Use | Building plumbing, HVAC systems | Electrical wiring in commercial and residential buildings |
Pipe Sleeve vs Conduit: Key Differences
Pipe sleeves are cylindrical components designed to protect pipes as they pass through walls, floors, or ceilings, providing a barrier against physical damage and allowing for movement or expansion. Conduits, on the other hand, are electrical protective tubes that house and safeguard wiring from moisture, corrosion, and mechanical damage. Unlike conduits, pipe sleeves do not serve as electrical protective enclosures but primarily facilitate safe passage and structural integrity around pipes.
Purpose and Application Comparison
Pipe sleeves provide a protective barrier around pipes passing through walls or floors, preventing damage and allowing for expansion or movement, whereas conduits primarily function as enclosed channels for electrical cables, ensuring safety and organization. Pipe sleeves are commonly used in plumbing and HVAC installations to shield pipes from structural impacts and corrosion, while conduits are essential in electrical systems to protect wiring from moisture, chemicals, and physical disturbances. The key difference lies in their applications: pipe sleeves focus on pipe protection and movement accommodation, whereas conduits serve as protective paths for electrical wiring in construction projects.
Material Types: Pipe Sleeve vs Conduit
Pipe sleeves are typically made from materials such as PVC, steel, or rubber to provide protection and allow for expansion and movement of pipes, while conduits are often constructed from rigid PVC, metal (galvanized steel or aluminum), or flexible plastic to protect electrical wiring. Pipe sleeves prioritize flexibility and corrosion resistance to accommodate pipe vibrations and thermal expansion, whereas conduits emphasize structural strength and electrical insulation. Material selection for pipe sleeves versus conduits depends on the specific application requirements, including exposure conditions and mechanical stresses.
Installation Methods: Which Is Simpler?
Pipe sleeve installation typically involves embedding sleeves within concrete or masonry during construction, allowing for straightforward pipe passage and protection. Conduit installation often requires precise bending, securing, and routing of rigid or flexible tubes around obstacles, which can be more labor-intensive. The simplicity of pipe sleeve installation makes it preferable in new builds, while conduit suits retrofit or exposed wiring scenarios.
Protection Capabilities: Sleeve vs Conduit
Pipe sleeves offer robust protection against physical damage, chemical exposure, and environmental factors by providing a durable barrier that encases pipes during construction and installation. Conduits primarily protect electrical wiring, shielding cables from mechanical impact, moisture, and corrosion, but may not offer the same level of structural support or chemical resistance as pipe sleeves designed for plumbing or HVAC systems. In applications requiring enhanced mechanical protection and environmental isolation, pipe sleeves outperform conduits, especially where pipes traverse concrete or underground installations.
Cost Factors: Pipe Sleeve vs Conduit
Pipe sleeves typically cost less than conduits due to their simpler design and material requirements, often made from basic PVC or steel without added electrical insulation. Conduits involve higher expenses as they must meet stringent electrical safety standards, requiring specialized materials like EMT, PVC-coated steel, or flexible metal tubing. Installation costs also vary, with pipe sleeves generally easier and quicker to install, reducing labor costs compared to conduits, which require precise fitting and grounding.
Fire and Water Resistance: How They Compare
Pipe sleeves and conduits differ significantly in fire and water resistance; pipe sleeves, often made from steel or PVC, provide superior fire protection by maintaining the integrity of fire-rated walls and preventing flame spread. Conduits, while protecting electrical wiring, typically offer less resistance to water ingress and fire exposure due to their design primarily focusing on cable protection rather than environmental sealing. In applications requiring enhanced fire and water resistance, pipe sleeves are preferred for their ability to create a sealed barrier that safeguards both structural elements and pipeline functionality.
Building Codes and Standards
Pipe sleeves and conduits are governed by distinct building codes and standards, with pipe sleeves primarily addressed in ASTM E119 and UL 1479 for fire resistance and structural integrity. Conduits fall under NFPA 70 (National Electrical Code) standards, emphasizing electrical safety and grounding requirements. Compliance with these codes ensures proper installation, fire protection, and safety in building construction.
Durability and Maintenance
Pipe sleeves offer superior durability compared to conduit due to their robust materials like PVC or metal alloys that resist corrosion and physical damage in harsh environments. Maintenance requirements for pipe sleeves are minimal since they provide a protective barrier against moisture and mechanical impact, reducing the risk of pipe damage and leaks. Conduits, while useful for electrical wiring protection, often require more frequent inspection and replacement due to susceptibility to wear and environmental factors.
Choosing the Right Solution for Your Project
Pipe sleeves provide durable protection for pipes passing through walls or floors, preventing damage and allowing for pipe movement, while conduits primarily serve as protective channels for electrical wiring. Choosing between a pipe sleeve and conduit depends on whether the project requires mechanical protection for piping systems or safe routing and insulation for electrical cables. Evaluating factors such as material compatibility, exposure conditions, and local building codes ensures the right solution is selected for structural integrity and safety compliance.

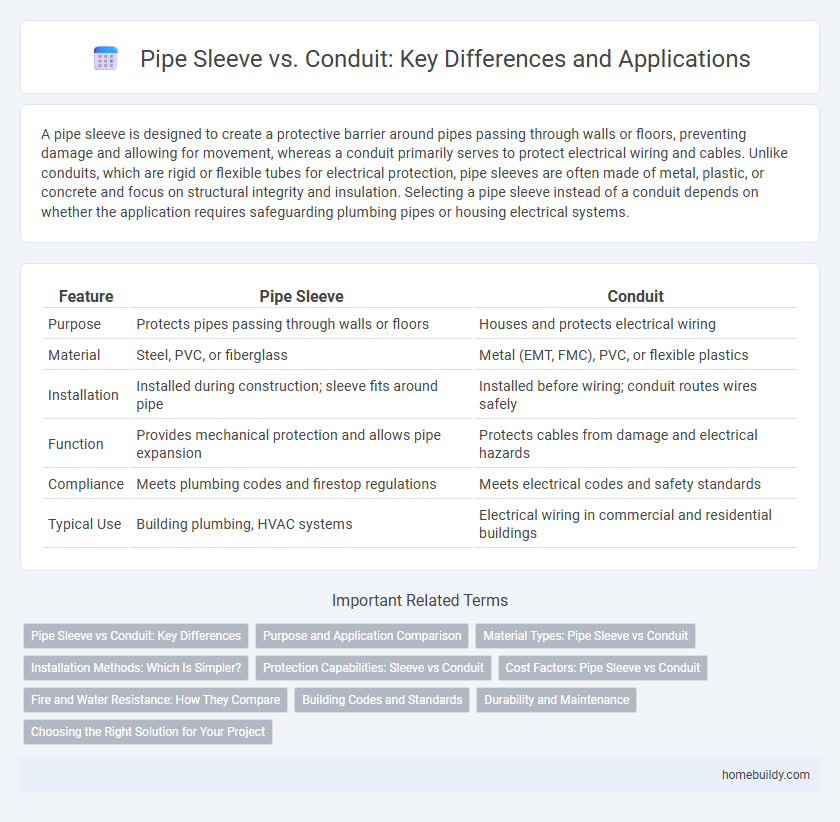

Pipe sleeve vs conduit Infographic
