homebuildy.com A pipe sleeve provides a protective passage for pipes through walls and floors, preventing damage and allowing for expansion or movement. Sleeve anchors, on the other hand, are fasteners used to secure objects to concrete or masonry surfaces by expanding within the drilled hole. While pipe sleeves focus on safeguarding pipes, sleeve anchors serve as a reliable method for anchoring fixtures and structural components.
Table of Comparison
| Feature | Pipe Sleeve | Sleeve Anchor |
|---|---|---|
| Purpose | Protects pipes passing through walls or floors; allows pipe movement | Secures objects to concrete, brick, or block |
| Material | Plastic, metal, or PVC | Steel, zinc-plated or stainless steel |
| Installation | Inserted in wall/floor opening before pipe placement | Drilled into solid base material and expanded to hold |
| Function | Provides pipe protection and prevents damage from concrete or structural movement | Provides strong mechanical fastening in masonry or concrete |
| Typical Use | Plumbing and HVAC systems for pipe protection | Mounting fixtures, brackets, or machinery |
| Load Capacity | None (not a fastener) | High (load-bearing anchor) |
Understanding Pipe Sleeves: Definition and Applications
Pipe sleeves are protective hollow cylinders installed in walls or floors to encase pipes, allowing for easy movement and preventing damage from structural shifts. Unlike sleeve anchors, which are fastening devices used to secure objects to concrete or masonry, pipe sleeves facilitate proper pipe alignment and insulation in plumbing and HVAC systems. Their applications include safeguarding pipes from physical damage and accommodating thermal expansion or contraction within building structures.
What Is a Sleeve Anchor? Key Features and Uses
A sleeve anchor is a versatile fastener designed for securing objects to concrete, brick, or block. It features an expandable sleeve that tightens against the substrate when the bolt is driven in, providing strong and reliable anchorage. Commonly used for mounting pipes, fixtures, or machinery, sleeve anchors offer a secure hold in solid materials where traditional screws or nails cannot be used.
Materials Comparison: Pipe Sleeve vs Sleeve Anchor
Pipe sleeves are typically made from steel or plastic materials designed to protect and allow movement of pipes through walls or floors, offering corrosion resistance and durability. Sleeve anchors are constructed from steel with zinc or stainless steel coatings to provide strong, secure anchoring in concrete or masonry surfaces, emphasizing load-bearing capacity. The choice between pipe sleeve and sleeve anchor materials depends on application requirements, with pipe sleeves prioritizing pipe protection and movement accommodation, while sleeve anchors focus on strength and structural support.
Installation Process: Pipe Sleeves vs Sleeve Anchors
Pipe sleeves are installed by embedding them into a concrete structure before casting, creating a protective barrier for pipes to pass through while preventing damage and allowing for movement. Sleeve anchors require drilling a hole into the base material, followed by inserting and expanding the anchor to secure attachments to concrete or masonry surfaces. The installation of pipe sleeves is integral to structural formwork, whereas sleeve anchors focus on external fixture attachment, highlighting different applications and preparation techniques.
Load-Bearing Capabilities: A Comparative Analysis
Pipe sleeves provide a protective conduit enabling pipes to shift slightly under load without damage but do not contribute to structural load-bearing, whereas sleeve anchors are designed explicitly for securing heavy loads in concrete and masonry, providing robust anchoring with high pull-out strength. Sleeve anchors distribute load through expansion against the base material, making them ideal for heavy fixtures requiring strong mechanical fastening, whereas pipe sleeves primarily facilitate pipe movement and insulation from surrounding structures. Understanding these load-bearing distinctions is crucial for selecting the appropriate component in construction projects demanding either pipe protection or secure anchoring under significant loads.
Corrosion Resistance: Sleeve Anchor vs Pipe Sleeve
Pipe sleeves offer superior corrosion resistance compared to sleeve anchors due to their construction from corrosion-resistant materials like PVC or stainless steel, which prevent moisture ingress and chemical damage. Sleeve anchors, often made from zinc-plated or carbon steel, are prone to rust and degradation in harsh environments unless specially coated or treated. This makes pipe sleeves ideal for long-term applications in corrosive conditions such as plumbing or underground installations.
Cost Considerations: Pipe Sleeves vs Sleeve Anchors
Pipe sleeves generally offer a cost-effective solution for protecting and accommodating pipes through concrete walls, often reducing labor costs due to easier installation and adaptability to varying pipe sizes. Sleeve anchors, while providing strong mechanical fastening for fixtures in masonry, typically involve higher material costs and longer installation times, especially in applications requiring precise alignment or multiple anchor points. Evaluating project requirements, including load-bearing needs and installation complexity, helps determine the most economical choice between pipe sleeves and sleeve anchors.
Common Construction Scenarios: Choosing the Right Solution
Pipe sleeves provide a protective conduit for pipes passing through concrete or masonry, preventing damage and allowing for expansion and contraction in construction projects. Sleeve anchors secure fixtures to solid materials like concrete or brick, offering high load-bearing capacity and stability in fastening applications. In common construction scenarios, pipe sleeves are ideal for creating penetration points while sleeve anchors are preferred for anchoring heavy objects, making each solution essential for different structural needs.
Durability and Maintenance: Differences and Similarities
Pipe sleeves offer high durability due to their corrosion-resistant materials, ensuring long-lasting protection for pipes against environmental factors and physical damage. Sleeve anchors, made from galvanized or stainless steel, provide durable and secure fastening but require periodic inspection to prevent corrosion in harsh conditions. Both solutions demand minimal maintenance, with pipe sleeves primarily needing checks for physical integrity and sleeve anchors focusing on anchor stability and rust prevention.
Selecting Between Pipe Sleeves and Sleeve Anchors: Expert Recommendations
When selecting between pipe sleeves and sleeve anchors, consider the specific application requirements such as load capacity, installation environment, and material compatibility. Pipe sleeves provide a protective conduit for pipes passing through walls or floors, preventing structural damage and allowing for thermal expansion. Sleeve anchors, designed for securing heavy fixtures to concrete or masonry, offer high load-bearing strength and durable anchorage in construction projects.

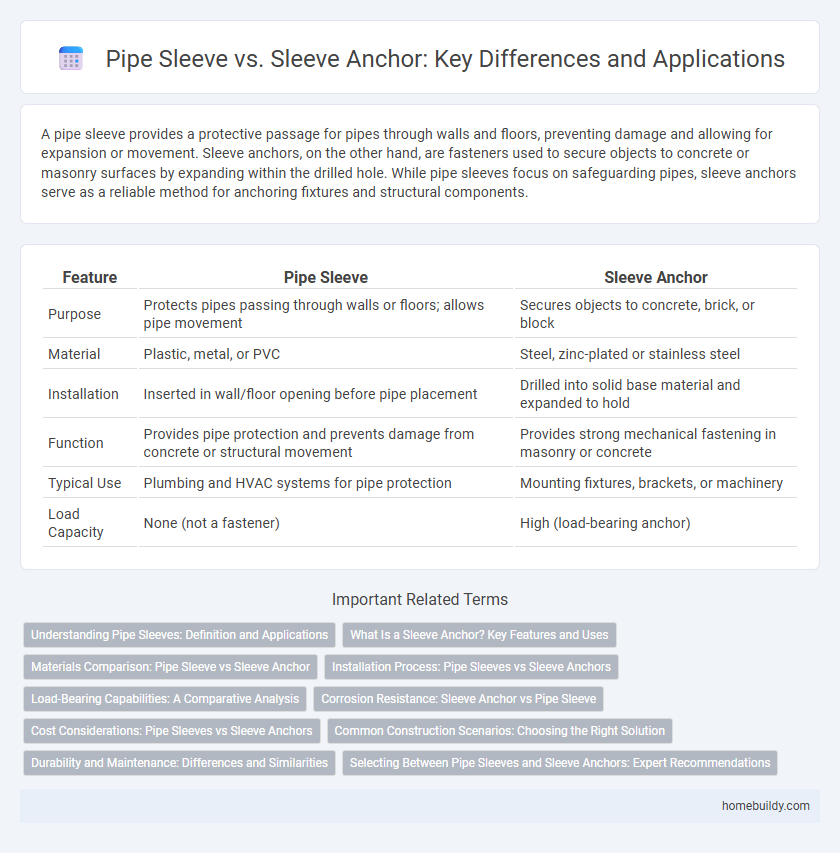

Pipe sleeve vs sleeve anchor Infographic
