homebuildy.com A pipe sleeve serves as a protective conduit allowing pipes to pass through walls or floors, preventing physical damage and facilitating installation or future maintenance. In contrast, a pipe penetration seal specifically provides an airtight and watertight barrier around the pipe where it penetrates a structure, ensuring fire resistance and preventing the passage of smoke, gases, or water. Understanding the distinction between pipe sleeves and pipe penetration seals is essential for proper building safety and compliance with fire and waterproofing standards.
Table of Comparison
| Feature | Pipe Sleeve | Pipe Penetration Seal |
|---|---|---|
| Primary Function | Protects pipe by providing a sleeve through wall openings | Seals gaps around pipes penetrating walls or floors |
| Material | Typically steel, PVC, or galvanized metal | Fire-resistant sealants, intumescent materials, or foam |
| Installation Location | Installed inside wall or floor openings before pipe placement | Applied after pipe installation to seal around it |
| Fire Protection | Does not provide fire stopping | Specifically designed for fire and smoke protection |
| Waterproofing | Minimal waterproofing capability | Often designed to provide moisture and airtight seals |
| Purpose | Structural protection and guidance for pipe movement | Fire safety and integrity of wall/floor penetrations |
Understanding Pipe Sleeves and Pipe Penetration Seals
Pipe sleeves provide a protective conduit allowing pipes to pass through walls or floors without structural damage, while pipe penetration seals ensure airtight and watertight integrity around the pipe opening. Understanding the distinction highlights that pipe sleeves facilitate physical passage, whereas penetration seals secure fire, water, and gas containment. Combining both components enhances building safety by maintaining structural integrity and preventing leaks or fire spread through service penetrations.
Key Differences Between Pipe Sleeves and Pipe Penetration Seals
Pipe sleeves serve as protective cylinders allowing pipes to pass through walls or floors while preventing structural damage, whereas pipe penetration seals provide airtight and watertight barriers around pipes to maintain fire resistance and prevent leaks. Unlike pipe sleeves that mostly accommodate physical space and movement, pipe penetration seals incorporate fire-resistant or flexible materials to ensure safety compliance in building codes. The key difference lies in pipe sleeves primarily facilitating installation and structural integrity, while pipe penetration seals focus on sealing and fireproofing around pipe penetrations.
Applications of Pipe Sleeves in Construction
Pipe sleeves provide essential protection for pipes passing through walls, floors, or ceilings, facilitating thermal expansion and contraction while preventing damage. Commonly used in commercial and residential construction, they enable safe and secure installation of plumbing, electrical, and HVAC systems by maintaining structural integrity and allowing for future adjustments or maintenance. Unlike pipe penetration seals which focus on fire and smoke prevention, pipe sleeves primarily support mechanical safeguarding and ease of pipe replacement.
Typical Uses of Pipe Penetration Seals
Pipe penetration seals are commonly used to maintain fire resistance and prevent the passage of smoke, water, and gases through wall or floor openings where pipes pass. Unlike pipe sleeves, which primarily provide mechanical protection for pipes, pipe penetration seals are essential in fire-rated assemblies to ensure compartmentalization and safety compliance. These seals are typically applied in commercial buildings, industrial plants, and critical infrastructure to enhance building integrity and fire safety.
Advantages of Pipe Sleeves
Pipe sleeves offer superior protection by allowing for pipe movement and thermal expansion without compromising structural integrity, reducing the risk of cracks or damage. They provide easier maintenance and replacement access compared to pipe penetration seals, minimizing downtime and repair costs. Pipe sleeves also enhance fire resistance by creating a clear boundary around the pipe, improving safety in building construction.
Benefits of Pipe Penetration Seals
Pipe penetration seals provide superior fire resistance and airtight integrity compared to standard pipe sleeves, effectively preventing the spread of fire, smoke, and gases through wall or floor penetrations. These seals enhance building safety by maintaining the fire rating of barriers and ensuring compliance with rigorous fire protection standards such as UL 1479 and ASTM E814. Their ability to accommodate movement and thermal expansion also reduces the risk of structural damage and maintains long-term performance in critical infrastructure.
Factors to Consider When Choosing Between Pipe Sleeves and Penetration Seals
Choosing between pipe sleeves and pipe penetration seals depends on factors such as the level of fire resistance required, the type of pipe material, and the specific building code regulations. Pipe sleeves provide structural protection and allow for thermal expansion, while penetration seals focus on creating airtight and fire-resistant barriers around pipes. Other considerations include ease of installation, maintenance needs, and compatibility with insulation systems.
Installation Process: Pipe Sleeve vs Pipe Penetration Seal
The installation process of a pipe sleeve involves placing a protective cylindrical barrier around the pipe before concrete pouring, ensuring the pipe remains isolated and allowing for future movement or replacement. In contrast, a pipe penetration seal requires applying fire-resistant or waterproof sealing materials around the pipe after it has been installed through the wall or floor, focusing on creating a tight barrier to prevent leakages and maintain fire integrity. Pipe sleeves simplify future maintenance by providing a clear path, whereas pipe penetration seals emphasize immediate sealing performance during installation.
Maintenance Requirements for Pipe Sleeves and Penetration Seals
Pipe sleeves require minimal maintenance due to their simple design, typically involving periodic inspections to check for corrosion or physical damage. Pipe penetration seals demand more frequent maintenance because they need regular evaluation to ensure fire-resistance integrity and airtightness, often involving sealant replacement or reapplication. Proper maintenance of penetration seals is crucial to sustain their protective functionality in fire-rated assemblies and prevent potential breaches.
Cost Comparison: Pipe Sleeve vs Pipe Penetration Seal
Pipe sleeves generally offer a lower initial cost compared to pipe penetration seals due to simpler materials and installation processes. Pipe penetration seals, while more expensive upfront, provide superior fire resistance and airtight sealing, potentially reducing long-term maintenance expenses. Choosing between them requires balancing upfront budget constraints with the need for enhanced safety and compliance standards.

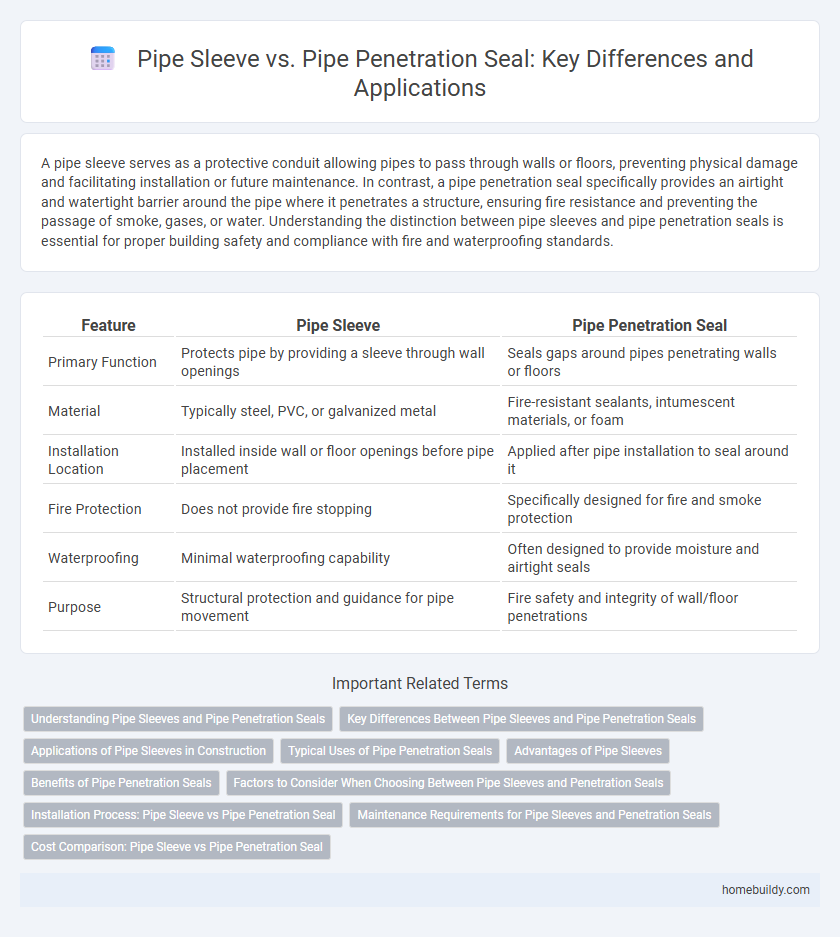

Pipe sleeve vs pipe penetration seal Infographic
