homebuildy.com A pipe sleeve is designed to protect and insulate pipes as they pass through walls or floors, providing a secure barrier against moisture and structural damage. An escutcheon is a decorative cover that conceals pipe holes, enhancing the aesthetic finish around pipes where they enter fittings or fixtures. While pipe sleeves prioritize functionality and protection, escutcheons focus on improving visual appeal and ensuring a clean, polished look.
Table of Comparison
| Feature | Pipe Sleeve | Escutcheon |
|---|---|---|
| Purpose | Protects and isolates pipes passing through walls or floors | Decorative cover for pipe entry points, hides gaps and fittings |
| Material | Metal, plastic, or concrete | Metal, plastic, or chrome-plated brass |
| Installation Location | Inside walls, floors, or ceilings | Surface-mounted around pipe exits |
| Size Range | Varies to accommodate pipe diameter and wall thickness | Standard sizes matching common pipe diameters |
| Functionality | Structural protection, fire resistance, and movement allowance | Aesthetic enhancement and gap covering |
| Cost | Higher due to structural requirements | Lower, primarily decorative |
| Compliance | Often required by building and fire codes | No regulatory requirements |
Introduction to Pipe Sleeve and Escutcheon
A pipe sleeve is a protective cylindrical covering installed around pipes to provide fire resistance, prevent damage, and accommodate pipe movement through walls or floors. An escutcheon is a decorative plate that conceals pipe penetrations at wall or floor surfaces, enhancing aesthetic appeal while providing minimal protection. Both components serve distinct roles in pipe installation, with the sleeve emphasizing structural protection and the escutcheon focusing on finishing and appearance.
What is a Pipe Sleeve?
A pipe sleeve is a protective hollow cylinder installed within walls or floors to encase and safeguard pipes passing through structural elements, preventing damage and allowing for thermal expansion. Unlike an escutcheon, which is a decorative cover plate that conceals pipe penetrations at surface levels, a pipe sleeve provides structural reinforcement and fire resistance during pipe installation. Pipe sleeves are commonly made of steel, PVC, or other durable materials designed to maintain the integrity of walls and floors while allowing pipes to move or expand safely.
What is an Escutcheon?
An escutcheon is a protective or decorative plate that covers the gap where a pipe passes through a wall or floor, providing a clean and finished appearance. Unlike a pipe sleeve, which is a protective tube that allows for pipe movement and expansion, an escutcheon focuses primarily on aesthetics and sealing. Escutcheons are commonly used around plumbing fixtures such as faucets and valves to conceal rough openings and prevent debris from entering.
Key Differences Between Pipe Sleeves and Escutcheons
Pipe sleeves provide structural protection and allow for pipe movement through walls or floors by encasing the pipe, while escutcheons serve as decorative covers that conceal pipe penetrations and finishing gaps. Unlike pipe sleeves, which are typically made from durable materials like steel or PVC to ensure fire resistance and mechanical strength, escutcheons are usually composed of metal or plastic designed for aesthetic appeal. Key differences include functionality--protection versus decoration--and installation location, as sleeves are embedded within building elements whereas escutcheons are surface-mounted around exposed pipes.
Applications of Pipe Sleeves in Plumbing
Pipe sleeves are essential in plumbing for providing protection and structural support when pipes pass through walls, floors, or ceilings, preventing damage from abrasion or movement. They create a barrier against moisture, fire, and sound, enhancing durability and safety in residential and commercial installations. Unlike escutcheons, which primarily serve aesthetic and sealing purposes around pipe penetrations, pipe sleeves are crucial for long-term pipe integrity and compliance with building codes.
Escutcheon Uses in Pipe Installations
Escutcheons serve as decorative and protective covers in pipe installations, concealing pipe penetrations through walls or floors to create a clean, finished appearance while preventing debris and pests from entering gaps. Unlike pipe sleeves, which primarily protect pipes from physical damage and allow for movement or expansion, escutcheons focus on enhancing aesthetics and sealing openings around pipe connections. Commonly used around water supply lines, gas pipes, and drainage systems, escutcheons ensure a neat installation and maintain sanitary conditions by sealing gaps where pipes pass through structural elements.
Materials and Durability: Pipe Sleeve vs Escutcheon
Pipe sleeves are typically made from robust materials such as stainless steel, PVC, or galvanized steel, ensuring high durability and protection against corrosion and mechanical damage in plumbing and construction applications. Escutcheons, often produced from brass, chrome-plated metal, or plastic, focus more on aesthetic appeal and sealing gaps around pipes but generally offer less structural protection compared to pipe sleeves. The choice between pipe sleeve and escutcheon involves balancing the need for long-lasting material strength against decorative finishing and minor sealing functions.
Installation Process: Pipe Sleeve vs Escutcheon
The installation process of a pipe sleeve involves embedding the sleeve into a concrete wall or floor to provide a protective barrier for pipes passing through, ensuring fire resistance and structural integrity. In contrast, an escutcheon is typically installed after the pipe is in place, serving as a decorative cover around the pipe's entry point through walls or floors, usually snapped or slid onto the pipe for a clean finish. While pipe sleeves require precise sizing and positioning during construction, escutcheons offer a more straightforward installation focused on aesthetics and minor sealing.
Cost Comparison: Pipe Sleeve vs Escutcheon
Pipe sleeves generally offer a more cost-effective solution compared to escutcheons, especially in large-scale plumbing projects where durability and protection are prioritized. The materials used in pipe sleeves, often PVC or metal, tend to be less expensive and require less maintenance over time than decorative escutcheons, which are usually made of higher-end materials for aesthetic purposes. Budget-conscious projects benefit from pipe sleeves due to their lower initial purchase price and reduced installation complexity.
Choosing the Right Solution: Pipe Sleeve or Escutcheon?
Pipe sleeves provide comprehensive protection and structural support for pipes passing through walls or floors, preventing damage and maintaining insulation integrity. Escutcheons offer an aesthetic finish by covering pipe penetrations, enhancing the visual appeal without offering structural reinforcement. Choosing between a pipe sleeve and an escutcheon depends on whether protection and durability or decorative appearance is the primary requirement.

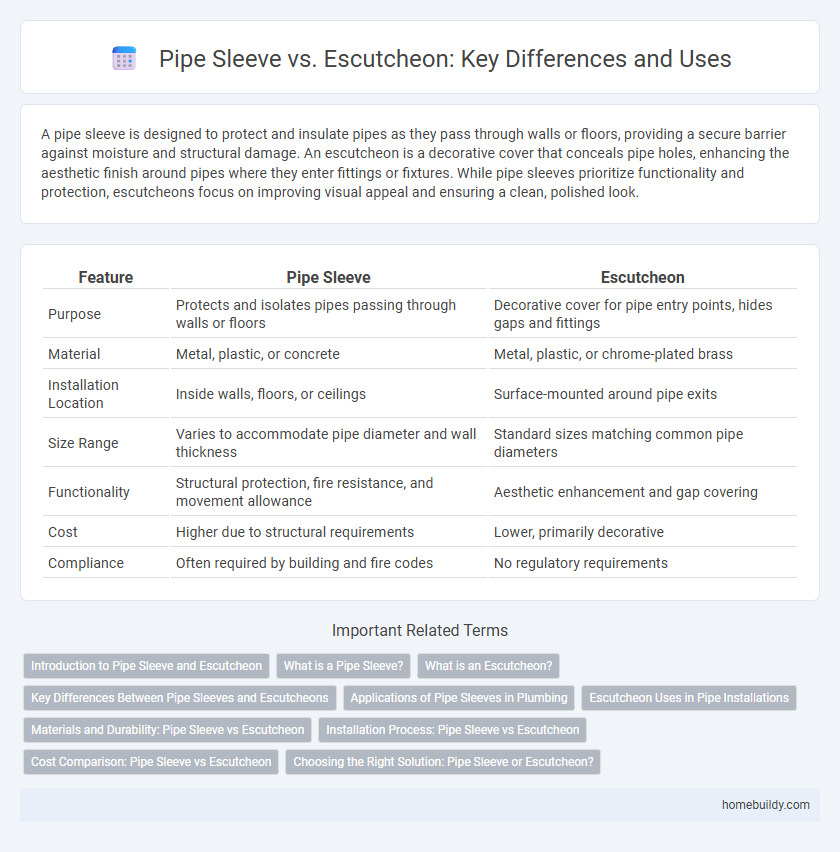

Pipe sleeve vs escutcheon Infographic
