homebuildy.com A pipe sleeve is a protective tube installed within a wall or floor to allow pipes to pass through without damage, while a pipe chase is a dedicated space or cavity designed to house multiple pipes or conduits. Pipe sleeves focus on individual pipe protection and sealing, whereas pipe chases provide an organized pathway for plumbing or electrical systems across a building. Choosing between the two depends on the project's complexity, space requirements, and maintenance accessibility.
Table of Comparison
| Feature | Pipe Sleeve | Pipe Chase |
|---|---|---|
| Definition | Protective tube or casing installed around pipes to prevent damage and allow movement. | Dedicated cavity or channel built into walls or floors to house pipes and wiring. |
| Primary Purpose | Protect pipes from mechanical damage and accommodate thermal expansion. | Organize and conceal pipes within structures for aesthetics and safety. |
| Material | Usually metal (steel, galvanized) or PVC. | Concrete, blockwork, or framed drywall structure. |
| Installation Location | Inserted inside walls, floors, or slabs where pipes penetrate. | Within wall cavities or beneath floors designed specifically to route piping. |
| Size | Diameter slightly larger than pipe diameter for clearance. | Dimensioned to fit multiple pipes or conduits. |
| Cost | Lower, due to simpler materials and installation. | Higher, involves construction modifications and more materials. |
| Maintenance | Allows easy pipe replacement or repairs without wall damage. | Access may require removing finishes or panels. |
| Common Uses | Single pipe passages through concrete slabs or walls. | Routing complex pipe networks or multiple utilities. |
Understanding Pipe Sleeves: Definition and Purpose
Pipe sleeves are cylindrical components installed within walls or floors to protect pipes from damage and allow for thermal expansion and movement. Unlike pipe chases, which are larger enclosed spaces designed to house multiple pipes, pipe sleeves provide a precise barrier that prevents structural materials from contacting the pipes directly. Their primary purpose is to maintain fire safety, reduce mechanical damage, and facilitate maintenance access.
What is a Pipe Chase? Key Concepts Explained
A pipe chase is a designated vertical or horizontal space within a building structure that allows multiple pipes, cables, or conduits to pass through without obstruction. Unlike a pipe sleeve, which is a protective cylinder surrounding a single pipe as it penetrates a wall or floor, a pipe chase provides an organized pathway to facilitate installation and maintenance of utility runs. Pipe chases often include access panels and are designed to accommodate future additions or repairs, ensuring efficient utility management in commercial and residential buildings.
Pipe Sleeve vs Pipe Chase: Core Differences
Pipe sleeves are protective cylindrical components designed to encase pipes as they pass through walls or floors, preventing structural damage and allowing for pipe movement. Pipe chases are larger, often rectangular or square voids within building structures that house multiple pipes and conduits, providing a dedicated space for routing plumbing, electrical, or HVAC systems. The core difference lies in scale and function: pipe sleeves are individual openings for single pipes, while pipe chases serve as comprehensive passageways accommodating multiple utilities.
Material Options: Pipe Sleeves vs Pipe Chases
Pipe sleeves are typically made from materials like PVC, steel, or rubber to provide durable protection and accommodate pipe movement, while pipe chases often use concrete, metal framing, or drywall for structural integration within walls or floors. The choice of material for pipe sleeves emphasizes corrosion resistance and flexibility, ideal for expansion and contraction of pipes. In contrast, pipe chases prioritize rigidity and fire resistance to maintain the integrity of building partitions and facilitate concealed pipe routing.
Installation Process: Sleeves Compared to Chases
Pipe sleeves offer a straightforward installation process by providing a pre-formed, durable conduit that simplifies pipe penetration through walls or floors, reducing the need for extensive cutting or patching. In contrast, pipe chases require creating a dedicated pathway or recess, often demanding more labor-intensive construction and precise measurements to accommodate multiple pipes and future maintenance. The use of pipe sleeves can significantly decrease installation time and enhance structural integrity compared to the complexity and flexibility of pipe chases.
Cost Factors: Pipe Sleeve vs Pipe Chase Solutions
Pipe sleeve solutions typically have lower upfront costs due to simpler materials and installation processes, while pipe chases often incur higher expenses from complex construction and design requirements. Maintenance costs for pipe sleeves tend to be minimal, whereas pipe chases may require more frequent inspections and repairs due to their larger structural integration. Evaluating project-specific factors such as scale, accessibility, and future modifications is essential to determine the most cost-effective option between pipe sleeve and pipe chase solutions.
Applications in Building Construction
Pipe sleeves provide a protective barrier for pipes passing through walls or floors, preventing structural damage and allowing for thermal expansion and contraction in building construction. Pipe chases are larger, accessible enclosures designed to house multiple pipes and facilitate maintenance and future modifications in commercial and residential buildings. Both serve critical roles, with pipe sleeves best suited for single pipe penetrations and pipe chases ideal for organized, multi-pipe systems requiring ongoing access.
Fire Protection and Safety: Sleeve vs Chase
Pipe sleeves offer a reliable fire protection solution by creating a sealed barrier around pipes, preventing fire and smoke spread through openings in fire-rated walls or floors. Pipe chases, while useful for organizing multiple pipes, often lack the necessary fire-stopping features and may allow fire and toxic gases to pass unimpeded. Ensuring compliance with fire safety codes, pipe sleeves provide enhanced containment and maintain the structural fire resistance required in critical safety applications.
Advantages and Disadvantages of Pipe Sleeves
Pipe sleeves provide a protective barrier for pipes passing through walls or floors, reducing the risk of damage and allowing for thermal expansion, which enhances system longevity. They simplify maintenance and replacement by creating a defined pathway, but can add initial installation cost and require precise sizing to prevent leaks or structural weaknesses. Unlike pipe chases, sleeves occupy less space but offer limited access for multiple or complex pipe runs, making them suitable for straightforward installations.
When to Choose Pipe Sleeves Over Pipe Chases
Pipe sleeves are preferred over pipe chases when space constraints require a compact and sealed solution for pipe penetration through walls or floors, providing fire resistance and preventing water ingress. They are ideal for maintaining structural integrity and isolating pipes from building materials, especially in areas subject to movement or vibration. Choosing pipe sleeves ensures easier installation and maintenance in confined spaces where pipe chases would be impractical or disruptive.

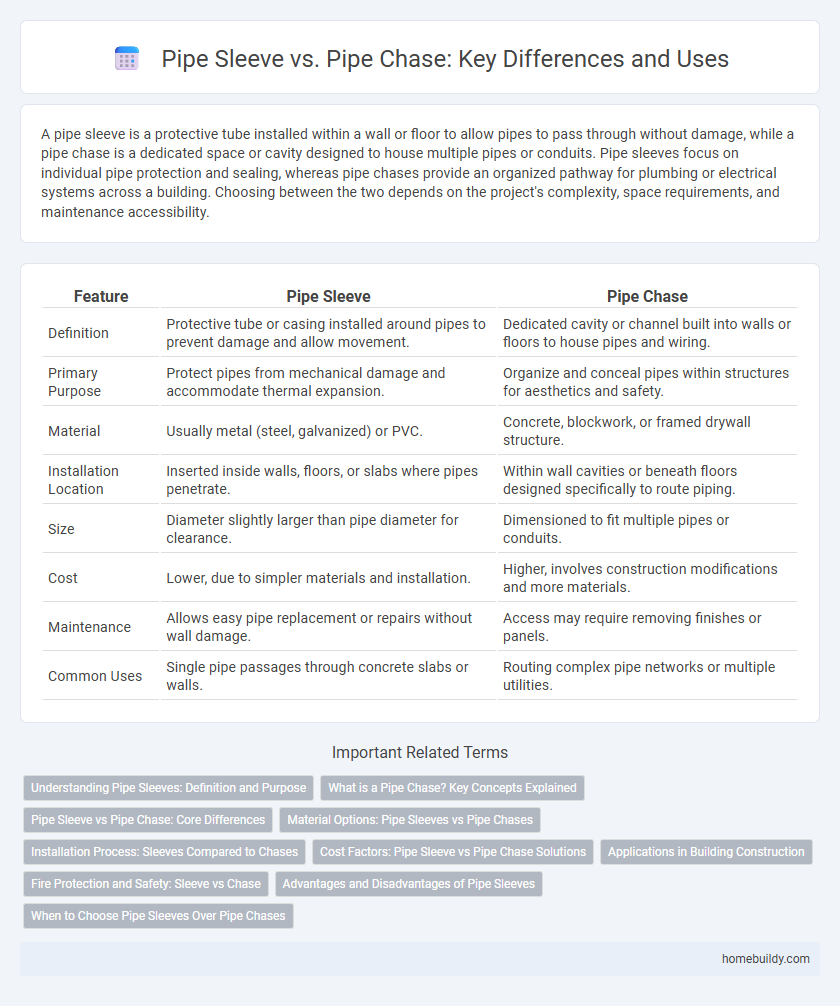

Pipe sleeve vs Pipe chase Infographic
