homebuildy.com Pipe sleeves provide a protective barrier around pipes, preventing damage during installation and allowing for thermal expansion. Pipe jacketing, on the other hand, offers a weather-resistant outer layer that shields pipes from environmental elements such as moisture and UV rays. While pipe sleeves focus on mechanical protection and ease of maintenance, pipe jacketing emphasizes insulation and long-term durability.
Table of Comparison
| Feature | Pipe Sleeve | Pipe Jacketing |
|---|---|---|
| Definition | A protective casing that encases pipes where they pass through walls or floors. | An outer covering applied to pipes for insulation and protection against external elements. |
| Primary Purpose | Protect pipes from physical damage and allow thermal movement. | Provide insulation, weatherproofing, and mechanical protection. |
| Material | Typically PVC, steel, or metal alloys. | Aluminum, PVC, or stainless steel jacketing. |
| Installation Location | At wall or floor penetrations. | Along the full length of the pipe. |
| Thermal Protection | No significant insulation properties. | Designed to improve thermal resistance. |
| Mechanical Protection | Protects against pipe damage at penetrations. | Shields pipes from impacts, weather, and corrosion. |
| Cost | Generally low cost and simple to install. | Higher cost due to materials and insulation features. |
| Maintenance | Minimal maintenance required. | Requires inspection and possible repairs for weather damage. |
Introduction to Pipe Sleeve and Pipe Jacketing
Pipe sleeves are protective cylindrical enclosures designed to safeguard pipes from external damage, environmental factors, and thermal expansion while facilitating easy pipe installation and maintenance. Pipe jacketing, on the other hand, refers to the outer protective layer or covering applied over pipe insulation to enhance durability, weather resistance, and mechanical protection. Both pipe sleeves and jacketing are critical components in piping systems, with sleeves focusing on pipe housing and jacketing emphasizing insulation protection and longevity.
Purpose and Functions of Pipe Sleeves
Pipe sleeves primarily serve as protective barriers that allow pipes to pass safely through walls or floors, minimizing damage and preventing structural stress. They provide a secure, insulated space that accommodates pipe expansion, contraction, and vibration, reducing the risk of leaks and pipe failure. Unlike pipe jacketing, which mainly offers thermal insulation and corrosion protection, pipe sleeves focus on safeguarding the structural integrity and ensuring proper sealing around the pipe penetration points.
Purpose and Functions of Pipe Jacketing
Pipe jacketing protects insulation and piping from environmental damage such as moisture, UV rays, and physical impact, ensuring system longevity. It also provides a vapor barrier that prevents condensation and corrosion on pipes, maintaining thermal efficiency. Unlike pipe sleeves which primarily allow pipe expansion and movement, pipe jacketing serves as a durable outer layer for insulation integrity and mechanical protection.
Material Comparison: Pipe Sleeve vs Pipe Jacketing
Pipe sleeves are typically made from durable materials such as steel, PVC, or nylon, offering robust protection and flexibility for pipe penetrations through walls and floors. Pipe jacketing commonly uses aluminum, stainless steel, or polyethylene, providing corrosion resistance and thermal insulation ideal for outdoor and industrial piping systems. Evaluating material properties reveals pipe sleeves prioritize mechanical strength and ease of installation, while pipe jacketing emphasizes environmental protection and temperature regulation.
Installation Process: Pipe Sleeve vs Pipe Jacketing
Pipe sleeve installation involves sliding a pre-formed tube or cylinder over the pipe, requiring accurate measurements and secure sealing to prevent moisture ingress. Pipe jacketing installation typically entails wrapping or enclosing the pipe with insulating or protective materials, often necessitating additional sealing tapes or adhesives for durability. Both methods demand precise handling, but pipe sleeves generally allow quicker installation due to their pre-fabricated, rigid structure compared to the more flexible and customizable application of pipe jacketing.
Cost Analysis: Pipe Sleeve vs Pipe Jacketing
Pipe sleeves generally offer a lower initial cost compared to pipe jacketing due to simpler materials and installation processes, making them cost-effective for basic protection needs. Pipe jacketing involves higher expenses from advanced insulation materials and specialized labor, resulting in better durability and thermal efficiency. When performing a cost analysis, choosing pipe sleeves minimizes upfront investment, while pipe jacketing provides long-term savings through enhanced energy efficiency and reduced maintenance.
Insulation Efficiency: Pipe Sleeve vs Pipe Jacketing
Pipe sleeves provide targeted insulation by fitting snugly around pipes, minimizing heat loss and condensation with materials such as foam or rubber that offer consistent thermal resistance. Pipe jacketing combines insulation with a protective outer layer, enhancing durability while maintaining thermal performance, often used in harsher environments for both temperature retention and mechanical protection. Comparing insulation efficiency, pipe sleeves typically excel in reducing heat transfer due to direct contact, whereas pipe jacketing adds value by preserving insulation integrity and extending service life in industrial applications.
Durability and Maintenance Requirements
Pipe sleeves offer superior durability compared to pipe jacketing due to their robust construction and resistance to environmental factors such as corrosion and abrasion. Maintenance requirements for pipe sleeves are generally lower, as they provide long-term protection with minimal need for repairs or replacements. In contrast, pipe jacketing may require more frequent inspections and maintenance to address potential damage from impact or exposure.
Applications and Industry Use Cases
Pipe sleeves provide a protective barrier around pipes in construction and infrastructure projects, primarily used to facilitate pipe penetrations through walls, floors, and barriers while maintaining fire resistance and structural integrity. Pipe jacketing, commonly made from materials like aluminum or PVC, offers external insulation and weather protection for pipelines in industries such as oil and gas, HVAC, and chemical processing. While pipe sleeves focus on safety and compliance in building construction and utility installations, pipe jacketing is essential for thermal insulation and corrosion resistance in industrial pipeline systems.
Choosing the Right Solution: Pipe Sleeve or Pipe Jacketing
Pipe sleeves offer a protective barrier primarily for concrete and structural integrity around pipes, while pipe jacketing provides external insulation and weather resistance for thermal performance. Selecting between pipe sleeve and pipe jacketing depends on the application needs such as mechanical protection versus thermal insulation and environmental exposure. Evaluating factors like pipe material, installation environment, and maintenance requirements ensures the optimal protective solution.

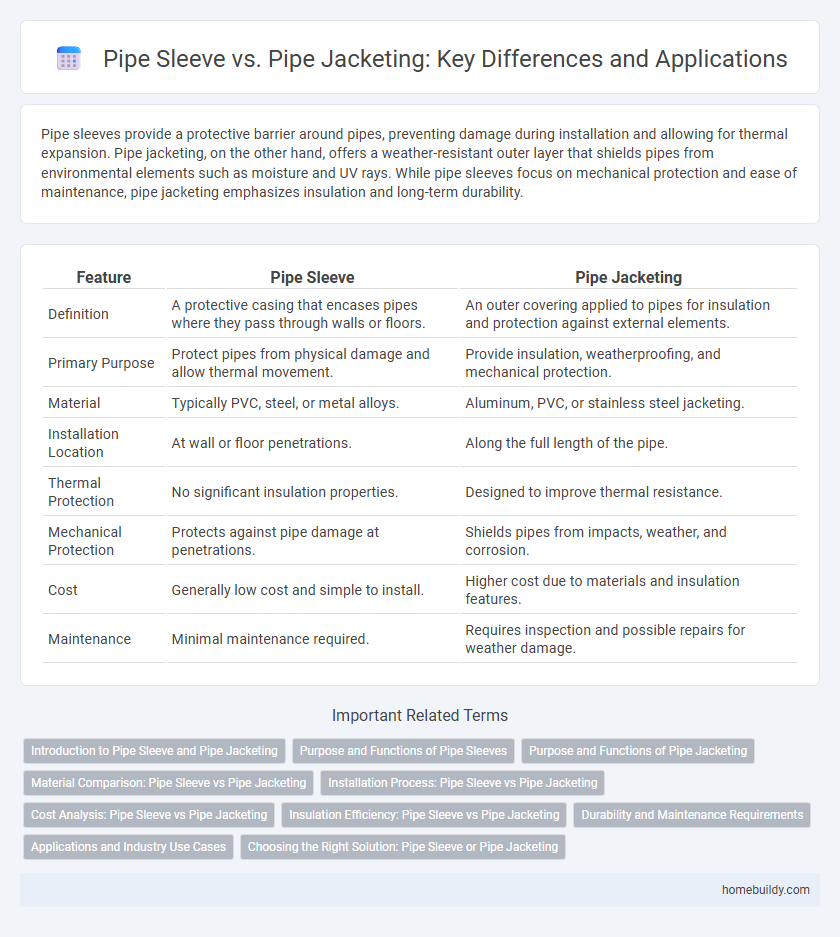

Pipe sleeve vs pipe jacketing Infographic
