homebuildy.com Pipe sleeves are specifically designed to protect and insulate pipes as they pass through walls or floors, providing a tight seal to prevent damage and maintain system integrity. Duct sleeves, on the other hand, are intended for HVAC ducts, allowing for airflow while accommodating thermal expansion and vibration. Understanding the distinct applications and materials of pipe sleeves versus duct sleeves ensures proper installation and long-term performance in building systems.
Table of Comparison
| Feature | Pipe Sleeve | Duct Sleeve |
|---|---|---|
| Purpose | Protects and allows pipe passage through walls or floors | Allows ductwork to pass through structural barriers |
| Material | Steel, PVC, or rubber | Metal (galvanized steel) or specialized plastic |
| Size | Sized to fit various pipe diameters | Sized for larger duct dimensions |
| Installation | Installed prior to pipe placement with sealing for leak prevention | Installed during ductwork setup with airtight sealing |
| Function | Prevents mechanical damage and allows movement due to thermal expansion | Maintains airflow integrity and prevents air leaks |
| Typical Applications | Plumbing, HVAC piping, fire sprinkler systems | HVAC duct systems, ventilation shafts |
| Fire Rating | Often fire-rated for penetration protection | Fire-rated to maintain duct integrity through barriers |
Understanding Pipe Sleeves: Definition and Purpose
Pipe sleeves are cylindrical protective enclosures installed around pipes to allow safe passage through walls, floors, or ceilings while accommodating pipe movement and preventing damage. Unlike duct sleeves, which primarily facilitate airflow in HVAC systems, pipe sleeves are designed to maintain the integrity of plumbing or electrical conduit penetrations by providing fire resistance, insulation, and moisture protection. Key materials for pipe sleeves include steel, PVC, and rubber, chosen based on application requirements such as corrosion resistance and load-bearing capacity.
What is a Duct Sleeve? Key Features Explained
A duct sleeve is a protective conduit designed to encase HVAC ductwork where it passes through walls, floors, or ceilings, preventing damage and ensuring airtight seals. Key features of duct sleeves include fire resistance, corrosion protection, and compatibility with insulation materials to maintain thermal efficiency. Unlike pipe sleeves, duct sleeves accommodate larger dimensions and maintain airflow integrity by minimizing obstructions and leaks around the duct penetration.
Pipe Sleeve vs Duct Sleeve: Major Differences
Pipe sleeves are designed specifically to protect and insulate pipes passing through walls or floors, ensuring durability and preventing damage from external forces or thermal expansion. Duct sleeves, on the other hand, are intended for air duct systems, providing a sealed passage for ventilation ducts and preventing air leakage, which improves HVAC efficiency. Key differences include material composition, with pipe sleeves often made from metal or plastic to resist corrosion and pressure, while duct sleeves are typically made from galvanized steel or flexible materials to accommodate airflow requirements.
Material Choices: Pipe Sleeves vs Duct Sleeves
Pipe sleeves are typically made from durable metals such as steel or PVC to provide robust protection and corrosion resistance for pipes passing through concrete or walls. Duct sleeves, on the other hand, are often constructed from galvanized steel or aluminum, emphasizing lightweight properties and ease of installation for HVAC ductwork. Material selection for pipe sleeves prioritizes strength and chemical resistance, while duct sleeves focus on thermal insulation and airflow efficiency.
Installation Process: Pipe Sleeve vs Duct Sleeve
The installation process for pipe sleeves involves embedding a cylindrical barrier in concrete or masonry to allow pipes to pass through walls or floors, ensuring a tight seal for fire protection and waterproofing. Duct sleeves installation requires a larger opening to accommodate air ducts, often incorporating insulation and vapor barriers to maintain HVAC system efficiency and prevent air leakage. Precise measurement and alignment are crucial in both installations, but pipe sleeves prioritize fluid containment while duct sleeves emphasize airflow and thermal performance.
Applications: Where to Use Pipe Sleeves and Duct Sleeves
Pipe sleeves are primarily used in plumbing and fire protection systems to facilitate pipe passage through walls and floors while allowing for thermal expansion and protection against damage. Duct sleeves find their applications in HVAC systems, providing openings for air ducts to pass through building structures while maintaining air sealing and insulation. Choosing pipe sleeves suits water and gas pipelines, whereas duct sleeves are essential in ventilation and air conditioning installations.
Fire Protection: Pipe Sleeve or Duct Sleeve?
Pipe sleeves provide superior fire protection by maintaining the integrity of fire-rated walls through firestop systems that prevent fire and smoke spread around pipe penetrations. Duct sleeves primarily accommodate air ducts and often require additional fire-resistant materials to achieve similar firestopping performance. Selecting pipe sleeves for fire-sensitive installations ensures compliance with fire safety codes and enhances overall building protection.
Cost Comparison: Pipe Sleeve vs Duct Sleeve
Pipe sleeves typically cost less than duct sleeves due to simpler design and material requirements, making them more economical for basic pipe protection. Duct sleeves, designed for HVAC systems, often involve higher-grade materials and insulation, increasing overall expenses. Selecting pipe sleeves can reduce installation and maintenance costs compared to the more complex duct sleeve options.
Common Mistakes in Sleeve Selection
Selecting a pipe sleeve instead of a duct sleeve often leads to common mistakes such as incorrect sizing and material mismatches, causing inadequate protection and reduced structural integrity. Pipe sleeves are designed to accommodate cylindrical pipes and prevent corrosion or mechanical damage, whereas duct sleeves must support larger, often rectangular ducts with insulation needs. Confusing these two can result in improper ventilation, challenges in fireproofing, and increased maintenance costs in construction projects.
Choosing the Right Sleeve for Your Project
Selecting the right sleeve is crucial for project efficiency, with pipe sleeves designed specifically to protect and allow the passage of pipes through walls or floors, offering corrosion resistance and durability. Duct sleeves, on the other hand, accommodate HVAC ducts and emphasize thermal insulation and air-sealing properties to prevent energy loss. Understanding the material compatibility, load requirements, and environmental exposure of your installation ensures optimal performance and longevity for either pipe sleeves or duct sleeves.

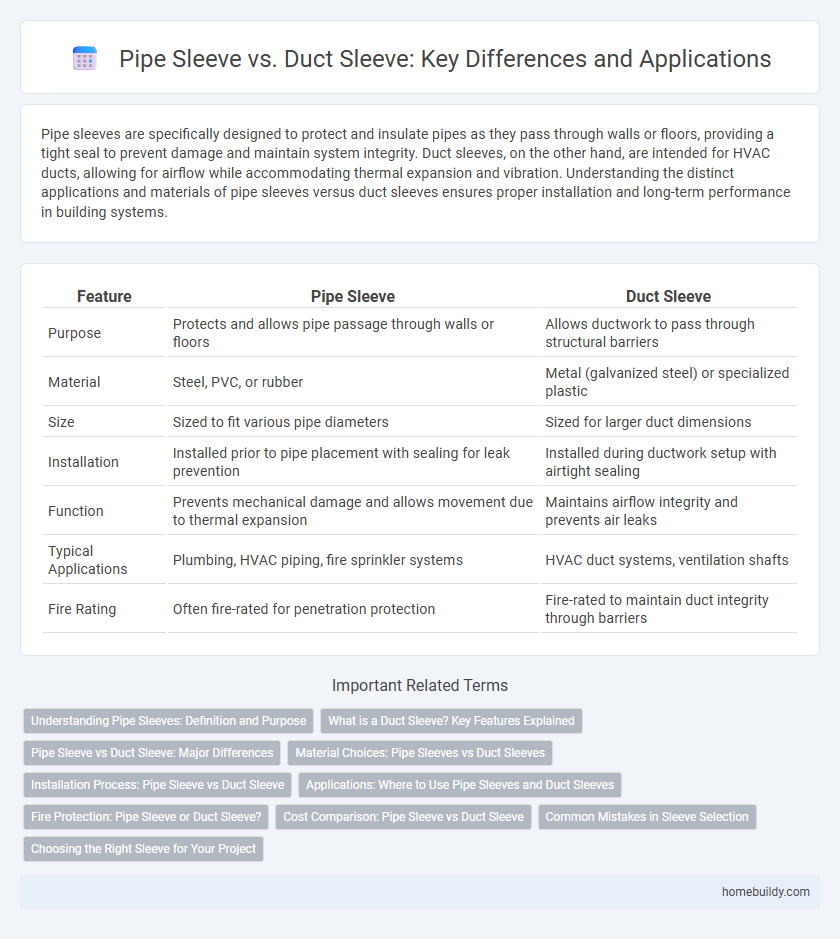

Pipe sleeve vs duct sleeve Infographic
