homebuildy.com Pipe sleeves provide a protective barrier around pipes passing through walls or floors, allowing for movement and preventing damage. Firestop collars specifically enhance fire safety by sealing the gap around plastic pipes, expanding when exposed to heat to prevent the spread of flames and smoke. Choosing between a pipe sleeve and a firestop collar depends on whether protection from physical damage or compliance with fire safety regulations is the primary concern.
Table of Comparison
| Feature | Pipe Sleeve | Firestop Collar |
|---|---|---|
| Purpose | Protects and guides pipes through walls or floors | Prevents fire spread around plastic pipes in wall or floor penetrations |
| Material | Usually metal or plastic | Steel casing with intumescent material |
| Fire Resistance | No inherent fire protection | Provides firestop compliance, expands under heat to seal gaps |
| Installation Location | Around pipe openings | Retrofit or new installations on plastic pipe penetrations |
| Cost | Lower cost | Higher cost due to firestop features |
| Compliance | No fire code compliance impact | Meets fire safety codes and standards (UL, ASTM) |
Understanding Pipe Sleeves and Firestop Collars
Pipe sleeves are protective tubes installed around pipes to safeguard them from physical damage and facilitate easy pipe movement during thermal expansion. Firestop collars are specialized devices designed to prevent the spread of fire and smoke through openings around plastic pipes by expanding and sealing gaps during high temperatures. Understanding the functional differences highlights that pipe sleeves primarily provide mechanical protection, while firestop collars are essential for maintaining fire resistance in penetrations through walls and floors.
Key Differences Between Pipe Sleeves and Firestop Collars
Pipe sleeves provide a protective conduit through walls or floors, allowing pipes to pass without structural damage or interference, while firestop collars are specifically designed to maintain fire resistance by sealing around plastic pipes in the event of a fire. Pipe sleeves are typically non-combustible and serve as a physical barrier, whereas firestop collars expand when exposed to heat, closing gaps to prevent the spread of fire and smoke. The key difference lies in functionality: pipe sleeves facilitate pipe installation and structural protection, whereas firestop collars are integral components of passive fire protection systems.
Applications of Pipe Sleeves in Construction
Pipe sleeves provide essential protection by allowing pipes to pass safely through walls and floors while accommodating thermal expansion and preventing structural damage. They are commonly used in plumbing, HVAC, and electrical installations to safeguard pipes from abrasion, moisture, and fire exposure. Unlike firestop collars designed for fire containment, pipe sleeves primarily serve to streamline pipe installation and ensure long-term structural integrity in various construction projects.
When to Use Firestop Collars Instead of Pipe Sleeves
Firestop collars are essential when maintaining fire resistance ratings in wall or floor penetrations with plastic pipes, as they expand to seal gaps during a fire, preventing flame and smoke spread. Pipe sleeves are suitable for general mechanical protection and ease of pipe installation but lack the intumescent properties critical for firestopping. Choose firestop collars over pipe sleeves in fire-rated assemblies where compliance with fire safety codes and preventing fire penetration through openings is mandatory.
Fire Protection Capabilities: Pipe Sleeve vs Firestop Collar
Pipe sleeves primarily provide physical protection and facilitate pipe installation but lack inherent fire-resistance properties, making them insufficient for fire protection on their own. Firestop collars are specifically designed to contain fire and smoke by expanding during a fire to seal gaps around plastic pipes, effectively preventing fire and smoke spread through penetrations. In fire-rated wall and floor assemblies, firestop collars offer superior fire protection capabilities compared to standard pipe sleeves, meeting stringent building code requirements.
Installation Process: Pipe Sleeve vs Firestop Collar
Pipe sleeves are typically installed during the initial construction phase by embedding them within walls or floors to create a protective barrier for pipes, ensuring fire resistance and structural integrity. Firestop collars are applied after pipe installation, wrapping around the pipe penetration to expand under heat and seal gaps, preventing fire and smoke spread. The pipe sleeve installation is more invasive and foundational, while firestop collars offer a flexible, retrofittable solution for maintaining fireproofing around existing pipes.
Compliance with Building Codes and Standards
A pipe sleeve serves as a protective barrier for pipes passing through walls and floors, ensuring structural integrity and accommodating pipe movement, while firestop collars provide crucial fire-resistant sealing around plastic pipes to prevent fire and smoke spread. Building codes such as the International Building Code (IBC) and National Fire Protection Association (NFPA) standards mandate firestop collars for penetrations requiring fire resistance ratings, ensuring compliance with fire safety regulations. Using pipe sleeves alone often does not meet these fire protection requirements, making firestop collars essential for code-compliant penetrations in fire-rated assemblies.
Cost Comparison: Pipe Sleeves and Firestop Collars
Pipe sleeves typically offer a lower initial cost compared to firestop collars, making them a budget-friendly option for basic pipe penetration protection. Firestop collars, while generally more expensive upfront, provide enhanced fire resistance and code compliance, potentially reducing long-term liability and insurance costs. Evaluating the overall project budget requires balancing the lower material cost of pipe sleeves against the superior safety features and regulatory acceptance of firestop collars.
Durability and Maintenance Considerations
Pipe sleeves offer superior durability compared to firestop collars due to their robust construction from materials like steel or PVC, which resist corrosion and physical damage over time. Maintenance for pipe sleeves is minimal since they provide permanent mechanical protection, whereas firestop collars require periodic inspection and replacement of intumescent components to ensure fire resistance. Choosing pipe sleeves reduces long-term upkeep costs and enhances the lifespan of pipe penetrations in building systems.
Choosing the Right Solution: Pipe Sleeve or Firestop Collar
Selecting between a pipe sleeve and a firestop collar depends on the specific application and fire protection requirements in building construction. Pipe sleeves provide a durable barrier for pipes passing through walls or floors, while firestop collars are designed to prevent the spread of fire and smoke by intumescent material expanding during a fire event. Evaluating factors such as fire resistance rating, pipe material compatibility, and installation environment ensures compliance with safety codes and enhances overall building protection.

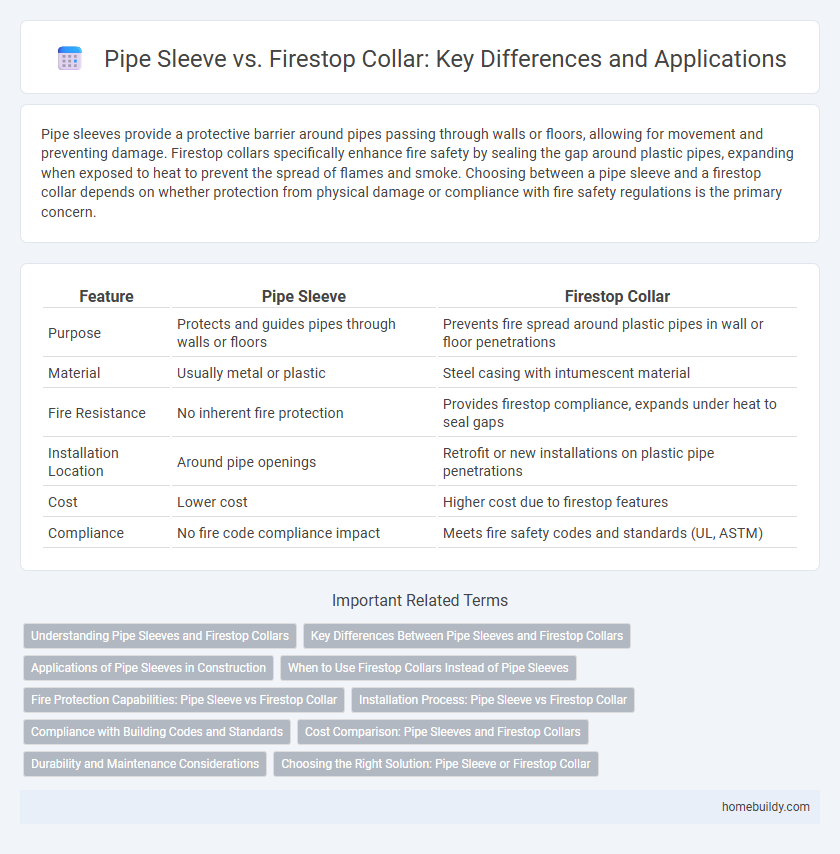

Pipe sleeve vs firestop collar Infographic
