homebuildy.com An outlet box is designed primarily to house electrical outlets and switches, providing a secure enclosure for wiring connections. In contrast, a gang box refers to a type of outlet box that accommodates multiple devices or switches within a single unit, allowing for organized and efficient installation. Choosing between an outlet box and a gang box depends on the number of devices to be installed and the spatial needs of the electrical setup.
Table of Comparison
| Feature | Outlet Box | Gang Box |
|---|---|---|
| Primary Use | Houses electrical outlets and switches | Combines multiple outlets/switches in one box |
| Size | Typically smaller and single compartment | Larger, designed for multiple devices |
| Installation | Mounted individually per device | Installed as a multi-device cluster |
| Capacity | Supports one electrical component | Supports multiple electrical components |
| Common Materials | Metal or plastic | Metal or plastic |
| Typical Usage | Single switches or outlets in residential/commercial wiring | Multiple switches or outlets grouped for convenience |
Introduction to Outlet Boxes and Gang Boxes
Outlet boxes serve as protective enclosures for electrical connections such as switches, outlets, and light fixtures, ensuring safety and structural support within walls. Gang boxes, a type of outlet box, are designed to accommodate multiple devices side-by-side in a single enclosure, facilitating organized wiring and space efficiency. Understanding the distinction between standard outlet boxes and gang boxes is critical for proper electrical installation and compliance with building codes.
Definition: What is an Outlet Box?
An outlet box is a standardized electrical enclosure designed to house wiring connections and secure outlets or switches in residential and commercial buildings. It provides a protective barrier that prevents electrical shorts and supports mounting devices like receptacles or light switches. Unlike a gang box, which refers to the box's capacity to hold multiple devices or switches, an outlet box typically accommodates a single electrical device.
Definition: What is a Gang Box?
A gang box, also known as an electrical box, is a mounting container used to house wiring devices such as switches, outlets, or dimmers. It provides a secure enclosure for electrical connections and helps prevent accidental contact with live wires. Unlike a standard outlet box designed for a single device, gang boxes come in various sizes to accommodate multiple devices within the same unit.
Key Differences Between Outlet Boxes and Gang Boxes
Outlet boxes are designed to house a single electrical device or connection point, typically mounted in walls or ceilings to contain outlets or switches safely. Gang boxes, on the other hand, are larger enclosures that accommodate multiple devices or switches, offering expanded space for complex wiring configurations. The key difference lies in their size and capacity: outlet boxes fit one device, while gang boxes are available in multiple gang sizes to hold two or more devices side by side.
Material Types: Outlet Box vs Gang Box
Outlet boxes and gang boxes are commonly constructed from materials such as plastic (PVC), steel, and aluminum, each selected based on application requirements and electrical code compliance. Plastic outlet boxes offer corrosion resistance and lightweight properties, making them suitable for residential use, while steel gang boxes provide enhanced durability and grounding capabilities preferred in commercial installations. Aluminum options serve as a middle ground, combining moderate strength and corrosion resistance for versatile usage across various electrical setups.
Applications and Uses: Outlet Box vs Gang Box
Outlet boxes are primarily used for housing single electrical devices such as switches or receptacles, ensuring safe enclosure and support within walls. Gang boxes accommodate multiple devices or switches by providing a larger enclosure, ideal for complex installations requiring grouped wiring. Choosing between an outlet box and a gang box depends on the number of devices and the specific wiring configuration needed for residential or commercial electrical applications.
Installation Methods: Outlet Box Compared with Gang Box
Outlet boxes are installed by mounting directly onto wall studs or within junction points, designed to house individual electrical devices like switches or receptacles. Gang boxes accommodate multiple devices by combining compartments into a single enclosure, requiring precise alignment and secure fastening to support additional weight and wiring complexity. Both rely on secure attachment methods and adherence to electrical codes, but gang boxes demand more intricate installation due to their size and multifunctional capacity.
Code Requirements for Outlet and Gang Boxes
Outlet boxes and gang boxes must adhere to National Electrical Code (NEC) requirements, which specify box fill calculations based on conductor size and number to prevent overheating and ensure safety. NEC Article 314 mandates that outlet boxes allow sufficient space for wiring connections, with volume requirements dependent on wire gauge and device count, while gang boxes, used to house multiple switches or receptacles, must meet similar volume and mounting criteria to accommodate multiple devices safely. Proper installation following NEC standards reduces the risk of electrical fires and maintains compliance with local building codes.
Pros and Cons: Outlet Box vs Gang Box
Outlet boxes offer a compact solution designed for single electrical devices, providing easy installation and reduced material cost, ideal for straightforward wiring tasks. Gang boxes accommodate multiple devices in one enclosure, allowing for versatile configurations and centralized wiring but may require more space and complicate installation. Choosing between outlet boxes and gang boxes depends on the complexity of the electrical setup and available wall space.
Choosing the Right Electrical Box for Your Project
Outlet boxes and gang boxes serve distinct functions in electrical installations, with outlet boxes designed to house single electrical devices such as switches or receptacles, while gang boxes accommodate multiple devices within a single enclosure. Selecting the right electrical box depends on the number of devices, the type of wiring, and the installation environment, ensuring compliance with electrical codes and safety standards. Properly choosing between an outlet box and a gang box enhances wiring efficiency and prevents overcrowding, reducing risks of electrical faults and simplifying future maintenance.

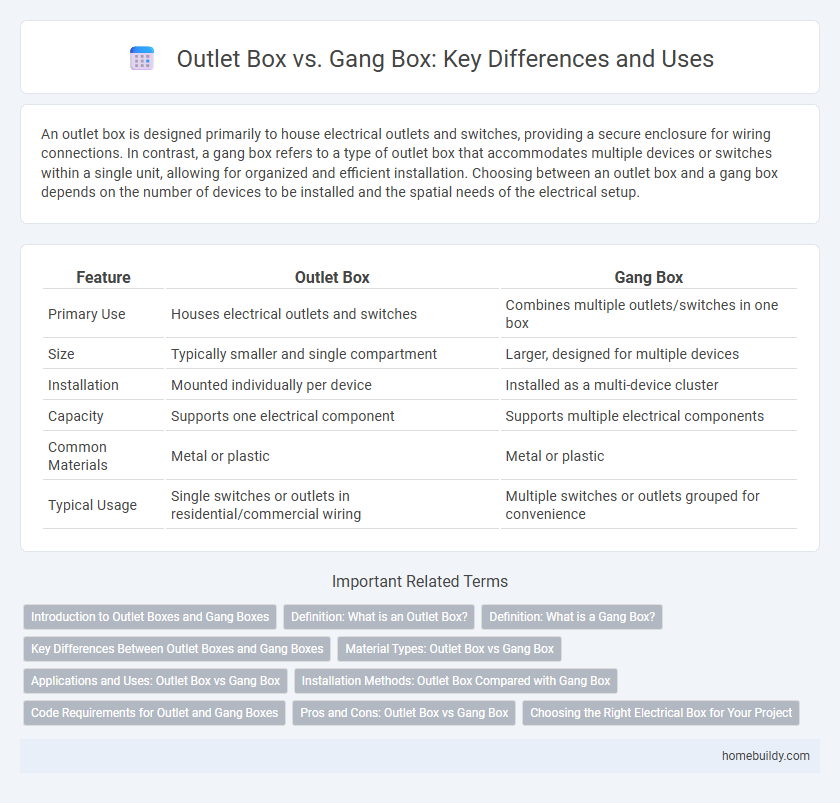

Outlet box vs Gang box Infographic
