homebuildy.com Remodel outlet boxes are designed for installation in existing walls without removing drywall, featuring adjustable clamps or wings that secure the box to the drywall from the inside. New work outlet boxes are intended for use during new construction or renovations before drywall installation, typically attaching directly to wall studs for maximum stability. Choosing the correct outlet box ensures proper electrical safety and compliance with building codes during installation or remodeling projects.
Table of Comparison
| Feature | Remodel Outlet Box | New Work Outlet Box |
|---|---|---|
| Installation | Installed in existing walls without opening studs | Installed during framing, attached directly to studs |
| Use Case | Ideal for renovation and retrofit projects | Best for new construction and major remodels |
| Mounting | Clamps to drywall for secure fit | Nail or screw attached to framing |
| Material | Usually plastic or metal, compact design | Often metal or heavy-duty plastic |
| Capacity | Limited wiring space | More wiring space for complex setups |
| Cost | Generally lower due to simpler installation | Higher cost tied to framing work |
| Code Compliance | Meets electrical code for retrofit work | Required for new construction projects |
Introduction to Outlet Boxes: Remodel vs New Work
Remodel outlet boxes are designed for installation in existing walls without the need to access wall studs, featuring adjustable clamps or wings to secure the box directly to drywall. New work outlet boxes, on the other hand, attach securely to wall studs before drywall installation, providing a stable and flush mounting surface for electrical devices. Both types comply with National Electrical Code (NEC) standards but serve distinct purposes based on construction phase and accessibility.
What is a Remodel Outlet Box?
A remodel outlet box is specifically designed for installation in existing walls without access to wall studs, allowing electricians to retrofit outlets by securing the box to drywall. Unlike new work outlet boxes that require attachment to framing during construction, remodel boxes use mounting wings or clamps that anchor tightly behind the drywall. This solution ensures minimal damage to finished surfaces while providing a secure and code-compliant enclosure for electrical devices.
What is a New Work Outlet Box?
A new work outlet box is designed for installation in open wall studs or ceiling joists before drywall or other wall surfaces are applied, allowing for secure mounting and easy wiring access during construction. It typically features mounting brackets or ears to attach firmly to framing, ensuring stability for electrical devices like switches and outlets. These boxes differ from remodel outlet boxes, which are made for retrofit projects and clamp to existing drywall without requiring access to the wall cavity.
Key Differences Between Remodel and New Work Outlet Boxes
Remodel outlet boxes are designed for installation in existing walls without the need to access studs, featuring brackets or clamps that secure directly to drywall. New work outlet boxes require attachment to wall studs or framing before drywall installation, offering more robust support for fixtures. The key differences lie in their mounting methods, ease of installation, and suitability for renovation versus new construction projects.
When to Use a Remodel Outlet Box
A remodel outlet box is ideal for retrofitting electrical outlets in existing walls where access to wall studs is limited or impossible. This type of box features clamping mechanisms that secure directly to drywall, making it suitable for updating outlets without extensive wall demolition. Remodel outlet boxes are commonly used in renovation projects to replace or add outlets without opening up entire wall sections.
When to Use a New Work Outlet Box
A new work outlet box is designed for installation during the initial construction phase when wall studs are exposed, providing a secure and stable mounting point for electrical outlets. Use a new work outlet box when installing wiring in unfinished walls, as its extended brackets allow for easy attachment directly to framing. This type of box ensures proper alignment and support before drywall or wall paneling is applied, making it ideal for new construction or major renovations.
Installation Process: Remodel Outlet Box
The installation process of a remodel outlet box involves cutting a hole in existing drywall and securing the box with built-in clamps or wings that hold it firmly to the wall without needing access to the wall studs. This method simplifies installation in finished walls where studs are inaccessible, ensuring a secure and flush fit for electrical devices. Remodel outlet boxes accommodate retrofitting needs by minimizing wall damage and eliminating the requirement for extensive construction or framing adjustments.
Installation Process: New Work Outlet Box
New work outlet boxes require installation during the framing stage, allowing them to be securely attached to wall studs before drywall is installed. This process involves nailing or screwing the box directly to the stud, ensuring proper alignment and stability for wiring and device mounting. The accessibility during construction simplifies cable management and ensures compliance with electrical codes.
Pros and Cons of Each Outlet Box Type
Remodel outlet boxes are designed for installation in existing walls without opening large sections, allowing for a quicker and less invasive upgrade, but they may offer limited wiring space and less secure mounting compared to new work boxes. New work outlet boxes provide sturdy attachment to wall studs during initial construction or major renovations, offering ample room for wiring and increased durability; however, they require open framing and are not suitable for retrofit projects. Choosing between remodel and new work outlet boxes depends on the project scope, wall accessibility, and the need for secure fixture support.
Choosing the Right Outlet Box for Your Project
Selecting the appropriate outlet box depends on the installation environment and project requirements. Remodel outlet boxes feature adjustable clamps designed for installation in existing walls without opening the studs, making them ideal for retrofitting tasks. New work outlet boxes attach directly to studs or framing before drywall installation, providing a secure and stable foundation for new construction projects.

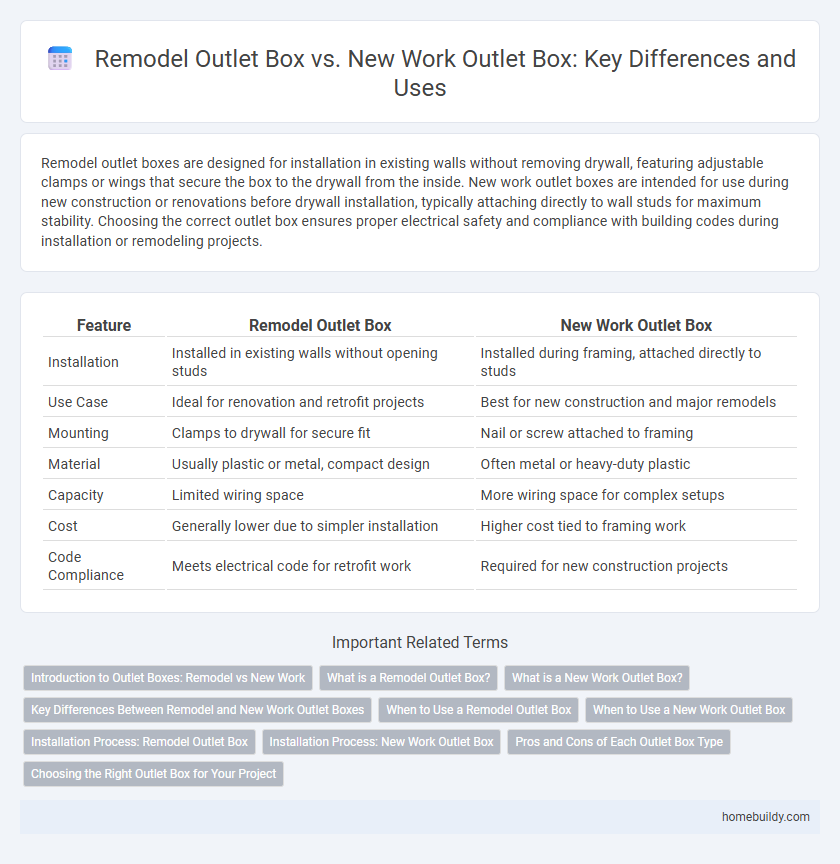

Remodel outlet box vs New work outlet box Infographic
