homebuildy.com Anchor bolt grouting ensures a strong, stable foundation by filling gaps between the bolt and the drilled hole, preventing movement and corrosion. Anchor bolt torqueing applies a specified rotational force to secure the bolt, providing immediate mechanical clamping and structural integrity. Combining proper grouting with accurate torqueing enhances load transfer and long-term durability of anchorage installations.
Table of Comparison
| Feature | Anchor Bolt Grouting | Anchor Bolt Torqueing |
|---|---|---|
| Definition | Securing bolts by filling voids with grout for load transfer and stability. | Applying torque to tighten bolts ensuring mechanical clamping force. |
| Installation Method | Inject grout into drilled hole before bolt insertion or after positioning. | Use torque wrench to achieve specified bolt tension. |
| Load Transfer | Relies on grout bond strength and bearing area. | Depends on friction and bolt tension between bolt and structure. |
| Application | Ideal for heavy structural loads and dynamic environments. | Best for precise tension control in mechanical connections. |
| Durability | High resistance to corrosion and loosening if grout quality is maintained. | Requires periodic inspection to prevent bolt relaxation. |
| Advantages | Enhanced bonding, vibration damping, and sealing. | Quick installation, adjustable tension, and reusability. |
| Disadvantages | Longer curing time and potential grout shrinkage. | Risk of bolt loosening without proper maintenance. |
Introduction to Anchor Bolt Installation Methods
Anchor bolt installation methods primarily include grouting and torqueing, each serving distinct structural purposes. Grouting involves embedding the anchor bolt in a cementitious material to ensure load distribution and corrosion protection, enhancing long-term stability. Torqueing applies a specified rotational force to tighten the bolt, ensuring immediate clamping strength and precise load transfer between connected components.
What is Anchor Bolt Grouting?
Anchor bolt grouting involves filling the space between the anchor bolt and the surrounding material with a grout mixture to enhance load transfer, corrosion resistance, and structural stability. This process ensures a solid bond and distributes stresses evenly, preventing bolt loosening and improving durability in construction and industrial applications. Grouting is particularly critical in heavy machinery foundations and seismic zones to maintain anchor integrity under dynamic loads.
Understanding Anchor Bolt Torqueing
Anchor bolt torqueing ensures precise clamping force is applied, maintaining structural integrity and preventing loosening under dynamic loads. Unlike grouting, which focuses on filling voids for stability and corrosion protection, torqueing directly controls tension in the bolt, critical for load-bearing connections. Proper torqueing reduces the risk of overstress and uneven load distribution, optimizing anchor bolt performance in construction applications.
Key Differences Between Grouting and Torqueing
Anchor bolt grouting involves filling the gap between the anchor bolt and the base material with a grout mixture to enhance load distribution and corrosion resistance, whereas anchor bolt torqueing applies a specific torque to the bolt nut to achieve the required clamping force and secure structural connections. Grouting primarily improves the bond and stability of the anchor within concrete or masonry, while torqueing ensures mechanical tension and prevents bolt loosening under operational loads. The key differences lie in their purposes: grouting addresses durability and load transfer, whereas torqueing focuses on mechanical fastening and tension control.
Factors Influencing the Choice of Installation Method
The choice between anchor bolt grouting and torqueing depends heavily on factors such as load requirements, environmental conditions, and material compatibility. Grouting is preferred in situations demanding corrosion protection and uniform load transfer, especially in concrete with irregularities. Torqueing is favored when precise preload control is necessary, ensuring bolt tension without over-tightening or damaging the base material.
Performance Considerations: Grouted vs. Torqued Anchor Bolts
Grouted anchor bolts provide superior load distribution and resistance to corrosion by filling the entire anchor cavity with high-strength grout, enhancing long-term durability in structural applications. Torqued anchor bolts rely on mechanical tension achieved through precise torque application, offering immediate and adjustable clamping force but may be susceptible to loosening under dynamic loads or vibrations. Performance considerations dictate that grouted bolts excel in static load scenarios, while torqued bolts are preferred when ease of installation and immediate load transfer are critical.
Installation Process Comparison
Anchor bolt grouting involves filling the voids around the bolt with cementitious or chemical grout to ensure proper load transfer and corrosion protection, often requiring curing time before load application. Anchor bolt torqueing, on the other hand, relies on applying specific torque to the bolt to achieve the desired clamping force immediately, demanding precise torque tools and calibration. Grouting provides long-term stability and protection, while torqueing offers immediate fastening but may require regular inspection to maintain tension.
Advantages and Disadvantages of Each Technique
Anchor bolt grouting ensures enhanced load distribution and corrosion protection by filling voids around the bolt, minimizing movement and increasing long-term stability, but it can be time-consuming and requires precise application to avoid gaps. Anchor bolt torqueing offers immediate mechanical pre-tensioning, allowing for quick adjustments and straightforward inspection; however, it risks loosening under dynamic loads and may induce stress concentrations that compromise structural integrity if not properly controlled. Choosing between grouting and torqueing depends on specific project demands, environmental conditions, and the required durability of the anchor system.
Common Applications for Grouted and Torqued Anchor Bolts
Anchor bolt grouting is commonly used in heavy-duty construction projects such as securing base plates for large machinery, wind turbine foundations, and bridge piers where load distribution and corrosion protection are critical. Torqued anchor bolts are preferred in applications requiring precise clamping forces, including steel structure connections, equipment mounting, and seismic-resistant frameworks to ensure structural integrity and safety. Both methods are essential in different engineering scenarios, emphasizing the need to choose based on load, environmental conditions, and installation requirements.
Best Practices for Ensuring Secure Anchor Bolt Connections
Proper anchor bolt grouting ensures uniform load distribution and prevents voids that can compromise the connection's integrity, making it essential for long-term stability. Anchor bolt torqueing requires precise application of specified torque values to achieve optimal clamping force without over-stressing the bolt. Combining meticulous grouting with controlled torqueing practices enhances overall anchor bolt performance and safety in structural applications.

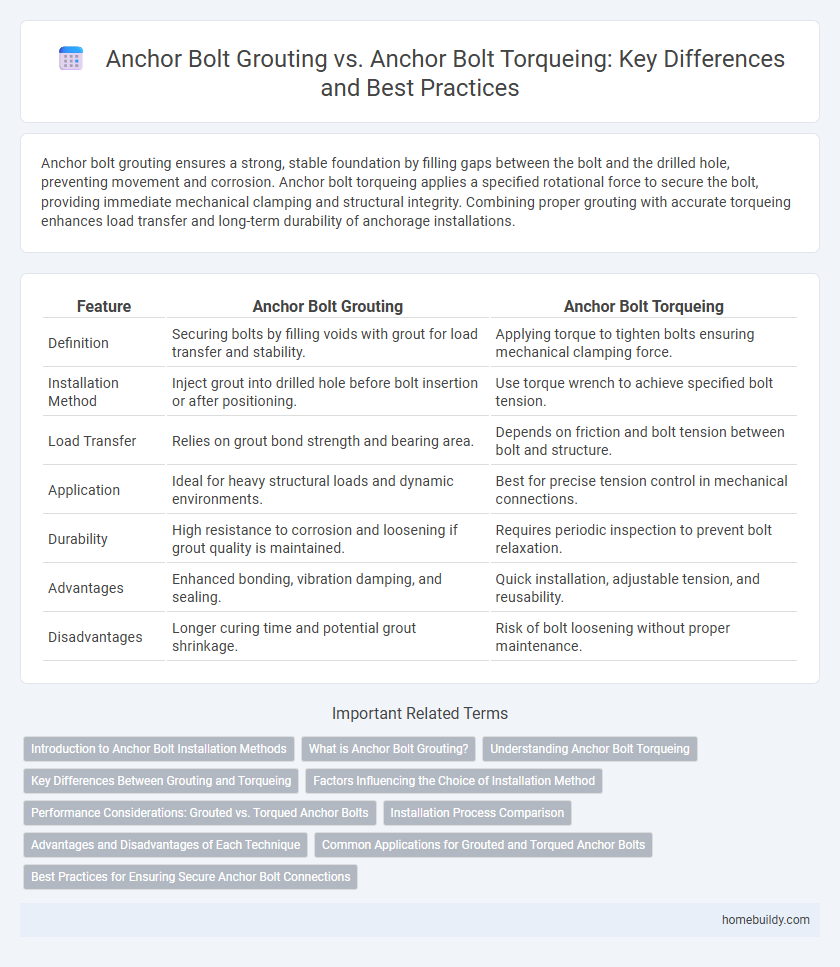

Anchor bolt grouting vs Anchor bolt torqueing Infographic
