homebuildy.com Z-flashing is installed over horizontal joints to prevent water infiltration by directing moisture away from the building envelope, while counter flashing is embedded into the wall above the base flashing to cover and protect it from the elements. Z-flashing typically has a Z-shaped profile that fits over siding seams, creating an effective barrier against rainwater. Counter flashing seals and shields the upper edge of flashing systems, ensuring a robust waterproofing solution in roofing and wall assemblies.
Table of Comparison
| Feature | Z-Flashing | Counter Flashing |
|---|---|---|
| Purpose | Prevents water infiltration at horizontal joints in siding | Protects top edge of base flashing by covering it |
| Installation Location | Behind siding at horizontal overlaps | Overlapping base flashing and wall, often on chimneys or walls |
| Material | Metal or flexible flashing strip | Metal flashing, often copper or aluminum |
| Function | Redirects water away from horizontal joints, preventing leaks | Seals and protects base flashing edges from water penetration |
| Common Use | Siding overlaps, window and door openings | Roof-to-wall joints, chimneys, parapets |
| Installation Complexity | Relatively simple to install during siding application | More complex; requires careful sealing and integration with roofing |
Introduction to Z-Flashing and Counter Flashing
Z-flashing is a weather-resistant technique that involves installing a Z-shaped metal or vinyl strip to direct water away from siding seams and window edges, preventing moisture infiltration. Counter flashing is a complementary method used primarily on roof-wall intersections, overlapping base flashing to seal joints against water penetration. Both Z-flashing and counter flashing are essential in building envelope systems for moisture control and long-term structural durability.
Understanding Z-Flashing: Definition and Function
Z-flashing is a weatherproofing technique used in construction to direct water away from critical joints, typically installed above windows and doors to prevent moisture infiltration. Unlike counter flashing, which covers and protects the upper edge of base flashing typically at roof-wall intersections, Z-flashing is shaped like the letter "Z" and actively channels water away from wall assemblies. This method is essential for maintaining building envelope integrity by reducing the risk of water damage and improving durability.
What Is Counter Flashing? Key Features Explained
Counter flashing is a critical component in roofing designed to prevent water infiltration by covering and sealing the edge of base flashing. It is typically installed over the base flashing at roof joints, chimneys, or wall intersections, providing an overlapping waterproof barrier. Unlike Z-flashing, which is shaped like a "Z" to direct water away from siding or window trims, counter flashing is embedded into the structure and sealed with mortar or caulk to create a durable and watertight finish.
Installation Methods: Z-Flashing vs Counter Flashing
Z-flashing is installed by inserting it into a groove or nail slot on the siding, then overlapping with subsequent siding panels to prevent water infiltration. Counter flashing is typically embedded into a masonry wall or secured over the base flashing to divert water away from the joint between roof and wall surfaces. Installation of Z-flashing prioritizes seamless integration with siding materials, while counter flashing requires precise cutting and sealing to maintain the integrity of the waterproof barrier.
Materials Used in Z-Flashing and Counter Flashing
Z-flashing typically uses thin, flexible metal such as aluminum or galvanized steel designed to direct water away from vulnerable joints, ensuring durability and resistance to corrosion. Counter flashing is often made from more rigid metals like copper or stainless steel, providing a protective cover over base flashing to enhance waterproofing and withstand harsher weather conditions. The choice of materials in Z-flashing and counter flashing critically influences their performance in terms of longevity, weather resistance, and maintenance needs.
Applications: Where to Use Z-Flashing or Counter Flashing
Z-flashing is primarily used in applications where moisture penetration between siding panels and windows or doors needs to be prevented, making it ideal for wood or vinyl siding installations. Counter flashing, however, is designed for integration with roofing materials to cover and direct water away from masonry joints, chimneys, or wall flashing, ensuring protection against leaks in vertical structures. Choosing between Z-flashing and counter flashing depends on the building component involved and the type of materials requiring moisture barriers.
Performance Comparison: Water Protection and Durability
Z-flashing provides superior water protection by directing moisture away from wall assemblies more efficiently than counter flashing, reducing the risk of water infiltration. Its design enhances durability by minimizing exposure to weather elements and preventing corrosion at the joint. In contrast, counter flashing is typically less effective in shedding water, often requiring more maintenance to sustain long-term performance.
Cost Differences Between Z-Flashing and Counter Flashing
Z-flashing typically incurs lower installation costs compared to counter flashing due to its simpler design and easier integration during siding installation. Counter flashing requires more specialized labor and materials, leading to higher upfront expenses and maintenance costs. Homeowners should weigh these cost differences against long-term durability and protection needs when choosing between Z-flashing and counter flashing.
Maintenance Requirements: Z-Flashing vs Counter Flashing
Z-flashing requires minimal maintenance due to its installation within wall joints, which protects it from direct exposure to weather elements and debris accumulation. Counter flashing often demands regular inspection and resealing, as it is exposed and prone to damage from wind, rain, and thermal expansion. Proper upkeep of counter flashing is crucial to prevent water infiltration, whereas Z-flashing offers a more durable, low-maintenance solution for moisture management.
Choosing the Right Flashing for Your Project
Z-flashing provides superior water diversion by overlapping siding panels, ideal for preventing moisture infiltration at horizontal joints, while counter flashing is designed to cover and protect vertical surfaces such as chimneys or walls where they meet roofs. Selecting the right flashing depends on the specific application: Z-flashing is best for siding installations requiring enhanced moisture management, whereas counter flashing is essential for sealing and shielding roof-to-wall intersections. Proper installation of either flashing type ensures durable protection against water damage and extends the lifespan of building exteriors.

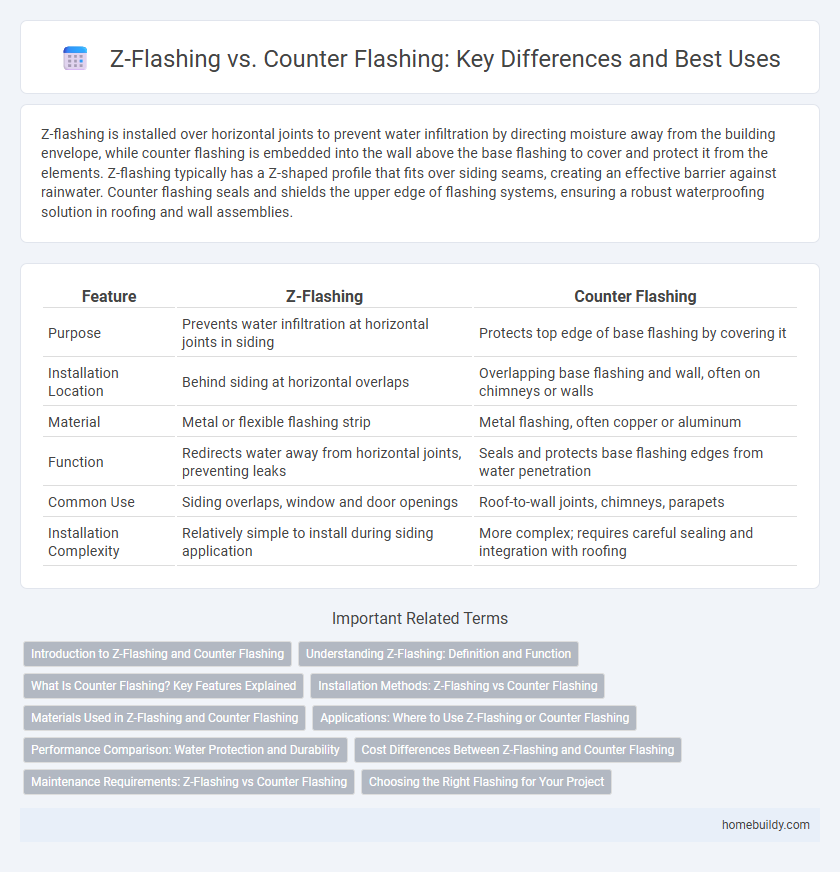

Z-flashing vs counter flashing Infographic
