homebuildy.com Z-flashing and cap flashing serve different purposes in waterproofing building exteriors, with Z-flashing primarily used to direct water away from horizontal surfaces like window sills and seams. Unlike cap flashing, which covers and seals vertical joints or edges to prevent water infiltration, Z-flashing is typically installed beneath siding to create a drip edge that channels moisture outward. Choosing between Z-flashing and cap flashing depends on the specific architectural detail and the type of water exposure expected.
Table of Comparison
| Feature | Z-Flashing | Cap Flashing |
|---|---|---|
| Design | Single angled metal strip shaped like the letter "Z" | Flat or curved metal piece covering joints |
| Purpose | Diverts water away from wall cladding joints | Protects vertical joints and overlaps |
| Installation Location | Between overlapping siding courses | On top of wall intersections or joints |
| Waterproofing Efficiency | High - prevents water intrusion behind siding | Moderate - covers and seals visible joints |
| Material | Galvanized steel, aluminum, or other metals | Same as Z-flashing |
| Cost | Generally lower due to simpler design | Usually higher due to more material and complexity |
| Common Applications | Vinyl siding, wood siding overlaps | Window and door perimeters, wall joints |
Understanding Z-Flashing and Cap Flashing
Z-flashing is a metal or vinyl flashing shaped like the letter "Z" that directs water away from vulnerable joints, commonly used above windows and siding to prevent moisture infiltration. Cap flashing, on the other hand, covers the top edge of a wall or chimney to protect against water penetration by shedding water downward. Understanding the specific installation methods and applications of Z-flashing versus cap flashing is essential for effective moisture management in building construction.
Key Differences Between Z-Flashing and Cap Flashing
Z-flashing is a horizontal flashing technique designed to divert water away from wall joints, commonly used between siding panels, while cap flashing is a protective covering installed over vertical surfaces or joints such as window and door headers. The key differences between Z-flashing and cap flashing lie in their shape, installation position, and specific function: Z-flashing typically has a Z-shaped profile and is installed between siding layers to prevent water infiltration, whereas cap flashing has an L-shaped or custom profile placed over joints or protrusions to shield against moisture. These distinctions affect their effectiveness in moisture management within building envelopes, ensuring targeted protection based on application scenarios.
Material Types Used in Z-Flashing vs Cap Flashing
Z-flashing is typically fabricated from flexible materials like vinyl, aluminum, or galvanized steel, allowing it to easily fit into siding joints and prevent water infiltration. Cap flashing often utilizes more rigid materials such as copper, stainless steel, or painted aluminum, designed to cover wall projections or parapets with durability and corrosion resistance. The choice of material in Z-flashing versus cap flashing directly impacts their effectiveness in weatherproofing and installation adaptability.
Installation Methods: Z-Flashing vs Cap Flashing
Z-flashing installation involves embedding the metal flashing into the siding material's groove, creating a tight seal against water intrusion. Cap flashing is installed over the top edge of a surface, such as siding or a wall seam, acting as a protective cover to divert moisture away. The choice between these methods depends on siding type and exposure, with Z-flashing commonly used in lap siding and cap flashing preferred for areas requiring visible moisture barriers.
Applications: When to Use Z-Flashing or Cap Flashing
Z-flashing is ideal for horizontal siding joints and window openings where water infiltration prevention is critical, as it directs water away from the structure more effectively than cap flashing. Cap flashing is commonly used on vertical surfaces or where a clean, finished edge is desired, such as chimney or wall intersections. Choosing Z-flashing ensures better moisture management in horizontal gaps, while cap flashing suits vertical transitions and aesthetic needs.
Water Resistance and Weatherproof Performance Comparison
Z-flashing offers superior water resistance by directing moisture away from the building envelope with its angled design, preventing water infiltration more effectively than cap flashing. The continuous barrier formed by Z-flashing enhances weatherproof performance, especially in areas prone to heavy rainfall or snow accumulation. Cap flashing, while functional, can be more prone to water pooling and requires meticulous installation to avoid leaks, making Z-flashing the preferred choice for long-term durability.
Cost Analysis: Z-Flashing vs Cap Flashing
Z-flashing typically offers a cost advantage over cap flashing due to its simpler installation process and lower material expenses, with average costs ranging from $1 to $3 per linear foot compared to $2 to $5 for cap flashing. Z-flashing requires fewer specialized labor skills and less time, reducing overall labor costs, while cap flashing often demands more precise fitting and sealing techniques, increasing installation complexity and price. Budget-conscious construction projects favor Z-flashing for its economic efficiency without compromising essential moisture protection.
Durability and Maintenance Requirements
Z-flashing offers superior durability compared to cap flashing due to its seamless design that effectively prevents water infiltration and resists warping or cracking under weather stress. Maintenance requirements for Z-flashing are minimal, as its installation creates fewer joints where debris and moisture can accumulate, reducing the need for frequent inspections or repairs. In contrast, cap flashing often requires regular upkeep to address potential gaps and ensure its waterproofing effectiveness over time.
Common Building Codes and Compliance
Z-flashing and cap flashing both serve as essential moisture barriers in building construction, but building codes often specify installation requirements for Z-flashing due to its superior ability to redirect water away from wall assemblies. Common building codes such as the International Residential Code (IRC) recommend using corrosion-resistant materials for Z-flashing to comply with durability and safety standards. Compliance with these codes ensures effective water management and prevents structural damage, reducing the risk of mold and rot in exterior walls.
Choosing the Right Flashing for Your Project
Choosing the right flashing for your project depends on the building's design and exposure to weather elements. Z-flashing, with its stepped design, excels at directing water away from horizontal joints in siding materials, ensuring effective moisture management. Cap flashing offers broader coverage and works best for vertical surfaces or terminations, providing enhanced protection against water infiltration at critical junctions.

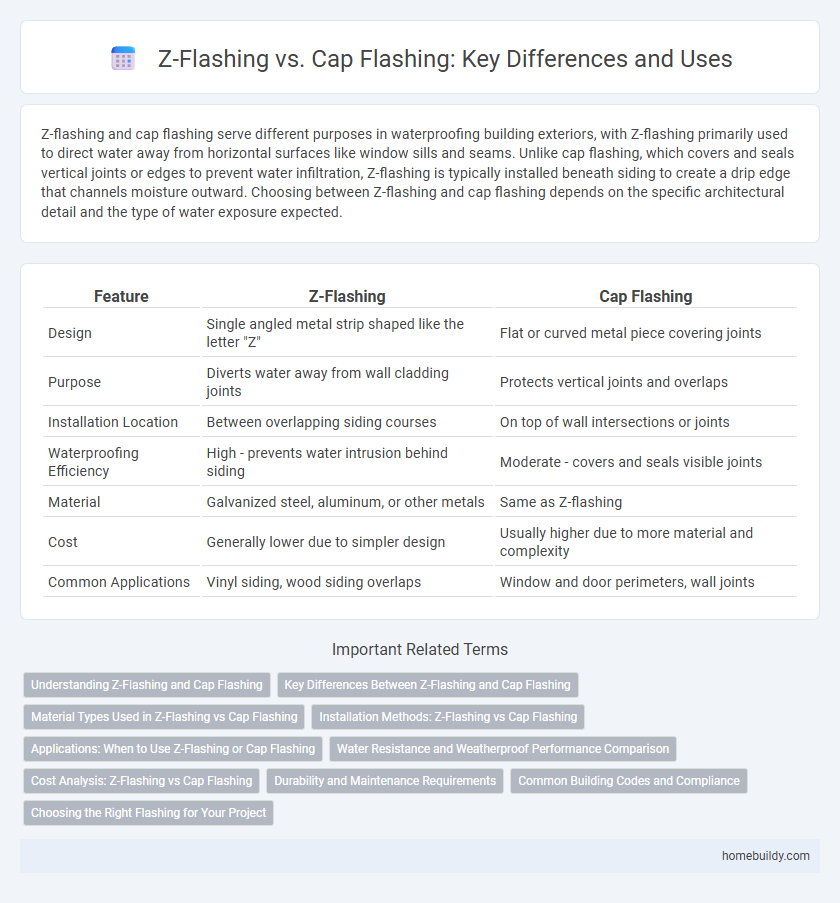

Z-flashing vs cap flashing Infographic
