homebuildy.com Z-flashing provides superior water drainage by directing moisture away from siding joints, preventing leaks more effectively than pan flashing. Unlike pan flashing, which relies on a containment design to catch and redirect water, Z-flashing's angled shape ensures continuous water shedding along exterior wall transitions. This makes Z-flashing particularly advantageous in areas prone to heavy rainfall or where siding meets windows and doors.
Table of Comparison
| Feature | Z-Flashing | Pan Flashing |
|---|---|---|
| Purpose | Prevents water infiltration at horizontal siding joints | Protects window and door openings from water damage |
| Installation Location | Installed behind siding at horizontal seams | Installed at window and door sills and jambs |
| Material | Metal or flexible flashing with a Z-shaped profile | Metal or flexible flashing shaped to direct water outward |
| Design | Z-shaped to shed water away from joints | Pan-shaped to collect and channel water away |
| Water Protection | Blocks water behind siding overlaps | Prevents water intrusion under sills and openings |
| Common Use | Horizontal lap siding seams | Window and door openings |
| Durability | High, depending on material (aluminum, vinyl) | High, designed for critical water entry points |
| Cost | Generally low to moderate | Moderate, due to complexity and critical area use |
Introduction to Flashing: Why Protect Openings?
Flashing serves as a critical barrier in building construction, preventing water infiltration around openings such as windows and doors. Z-flashing, shaped like the letter "Z," effectively directs water away from wall surfaces by overlapping siding panels, while pan flashing creates a tray-like barrier beneath window sills to catch and divert water. Proper installation of these flashing types reduces moisture damage, mold growth, and structural deterioration, ensuring building envelope integrity.
What Is Z-Flashing?
Z-flashing is a weather-resistant flashing technique used in construction to prevent water infiltration at horizontal seams, particularly around windows and siding. Unlike pan flashing, which creates a continuous barrier beneath window sills, Z-flashing forms a Z-shaped metal or vinyl strip that directs water away from the wall assembly. This method enhances moisture management by allowing water to shed effectively, reducing the risk of mold and structural damage.
What Is Pan Flashing?
Pan flashing is a type of flashing used around window and door openings to prevent water infiltration by directing moisture away from the structure. It consists of a pre-formed metal or plastic pan installed at the sill, creating a waterproof barrier that catches and drains water out, protecting the building envelope. Unlike Z-flashing, pan flashing provides a continuous, horizontal drainage plane specifically designed for the bottom edge of openings.
Key Differences Between Z-Flashing and Pan Flashing
Z-flashing is installed horizontally over sheathing joints to direct water away from wall openings, whereas pan flashing is typically applied around window and door openings to channel water externally. Key differences include their shapes--Z-flashing has a characteristic "Z" profile for overlapping layers, while pan flashing forms a continuous "pan" beneath openings. Z-flashing primarily prevents moisture infiltration at horizontal seams, while pan flashing protects vulnerable vertical interfaces to ensure comprehensive water management.
Installation Methods: Z-Flashing vs. Pan Flashing
Z-flashing involves installing long, continuous metal strips over horizontal building joints to direct water away from the structure, typically requiring precise overlapping and fastening to ensure effective drainage. Pan flashing, installed by creating a metal "pan" under windows or openings, captures and channels water outwards, demanding careful sealing at corners and integration with building wrap or sheathing for watertight performance. Both methods prioritize moisture protection but differ in application technique and suitability depending on wall design and exposure to water intrusion.
Material Choices for Z-Flashing and Pan Flashing
Z-flashing typically utilizes thin, flexible metal such as aluminum or galvanized steel, chosen for its durability and corrosion resistance, making it ideal for shedding water effectively along vertical joints. Pan flashing often employs materials like PVC or rubberized asphalt membranes, which provide a waterproof barrier suited for horizontal surfaces and window sills. Material selection for Z-flashing emphasizes rigidity and water diversion, whereas pan flashing prioritizes pliability and sealant compatibility to accommodate structural movements.
Water Management: Effectiveness Comparison
Z-flashing offers superior water management compared to pan flashing by directing water away from vulnerable joints, minimizing the risk of water infiltration. Its design channels water efficiently over sheathing and beneath cladding, reducing the likelihood of trapped moisture and potential rot. Pan flashing can catch and hold water, increasing the risk of leaks, whereas Z-flashing promotes quicker drainage and improved durability.
Cost Considerations of Z-Flashing and Pan Flashing
Z-flashing generally incurs higher material and labor costs compared to pan flashing due to its more complex installation process and the need for precise overlapping of siding materials. Pan flashing is typically less expensive as it is simpler to install and uses less material, making it a cost-effective option for water-resistant building applications. Budget-conscious projects often prefer pan flashing, but Z-flashing offers superior durability and weather protection that can justify the additional expense over time.
Best Applications: When to Use Z-Flashing or Pan Flashing
Z-flashing is best applied in vertical siding installations to prevent water infiltration at horizontal joints, especially where two pieces of cladding meet. Pan flashing is more suitable for areas around windows, doors, and other openings, effectively directing water away from framing and into drainage planes. Choosing Z-flashing or pan flashing depends on the specific location and function, with Z-flashing excelling in siding overlap protection and pan flashing providing precise waterproofing around penetrations.
Z-Flashing vs. Pan Flashing: Which Is Right for Your Project?
Z-flashing provides superior water diversion by directing moisture away from seams and joints with its angled profile, making it ideal for siding and window installations in areas prone to heavy rain. Pan flashing, designed to catch and channel water typically beneath window sills or at roof intersections, offers effective protection for horizontal surfaces but may require additional sealing in high-exposure zones. Selecting between Z-flashing and pan flashing depends on the specific project's exposure to moisture and the type of materials used, with Z-flashing favored for vertical applications and pan flashing suited for horizontal or recessed areas.

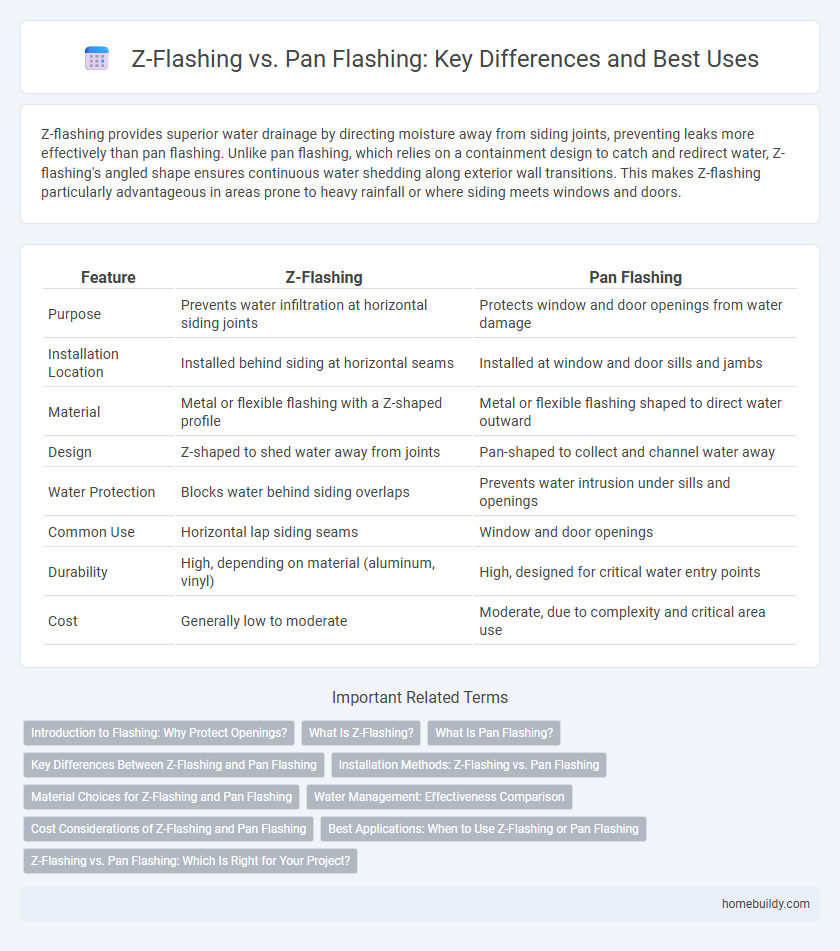

Z-flashing vs pan flashing Infographic
