homebuildy.com Angle iron lintels are typically made from steel L-shaped sections, offering strong support for smaller openings but may require additional reinforcement for heavier loads. Box lintels consist of a hollow rectangular steel section that provides enhanced strength and rigidity, making them suitable for wider spans and heavier structural demands. Choosing between angle iron and box lintels depends on load requirements, span size, and installation conditions, with box lintels generally favored for their superior load-bearing capacity.
Table of Comparison
| Feature | Angle Iron Lintel | Box Lintel |
|---|---|---|
| Material | Steel angle irons | Steel box sections |
| Strength | Moderate load-bearing capacity | High load-bearing capacity |
| Weight | Lighter, easier to handle | Heavier due to box structure |
| Flexural Rigidity | Lower, prone to bending under high loads | Higher, resists bending effectively |
| Corrosion Resistance | Requires protective coating | Better resistance, but still needs protection |
| Installation | Simple, suitable for smaller spans | Complex, preferred for longer spans |
| Cost | Generally lower cost | Higher cost due to material and fabrication |
| Application | Small to medium window openings | Medium to large window openings |
Introduction to Window Lintels
A window lintel is a structural horizontal support that spans the opening of a window, bearing the load from above to ensure stability. Angle iron lintels, made from steel L-shaped sections, offer easy installation and cost efficiency for light to moderate loads, whereas box lintels consist of hollow rectangular steel sections providing higher load-bearing capacity and enhanced durability for larger openings. Selecting between angle iron and box lintels depends on factors such as weight distribution, span length, and building design requirements.
What is an Angle Iron Lintel?
An angle iron lintel is a structural support made from L-shaped steel angles, commonly used to span openings such as windows and doors in masonry construction. Its design provides strong load-bearing capacity while minimizing material use, making it ideal for supporting brick or blockwork above an opening. Compared to box lintels, angle iron lintels are easier to install and cost-effective but may require additional protection against corrosion.
What is a Box Lintel?
A box lintel is a steel structural beam consisting of two parallel steel plates connected by vertical steel webs, forming a hollow rectangular section that provides high load-bearing capacity and resistance to bending. Unlike an angle iron lintel, which is made from L-shaped steel sections primarily suited for lighter loads, the box lintel's closed shape offers greater rigidity and strength, making it ideal for supporting heavy loads over wider openings such as doors and windows. Box lintels are commonly used in construction for durability, reducing deflection, and ensuring structural stability in masonry or concrete walls.
Material Composition: Angle Iron vs Box Lintel
Angle iron lintels are typically made from L-shaped steel, offering high tensile strength and flexibility for load distribution in small to medium spans. Box lintels consist of hollow rectangular steel sections that provide enhanced rigidity and resistance to bending, suitable for heavier loads and longer spans. The choice between angle iron and box lintels depends on structural requirements, with box lintels generally preferred for their superior load-bearing capacity and material efficiency.
Structural Strength and Load Bearing
Angle iron lintels provide robust structural strength through their L-shaped profile, offering excellent resistance to bending and shear forces in load-bearing walls. Box lintels, constructed as hollow rectangular sections, deliver superior load distribution and enhanced rigidity, making them ideal for heavy load applications and wider spans. When comparing both, box lintels generally outperform angle iron lintels in overall load-bearing capacity and stability due to their closed-section geometry.
Installation Process and Ease
Angle iron lintels offer simpler installation due to their lightweight and L-shaped profile, allowing for quick positioning and less support during placement. Box lintels, being heavier and forming a closed rectangular section, require more careful handling, alignment, and additional support to secure during installation. The ease of installation favors angle iron lintels, especially in projects with limited labor or time constraints, while box lintels provide enhanced structural rigidity at the cost of more complex installation.
Cost Comparison: Angle Iron Lintel vs Box Lintel
Angle iron lintels typically cost less than box lintels due to their simpler design and lower material usage, making them a budget-friendly choice for smaller openings and lighter loads. Box lintels, constructed from welded or fabricated steel sections, offer greater strength and durability but come at a higher price point, suitable for wider spans and heavier structural requirements. Project specifications, load demands, and long-term maintenance considerations heavily influence the cost-effectiveness of angle iron versus box lintels in construction.
Durability and Longevity
Angle iron lintels provide robust support with excellent resistance to bending, making them suitable for smaller spans in construction. Box lintels offer superior durability and longevity due to their closed-section design, which enhances strength and protects against corrosion and environmental wear. For projects requiring enhanced structural integrity and long-term performance, box lintels are often preferred over angle iron lintels.
Common Applications and Suitability
Angle iron lintels are commonly used in lightweight or small-scale masonry openings due to their ease of installation and cost-effectiveness, making them suitable for residential renovations or simple structural supports. Box lintels, featuring a hollow rectangular cross-section, provide greater load-bearing capacity and resistance to bending, ideal for larger openings or commercial constructions requiring enhanced strength and durability. Selection between angle iron and box lintels depends on the load requirements, span length, and structural demands of the building project.
Which Lintel is Best for Your Project?
Choosing the best lintel for your project depends on structural requirements and load distribution. Angle iron lintels are ideal for lighter loads and offer easy installation with cost efficiency, while box lintels provide superior strength and durability for heavy load-bearing walls and longer spans. Consider factors like span length, wall thickness, and budget to determine whether angle iron or box lintel best suits your construction needs.

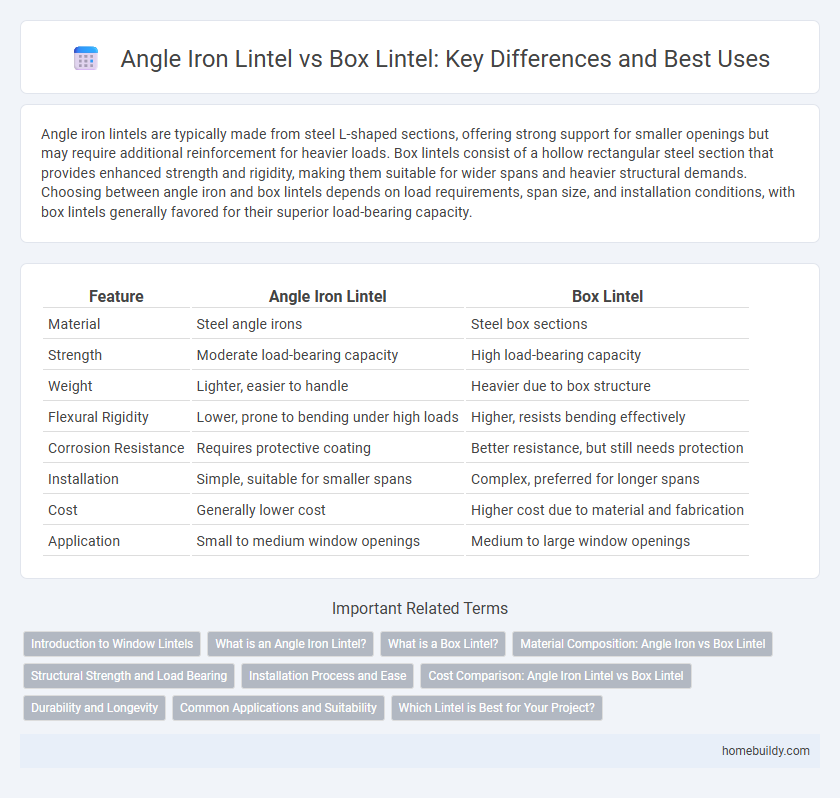

angle iron lintel vs box lintel Infographic
