homebuildy.com Wall ties and masonry ties serve similar structural purposes by connecting different parts of a building for stability, but wall ties are specifically designed to link the external wall to the internal framework, often in cavity wall constructions. Masonry ties typically refer to metal anchors embedded in mortar joints to secure masonry elements like brick or stone veneer to the structural backing. The choice between wall tie and masonry tie depends on the construction type, load requirements, and environmental conditions for optimal performance.
Table of Comparison
| Feature | Wall Tie | Masonry Tie |
|---|---|---|
| Definition | Metal connector securing masonry veneer to structural wall. | Metal fastener anchoring masonry units within structural framework. |
| Function | Provides lateral support to prevent wall separation. | Transfers loads between masonry and structure for stability. |
| Material | Usually stainless steel, galvanized steel. | Commonly stainless steel, galvanized steel, sometimes copper. |
| Installation Location | Between veneer and backup wall. | Within masonry joints or cavities. |
| Load Bearing | Handles tension and shear forces to maintain wall integrity. | Supports compressive and tensile loads within masonry. |
| Application | Used in cavity wall construction. | Used in composite masonry wall systems. |
| Corrosion Resistance | High corrosion resistance to increase durability. | Varies; often corrosion protected for longevity. |
Introduction to Wall Ties and Masonry Ties
Wall ties, essential components in cavity wall construction, securely connect the inner and outer walls to maintain structural integrity. Masonry ties, a subset of wall ties, specifically anchor masonry veneer to structural backup walls, providing stability against lateral forces. Both types ensure durability, moisture resistance, and load transfer between wall layers in modern building practices.
Defining Wall Ties: Functions and Types
Wall ties, essential components in cavity wall construction, function to connect the inner and outer masonry layers, ensuring structural stability and load transfer. They come in various types, including stainless steel strips, wire ties, and adjustable ties, each designed for specific wall configurations and environmental conditions. Masonry ties, often synonymous with wall ties, specifically refer to ties that secure masonry veneers to structural backup walls, emphasizing their role in preventing wall separation and enhancing durability.
Understanding Masonry Ties: Key Roles and Variations
Masonry ties serve as critical connectors between the outer masonry veneer and structural backup walls, providing stability and resistance to lateral forces. Wall ties, a type of masonry tie, come in various materials such as stainless steel or galvanized steel, ensuring durability against corrosion and environmental stresses. Proper selection and installation of masonry ties enhance the integrity of cavity wall systems by preventing separation and distributing loads effectively.
Wall Tie vs Masonry Tie: Core Differences
Wall ties and masonry ties serve the essential role of securing a wall's outer layer to its supporting structure but differ in design and application. Wall ties typically refer to metal strips or rods used in cavity wall construction to connect the outer brickwork to the inner structural wall, ensuring stability and load transfer. Masonry ties, often broader in scope, include various types of connectors designed specifically for attaching masonry veneers to framing systems, emphasizing compatibility with diverse construction materials and enhanced corrosion resistance.
Materials Used: Wall Ties vs Masonry Ties
Wall ties are commonly made from stainless steel or galvanized steel to resist corrosion and ensure durability in cavity wall construction. Masonry ties often utilize carbon steel with protective coatings or stainless steel to connect brick or stone veneer to structural backup walls. Material selection for both wall ties and masonry ties focuses on strength, corrosion resistance, and compatibility with building envelope requirements.
Installation Methods Compared
Wall ties are typically installed by embedding them into mortar joints between bricks or blocks, ensuring a secure mechanical interlock. Masonry ties often feature adjustable or proprietary fastening systems that allow attachment directly to the structural framing before being embedded in the masonry veneer. Installation methods for wall ties focus on proper alignment within mortar beds, while masonry ties emphasize flexible attachment points for accommodating structural movement.
Performance and Durability Analysis
Wall ties and masonry ties serve critical roles in cavity wall construction, with performance differences impacting structural integrity and moisture resistance. Wall ties, typically made from galvanized steel or stainless steel, offer superior corrosion resistance and tensile strength, enhancing long-term durability in varied environmental conditions. Masonry ties, often more rigid and designed for lateral support, may exhibit reduced flexibility and increased susceptibility to corrosion, affecting overall wall stability and lifespan under dynamic load or moisture exposure.
Building Codes and Standards for Ties
Building codes such as the International Building Code (IBC) specify rigorous requirements for wall ties and masonry ties to ensure structural stability and lateral load resistance. Wall ties must comply with standards like ASTM A82 for wire strength and corrosion resistance, while masonry ties often follow ASTM A153 for galvanization or equivalent corrosion protection. Proper adherence to these codes ensures safe connections between wythes in cavity walls, mitigating risks of wall separation and enhancing the durability of masonry structures.
Common Applications: When to Use Each Type
Wall ties are primarily used in cavity wall construction to connect inner and outer masonry walls, providing structural stability and resistance against wind loads. Masonry ties are commonly applied in veneer walls to secure brick or stone facing to wood or steel framing, ensuring proper support and load transfer. Use wall ties in traditional cavity walls where two masonry wythes require anchoring, while masonry ties are ideal for attaching veneer materials to framed structures in residential and commercial buildings.
Choosing the Right Tie: Factors to Consider
Choosing the right wall tie depends on factors such as the type of masonry wall, load requirements, and environmental conditions, ensuring structural stability and durability. Wall ties are typically selected based on their material composition--stainless steel or galvanized steel--corrosion resistance, and tie spacing, which varies with wall thickness and height. Masonry ties must also comply with local building codes and consider thermal expansion to prevent wall separation or moisture penetration.

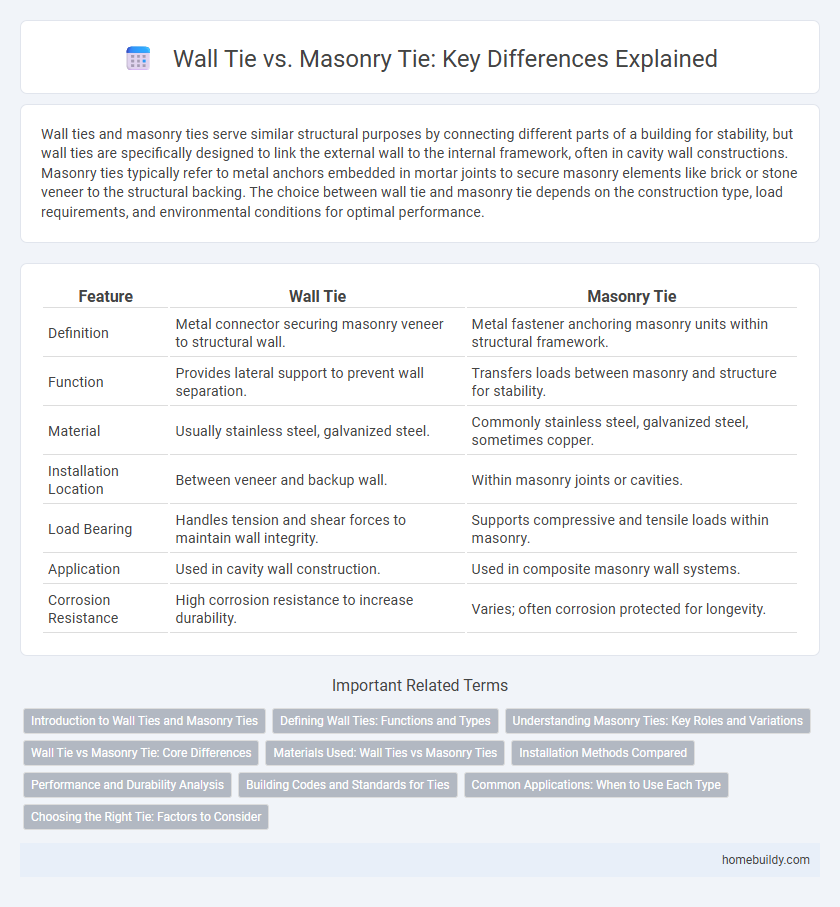

Wall tie vs Masonry tie Infographic
