homebuildy.com Wall ties are primarily used to connect masonry walls to provide structural stability and prevent lateral movement, while frame ties link timber or metal framing components to enhance the overall rigidity of the structure. Wall ties are embedded within the mortar joints of brickwork, ensuring the outer wall remains securely attached to the inner wall or cavity. Frame ties, on the other hand, are fastened to framing members, supporting load distribution and resisting forces such as wind or seismic activity.
Table of Comparison
| Feature | Wall Tie | Frame Tie |
|---|---|---|
| Primary Use | Connects masonry outer walls to inner walls or insulation | Secures structural frames to walls or floors |
| Material | Stainless steel or galvanized metal | Steel or metal alloy, often stronger gauge |
| Structural Role | Prevents wall separation and improves stability | Provides rigid frame anchoring and load transfer |
| Installation | Embedded in masonry during wall construction | Fastened to framing and secured to wall or floor |
| Load Type | Tensile loads from opposing walls | Shear and tensile loads on structural frames |
| Common Applications | Brick veneer, cavity walls | Wood or steel frame construction |
Understanding Wall Tie and Frame Tie: Key Differences
Wall ties secure masonry walls to structural frames, ensuring stability and load distribution, while frame ties specifically connect steel or timber frames to surrounding materials. Wall ties typically resist lateral forces and prevent wall separation, whereas frame ties focus on maintaining the integrity of the frame assembly under stress. Understanding these differences helps optimize building performance and structural safety during construction and renovations.
Structural Roles: Wall Tie vs Frame Tie
Wall ties provide lateral stability by connecting masonry walls to structural elements, preventing outward bowing and enhancing overall wall integrity. Frame ties secure framing members together, maintaining alignment and distributing loads within the structural framework. While wall ties primarily reinforce wall assemblies, frame ties focus on stabilizing the skeletal structure of the building.
Material Composition: Wall Tie vs Frame Tie
Wall ties are typically made of galvanized steel or stainless steel to resist corrosion and provide structural stability in masonry walls. Frame ties, by contrast, often use lighter metals or composite materials to accommodate the dynamic movement between the frame and cladding systems. The material composition directly affects durability, flexibility, and the overall performance of wall and frame tie connections in building construction.
Installation Methods Compared
Wall ties are typically installed by embedding them directly into mortar joints during bricklaying, ensuring structural stability and load distribution between the external wall and internal frame. Frame ties, in contrast, are mechanically fixed to the frame before being incorporated into the wall construction, allowing easier adjustment and enhanced alignment with steel or timber framing systems. Installation methods for wall ties involve more integration with masonry work, whereas frame ties focus on precision attachment to framing members for improved adaptability in complex building assemblies.
Strength and Durability Analysis
Wall ties exhibit superior strength and durability compared to frame ties due to their robust design, enabling effective load transfer between masonry walls and structural frames. High tensile strength galvanized steel wall ties resist corrosion and maintain integrity under stress, ensuring long-term stability in various environmental conditions. In contrast, frame ties, while easier to install, often lack the same level of mechanical bonding and corrosion resistance, making them less durable in critical structural applications.
Cost Implications: Wall Tie vs Frame Tie
Wall ties typically incur lower installation and material costs compared to frame ties due to simpler design and less labor-intensive application. Frame ties often require specialized components and skilled labor, increasing the overall project budget. Choosing wall ties can result in significant cost savings for masonry structures without compromising stability.
Common Applications in Construction
Wall ties are primarily used to secure masonry walls to structural frameworks, ensuring lateral stability and load distribution in brick and stone veneer construction. Frame ties, often employed in timber or steel framing systems, connect wall components to the building frame, enhancing resistance to wind and seismic forces. Both ties are essential in commercial and residential buildings, with wall ties favored in cavity wall construction and frame ties commonly applied in light-gauge steel and wood frame assemblies.
Regulatory Standards and Compliance
Wall ties must comply with ASTM A82 or BS EN 845-1 standards to ensure tensile strength and corrosion resistance, whereas frame ties often follow ASTM A123 or BS EN ISO 1461 for galvanization and structural integration. Building codes such as the International Building Code (IBC) and Eurocode 6 specify distinct performance criteria for wall ties in masonry versus frame ties in timber or steel frameworks to guarantee stability and longevity. Compliance with these regulatory standards ensures both wall and frame ties meet safety, durability, and fire resistance requirements critical for structural integrity.
Maintenance and Longevity Factors
Wall ties, typically made from stainless steel or galvanized materials, offer superior corrosion resistance compared to frame ties, significantly reducing maintenance needs over time. Frame ties, often composed of less durable metals, may require more frequent inspections and replacements due to their susceptibility to rust and structural weakening. Choosing high-quality wall ties enhances the longevity of masonry cavity walls, minimizing repair costs and extending the building's structural integrity.
Choosing the Right Tie for Your Project
Wall ties provide strong lateral support by linking masonry to structural walls, ideal for load-bearing constructions requiring durability and stability. Frame ties excel in connecting metal or timber frames to external walls, offering flexibility and ease of installation in lighter or modular building projects. Selecting the right tie depends on the material compatibility, load requirements, and environmental conditions of your construction site.

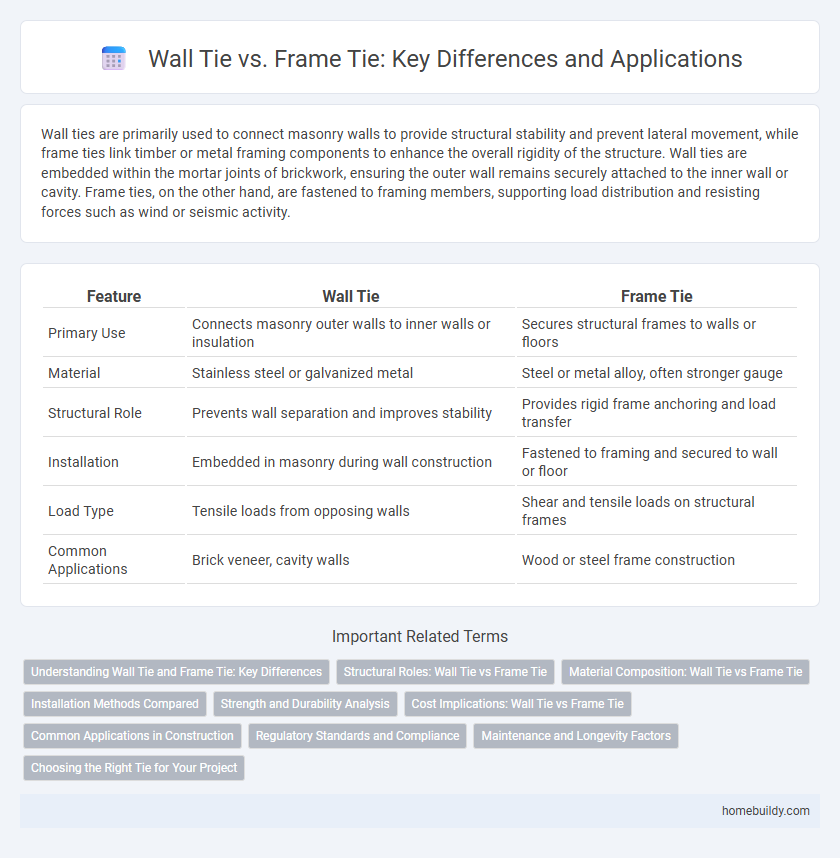

Wall tie vs Frame tie Infographic
