homebuildy.com A wall plate is a horizontal timber mounted directly on top of a wall to support the roof structure or floor joists, providing stability and load distribution. A ledger board, attached to an existing wall, serves as a fastening point for floor joists or decking, often used in deck construction to transfer loads to the building frame. Understanding the differences between a wall plate and a ledger board is essential for proper framing and structural integrity in building projects.
Table of Comparison
| Feature | Wall Plate | Ledger Board |
|---|---|---|
| Purpose | Supports roof rafters by distributing load on a wall | Attaches floor joists to an existing wall or structure |
| Installation Position | Fixed on top of exterior or interior walls | Mounted horizontally on an existing wall or foundation |
| Material | Typically solid lumber or engineered wood | Usually pressure-treated lumber for weather resistance |
| Load Type | Vertical roof load distribution | Horizontal floor load support |
| Common Use | Roof framing in residential and commercial buildings | Deck construction and floor framing attachments |
| Durability | Depends on framing material and environmental exposure | Enhanced by pressure treating and fastening methods |
Introduction to Wall Plates and Ledger Boards
Wall plates serve as horizontal framing members that distribute loads from roof trusses or rafters evenly across vertical studs, providing structural stability in building construction. Ledger boards, in contrast, are attached to an existing wall to support floor joists or decking, transferring loads directly to the building's framework. Both components are essential in wood framing systems but differ significantly in function and installation location within a structure.
Structural Roles: Wall Plate vs Ledger Board
Wall plates serve as horizontal framing members that distribute roof and floor loads evenly across wall studs, ensuring structural stability and alignment. Ledger boards act as attachment points for floor joists or decks, transferring loads back into the building's frame and providing critical support for cantilevered or exterior structures. Understanding the distinct load-bearing functions of wall plates and ledger boards is essential for proper framing and long-term durability of both interior and exterior constructions.
Materials Used for Wall Plates and Ledger Boards
Wall plates are typically made from pressure-treated lumber, plywood, or engineered wood products designed to distribute load and provide a stable base for wall framing. Ledger boards commonly consist of pressure-treated or naturally decay-resistant wood to withstand outdoor exposure and support structural connections for decks or stairways. The choice of materials for both wall plates and ledger boards emphasizes durability, resistance to moisture, and load-bearing capacity specific to their structural roles.
Installation Process: Wall Plate vs Ledger Board
The installation process for a wall plate involves anchoring it directly to the building's structural framing to provide a secure base for roof trusses or floor joists, typically using bolts or nails spaced according to engineering specifications. In contrast, a ledger board requires precise attachment to an existing wall, often with lag screws and flashing to prevent water infiltration, as it supports decks or cantilevered structures while transferring loads to the primary building frame. Proper alignment, fastening methods, and adherence to local building codes are critical for both wall plates and ledger boards to ensure structural integrity and safety.
Cost Comparison: Wall Plate vs Ledger Board
Wall plates generally cost less than ledger boards due to simpler materials and installation processes, making them a budget-friendly choice for framing. Ledger boards require more robust, treated lumber and hardware to ensure structural support, which increases overall expenses. Evaluating specific project needs alongside these cost differences helps optimize budget allocation for decking or framing projects.
Load-Bearing Capacity Differences
Wall plates distribute roof and floor loads evenly across the supporting framework, ensuring structural stability in both residential and commercial buildings. Ledger boards, attached directly to existing structures, primarily support decks and exterior additions but have limited load-bearing capacity compared to wall plates. The increased surface area and integration of wall plates enhance their ability to bear heavy vertical loads, making them essential for foundational support.
Wall Plate vs Ledger Board: Common Applications
Wall plates commonly serve as a horizontal framing member that supports roof rafters or ceiling joists, often found in residential wall construction to distribute loads evenly across studs. Ledger boards are typically used for attaching decks or balconies to an existing structure, providing a strong anchor point for floor joists and ensuring structural stability. While wall plates primarily act as load distributors within wall framing, ledger boards function as connection points between separate structural elements in outdoor construction projects.
Durability and Maintenance Considerations
Wall plates typically offer greater durability as they are designed to evenly distribute structural loads across framing members, reducing stress concentrations that can lead to material fatigue. Ledger boards, while commonly used for attaching decks or other exterior structures, require frequent inspection and maintenance to prevent moisture penetration and ensure secure fasteners. Choosing wall plates can minimize long-term maintenance needs due to their integrated placement within wall framing compared to exposed ledger boards.
Building Code Requirements
Wall plates and ledger boards serve distinct functions in construction, with wall plates typically used to distribute load from roof trusses or joists to studs, while ledger boards provide critical support for deck attachments. Building code requirements mandate that ledger boards be securely fastened to the primary structure using approved fasteners and flashing to prevent water intrusion and structural failure. Codes such as the International Residential Code (IRC) specify minimum fastener sizes, spacing, and acceptable ledger board materials to ensure safety and durability in load-bearing applications.
Choosing Between Wall Plate and Ledger Board: Key Factors
Choosing between a wall plate and a ledger board depends on the structural requirements and installation environment. Wall plates provide a stable base for roof framing by attaching directly to wall tops, while ledger boards are essential for securing decks to existing structures by anchoring to exterior walls. Evaluating load capacity, moisture exposure, and attachment methods ensures the optimal choice for durability and safety in construction projects.

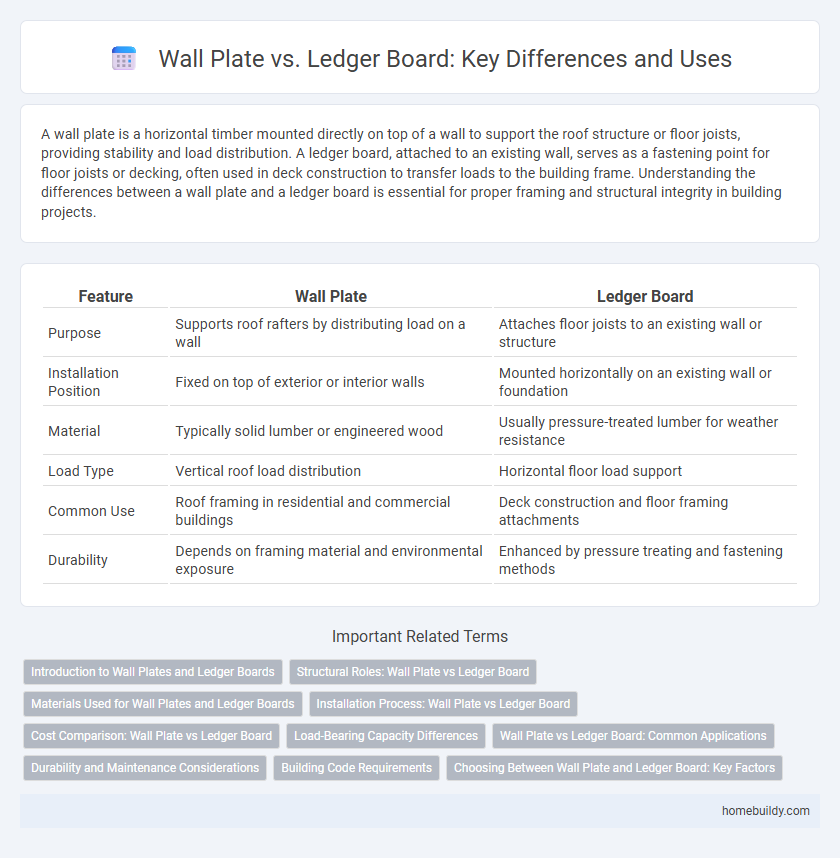

Wall plate vs Ledger board Infographic
