homebuildy.com Tie bars provide tensile reinforcement by connecting structural elements, preventing separation and enhancing stability under lateral forces. Shear walls resist lateral loads through their rigid vertical plane, effectively transferring forces to the foundation and reducing building sway. Both elements are critical in earthquake-resistant design, but tie bars focus on tension control while shear walls handle shear stress and lateral load resistance.
Table of Comparison
| Feature | Tie Bar | Shear Wall |
|---|---|---|
| Function | Connects structural elements to resist tension forces | Vertical wall element designed to resist lateral loads |
| Primary Use | Prevents separation and improves stability between columns and beams | Provides lateral stiffness and strength against wind and seismic forces |
| Load Resistance | Tensile forces | Lateral shear and bending forces |
| Material | Steel bars | Reinforced concrete or masonry |
| Installation | Placed between structural members; simpler and less intrusive | Constructed as part of the building's core or exterior walls |
| Effect on Space | Minimal impact on usable floor area | Consumes significant floor space |
| Cost | Lower cost; minimal material and labor | Higher cost; extensive materials and construction time |
| Flexibility | Allows some structural movement | Rigid and limits building flexibility |
Introduction to Tie Bars and Shear Walls
Tie bars are steel rods used in construction to provide tensile strength and resistance against lateral forces by connecting structural elements, effectively enhancing overall stability. Shear walls are vertical, reinforced concrete or masonry panels designed to resist shear forces and prevent lateral displacement caused by wind or seismic activity. Comparing their functions, tie bars primarily offer tensile reinforcement, while shear walls serve as rigid diaphragms to absorb and transfer lateral loads.
Structural Purpose: Tie Bar vs Shear Wall
Tie bars primarily serve to connect and stabilize concrete or masonry elements by resisting tensile forces and preventing separation under load, enhancing structural integrity in areas prone to cracking or movement. Shear walls function as vertical structural elements designed to resist lateral forces such as wind or seismic activity, providing significant stiffness and strength to prevent building sway and collapse. While tie bars address local tensile stabilization, shear walls ensure overall lateral load resistance and building stability.
Design Principles of Tie Bars and Shear Walls
Tie bars and shear walls both enhance structural stability but differ in their design principles. Tie bars are designed primarily to resist tensile forces and maintain alignment between structural elements, preventing lateral displacement by linking walls or frames. Shear walls function as vertical cantilever elements engineered to resist in-plane lateral forces through shear and bending, providing stiffness and strength to counteract wind and seismic loads.
Key Differences Between Tie Bars and Shear Walls
Tie bars primarily serve as tension members that connect columns and beams to resist tensile forces, enhancing structural stability by preventing separation. Shear walls function as vertical elements that resist lateral forces such as wind and seismic loads, providing rigidity and shear resistance to the building frame. While tie bars manage tensile stresses within the framework, shear walls offer comprehensive lateral load resistance, making their roles distinct yet complementary in structural engineering.
Material Requirements: Tie Bar vs Shear Wall
Tie bars require significantly less concrete and steel reinforcement compared to shear walls, making them a material-efficient solution for lateral load resistance. Shear walls demand a larger volume of high-strength concrete and dense rebar placement to achieve comparable rigidity and load-bearing capacity. The reduced material usage in tie bars results in lower construction costs and faster installation times, especially in seismic zones.
Load Resistance Capabilities Comparison
Tie bars provide tensile load resistance by linking structural elements and distributing lateral forces, making them effective in managing tension and preventing structural separation. Shear walls resist lateral loads primarily through their stiffness and shear strength, offering superior performance in bearing and transferring horizontal forces during events like earthquakes and high winds. Compared to tie bars, shear walls deliver enhanced load resistance capabilities against lateral stresses, contributing significantly to overall structural stability.
Installation Methods: Tie Bar and Shear Wall
Tie bar installation involves embedding steel bars into concrete joints to provide tensile reinforcement, ensuring structural integrity during stress. Shear wall construction requires assembling prefabricated panels or casting reinforced concrete walls that resist lateral forces and enhance building stiffness. Both methods demand precise alignment and anchoring but differ in material application and installation complexity.
Cost Implications of Tie Bars and Shear Walls
Tie bars generally offer a lower initial cost compared to shear walls due to simpler materials and installation processes. Shear walls involve higher expenses from reinforced concrete work and extended labor requirements, raising overall project costs. However, tie bars may require more frequent maintenance, potentially impacting long-term cost efficiency compared to the durability of shear walls.
Suitability for Various Building Types
Tie bars are ideal for low to mid-rise buildings where lateral loads are moderate and architectural flexibility is important. Shear walls offer superior rigidity and are better suited for high-rise structures and buildings in seismic zones requiring enhanced lateral resistance. The choice depends on building height, load demands, and architectural design preferences.
Choosing Between Tie Bar and Shear Wall
Choosing between a tie bar and a shear wall depends on structural requirements and space constraints. Tie bars provide tension support in reinforced concrete structures, enhancing flexural performance without occupying significant space, while shear walls offer robust lateral load resistance and improved overall building stiffness. Engineers must evaluate load conditions, architectural design, and cost-effectiveness to determine the optimal solution for seismic and wind load management.

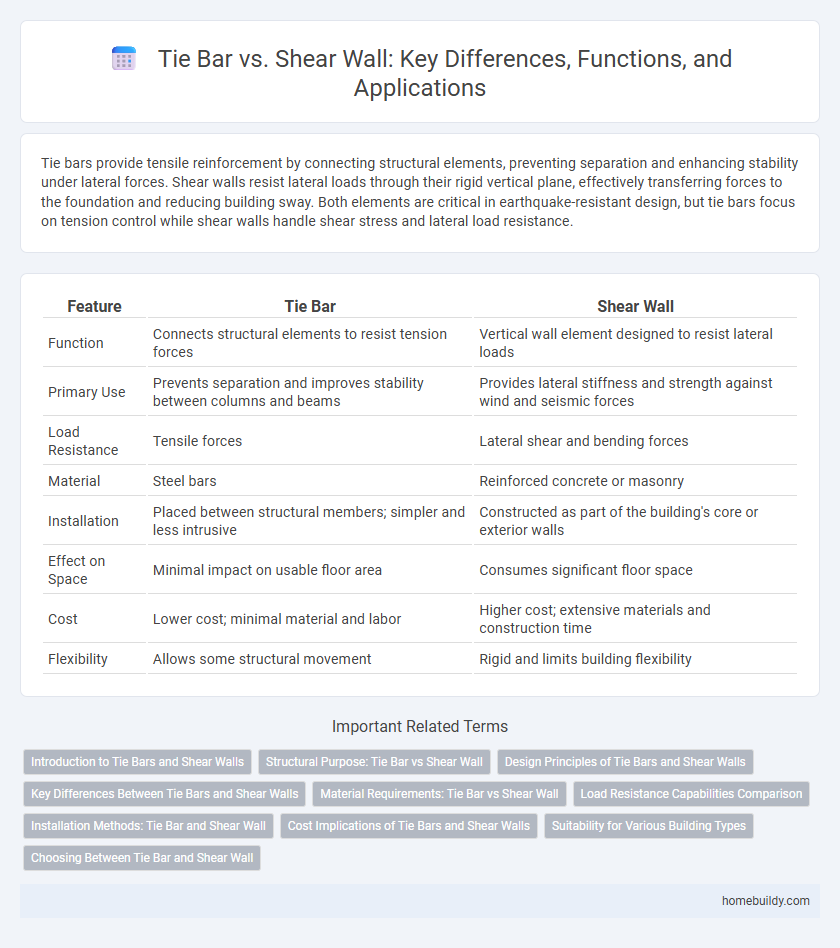

Tie bar vs Shear wall Infographic
