homebuildy.com Tie bars provide rigid, structural support by resisting compression and maintaining alignment between components, commonly used in construction to stabilize walls or beams. Tension cables are flexible elements designed to carry tensile loads, often utilized in bridges and suspension structures to absorb and distribute forces efficiently. While tie bars prevent movement through stiffness, tension cables allow controlled flexibility under load, offering complementary solutions for different engineering needs.
Table of Comparison
| Feature | Tie Bar | Tension Cable |
|---|---|---|
| Material | Steel or reinforced metal | High-strength steel cables |
| Function | Resists compressive forces, maintains structural alignment | Handles tensile forces, prevents structural separation |
| Installation | Fixed rigid connection | Flexible, adjustable tension |
| Common Uses | Bracing walls, columns, beams | Suspension bridges, roof trusses, guy wires |
| Load Type | Compression and tension support | Primarily tension support |
| Adjustability | Minimal adjustment post-installation | High adjustability with turnbuckles |
| Durability | High, rigid and corrosion-resistant | Durable but requires regular tension checks |
| Cost | Moderate | Generally lower cost but varies by cable type |
Introduction to Tie Bar and Tension Cable Systems
Tie bars are rigid structural elements designed to resist tension forces and maintain the integrity of frameworks, commonly used in concrete and steel construction. Tension cable systems consist of flexible, high-strength cables that provide tensile support and are often employed in bridge suspension and architectural applications. Understanding the differences between tie bars and tension cables is essential for selecting appropriate materials based on load requirements, flexibility, and installation conditions.
Key Differences Between Tie Bars and Tension Cables
Tie bars are rigid structural elements designed to resist tensile forces and maintain alignment, commonly made of steel or reinforced concrete, offering high stiffness and minimal elongation under load. Tension cables, typically composed of steel strands or wires, provide flexibility and can handle dynamic loads but exhibit significant elongation compared to tie bars. The key differences lie in material composition, rigidity, load response, and installation flexibility, with tie bars suited for fixed positioning and tension cables ideal for adjustable tensioning in structures like bridges and towers.
Structural Applications: When to Use Tie Bars vs Tension Cables
Tie bars are ideal for structural applications requiring rigid connections and limited flexibility, such as in masonry walls and concrete frames where compression forces dominate. Tension cables excel in scenarios needing high tensile strength and adaptability to dynamic loads, commonly used in suspension bridges and tensile roof structures. Choosing between tie bars and tension cables depends on load type, required stiffness, and environmental conditions influencing structural performance.
Material Composition and Durability Comparison
Tie bars are typically fabricated from high-strength steel alloy, providing excellent tensile strength and resistance to deformation, which enhances their durability in structural applications. In contrast, tension cables are often made from bundled galvanized or stainless steel strands, offering flexibility and high load capacity but potentially lower resistance to abrasion and corrosion over time. The solid, rigid composition of tie bars usually results in longer service life under static loads compared to the more flexible, corrosion-prone tension cables used in dynamic or suspension systems.
Installation Process: Tie Bars vs Tension Cables
Tie bars are typically easier to install than tension cables due to their rigid, straight design that allows for quick alignment and consistent load transfer. Tension cables require precise tensioning with specialized equipment to achieve the correct preload, adding complexity and time to the installation process. The simpler installation of tie bars often leads to reduced labor costs and faster project completion in structural applications.
Load-Bearing Capacity: Strength Analysis
Tie bars provide superior load-bearing capacity compared to tension cables due to their rigid construction and ability to resist both compressive and tensile forces effectively. Unlike tension cables, which primarily handle tensile loads, tie bars support structural integrity by distributing stress evenly across connection points. This enhanced strength analysis highlights tie bars as more reliable components in applications requiring high load resistance and structural stability.
Maintenance and Longevity Considerations
Tie bars typically require less maintenance than tension cables due to their rigid metal construction, which is less susceptible to stretching or corrosion. Tension cables may need frequent inspections and adjustments to maintain proper tension and prevent wear, increasing overall upkeep costs. The longevity of tie bars generally exceeds that of tension cables, as their solid design resists deformation and environmental damage more effectively.
Cost Efficiency: Tie Bar vs Tension Cable Projects
Tie bars generally offer higher cost efficiency in projects due to their lower material and installation expenses compared to tension cables. Tension cables require specialized anchoring systems and more complex labor, increasing overall project costs. Choosing tie bars can significantly reduce budgeting needs in structural reinforcement and load-bearing applications without compromising performance.
Design Flexibility and Aesthetics
Tie bars offer greater design flexibility compared to tension cables due to their ability to be custom-fabricated in various shapes and sizes, accommodating unique architectural requirements. Their solid construction provides a clean, streamlined appearance that enhances aesthetic appeal in modern structural designs. In contrast, tension cables, while slim and minimal, have limited customization options and can introduce visual complexity with visible fittings and tensioning devices.
Choosing the Right System: Factors to Consider
Selecting between a tie bar and a tension cable depends on load requirements, installation environment, and structural compatibility. Tie bars offer rigid support ideal for heavy loads and minimal deflection, while tension cables provide flexibility and ease of adjustment, suitable for dynamic or seismic conditions. Evaluating factors like material strength, corrosion resistance, and maintenance needs ensures optimal performance and longevity of the chosen system.

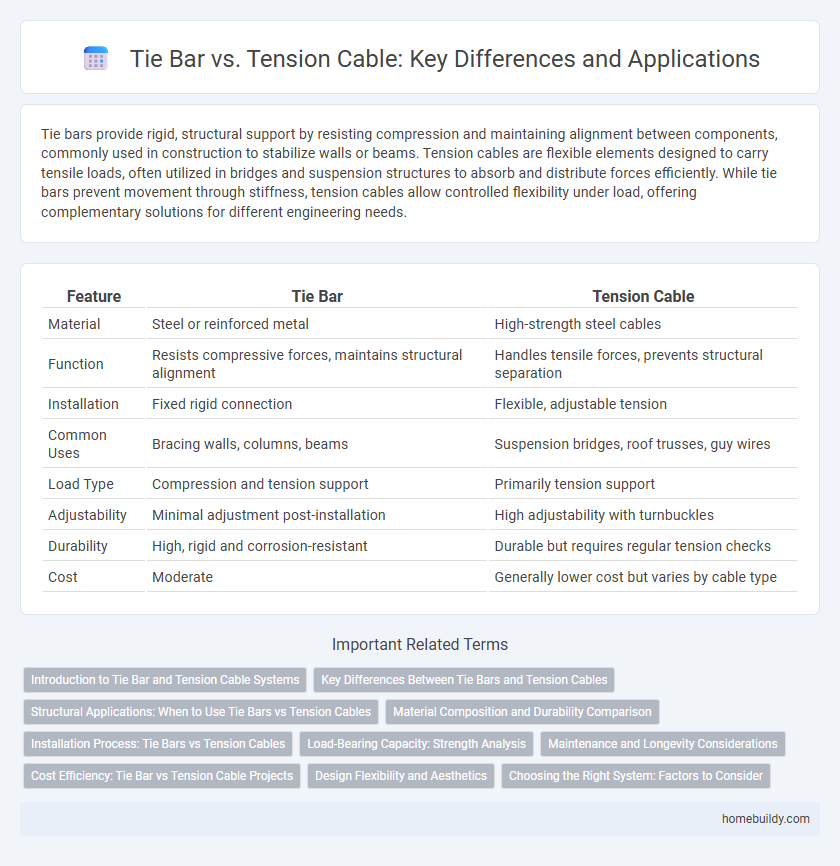

Tie bar vs Tension cable Infographic
