homebuildy.com Strap ties provide flexible support and are typically easier to install than seismic anchors, making them ideal for reinforcing connections in wood framing. Unlike seismic anchors, which are designed to resist intense lateral forces during earthquakes by anchoring structures to foundations, strap ties primarily enhance structural integrity by tying components together. Choosing between a strap tie and a seismic anchor depends on the specific load requirements and the level of seismic resistance needed for a building.
Table of Comparison
| Feature | Strap Tie | Seismic Anchor |
|---|---|---|
| Primary Use | Connects framing members to resist uplift and lateral loads | Secures structure to foundation for seismic load resistance |
| Material | Galvanized steel strap | High-strength steel with anchor bolt |
| Installation | Nails or screws over framing members | Bolted into concrete foundation |
| Load Resistance | Moderate uplift and lateral loads | High seismic and lateral load capacity |
| Flexibility | Flexible connection for various framing sizes | Rigid, fixed connection to foundation |
| Typical Applications | Wall framing, roof trusses, floor joists | Seismic retrofit, foundation anchoring |
| Cost | Lower cost, easy to install | Higher cost, professional installation required |
Strap Tie vs Seismic Anchor: Key Differences
Strap ties and seismic anchors serve distinct roles in structural reinforcement, with strap ties primarily providing lateral support by connecting framing members, while seismic anchors offer strong resistance against uplift and sliding forces during earthquakes. Strap ties are typically flexible metal straps that secure wood or metal components together, enhancing overall stability, whereas seismic anchors are heavy-duty fasteners embedded into concrete or masonry to anchor structures firmly to their foundations. The choice between strap ties and seismic anchors depends on the specific load requirements and seismic design criteria of the building project.
Understanding the Functions of Strap Ties and Seismic Anchors
Strap ties provide lateral support by connecting framing members to resist uplift and racking forces, ensuring structural integrity during seismic events. Seismic anchors secure structural elements directly to the foundation, minimizing displacement caused by ground motion. Understanding the complementary roles of strap ties and seismic anchors is crucial for effective seismic-resistant construction design.
Material Strength and Durability Comparison
Strap ties typically use galvanized steel, offering high tensile strength and corrosion resistance suitable for various environmental conditions. Seismic anchors are often made from stainless steel or carbon steel with specialized coatings, providing enhanced durability and superior resistance to seismic forces and extreme stress. When comparing material strength and durability, seismic anchors generally outperform strap ties due to their engineered design for dynamic loads and prolonged structural integrity.
Installation Process: Strap Tie vs Seismic Anchor
The installation process of strap ties involves wrapping the strap around structural members and securing it with pre-installed holes or screws, offering a straightforward and quick method. Seismic anchors require drilling into concrete or masonry substrates and setting the anchor with epoxy or expansion mechanisms, demanding more specialized tools and time. Strap ties provide ease of adjustment and repositioning compared to the more permanent and labor-intensive installation of seismic anchors.
Performance in Earthquake-Prone Areas
Strap ties offer superior flexibility and load distribution compared to seismic anchors, enhancing structural resilience during earthquakes. Their ability to accommodate wood shrinkage and expansion reduces the risk of joint failure under seismic stress. Seismic anchors provide strong point connections but lack the adaptability of strap ties, making strap ties more effective for maintaining integrity in earthquake-prone areas.
Cost Analysis: Strap Ties Versus Seismic Anchors
Strap ties typically offer a lower upfront cost compared to seismic anchors due to simpler materials and installation processes, making them a budget-friendly option for securing structural components. Seismic anchors, while more expensive initially, provide enhanced resistance to dynamic forces during earthquakes, potentially reducing long-term repair costs after seismic events. Evaluating the total cost of ownership requires balancing the initial expenditure of strap ties with the durability and safety benefits of seismic anchors in high-risk zones.
Building Code Requirements for Strap Ties and Seismic Anchors
Building codes such as the International Building Code (IBC) and ASCE 7 specify distinct requirements for strap ties and seismic anchors to ensure structural stability during seismic events. Strap ties must comply with specified load capacities, corrosion resistance, and fastening methods to prevent roof uplift and lateral displacement. Seismic anchors require precise installation parameters, including embedment depth and concrete strength criteria, to resist seismic forces effectively and meet design load conditions mandated by building codes.
Best Applications: When to Use Strap Tie or Seismic Anchor
Strap ties are best suited for securing framing components in light to moderate seismic zones, offering flexibility and ease of installation for wood structures. Seismic anchors provide superior strength and stability in high seismic risk areas, effectively transferring lateral loads to foundations. Choosing between strap ties and seismic anchors depends on the building's seismic design category and the structural load requirements.
Maintenance and Longevity Considerations
Strap ties require minimal maintenance due to their corrosion-resistant coatings and flexible design, which reduce wear and the need for frequent inspections compared to seismic anchors. Seismic anchors often demand regular evaluations to ensure bolt integrity and anchor embedment, affecting long-term durability. The longevity of strap ties is enhanced by their ability to accommodate structural movements without compromising performance, making them a cost-effective solution in seismic-prone areas.
Choosing the Right Solution: Expert Recommendations
Strap ties provide flexible lateral reinforcement in wood framing, ideal for distributing loads evenly across connections, while seismic anchors offer robust, localized resistance against intense seismic forces by securing structural elements directly to concrete or steel substrates. Experts recommend selecting strap ties when enhancing overall frame integrity and accommodating slight movements, whereas seismic anchors should be prioritized in high seismic risk zones requiring maximal anchorage strength. Detailed structural assessments and local building codes guide the optimal choice, ensuring compliance and safety tailored to specific load conditions and seismic exposure.

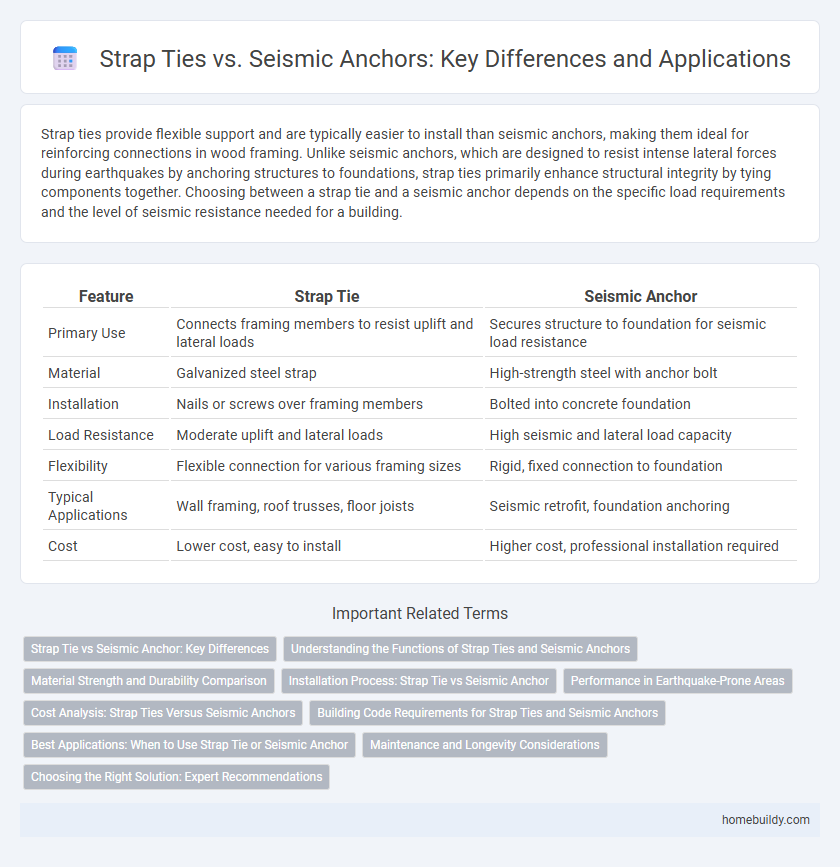

Strap tie vs seismic anchor Infographic
